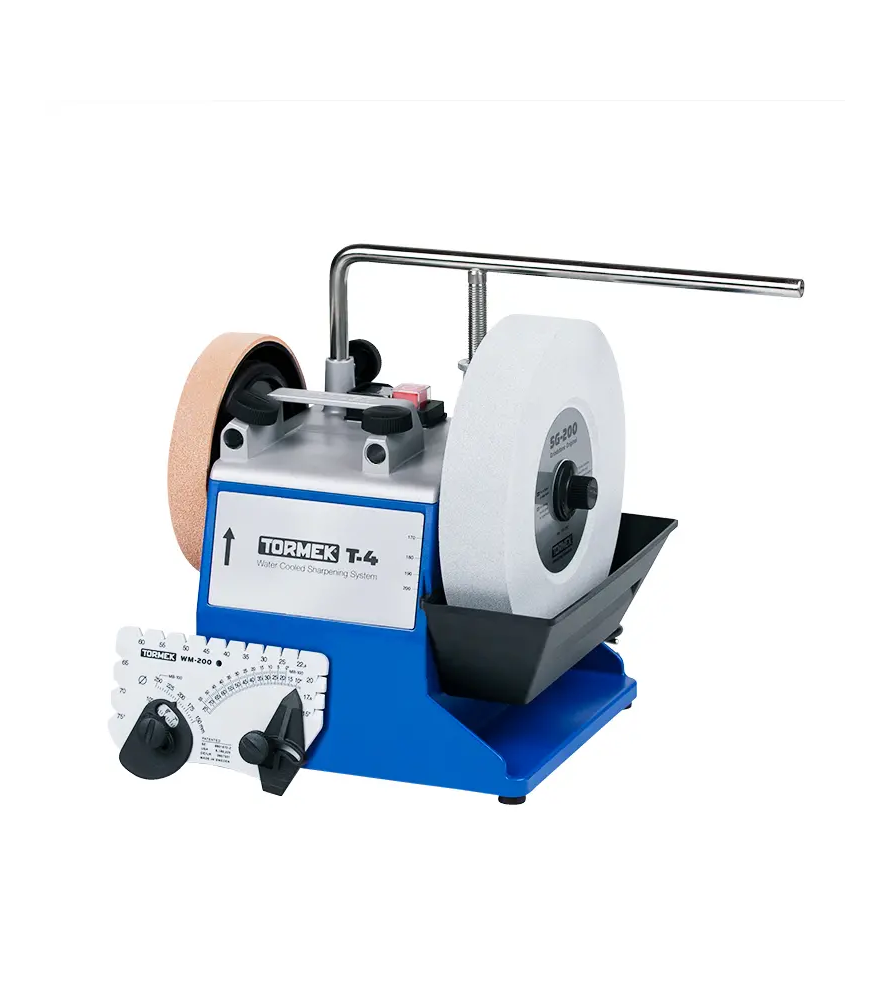

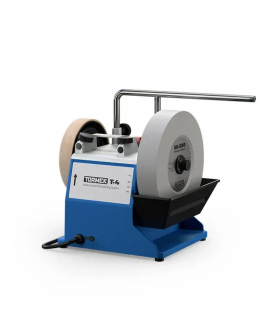

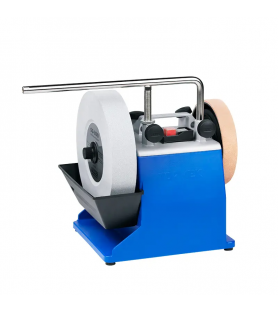

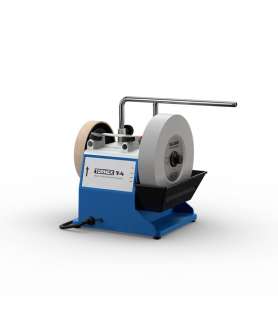

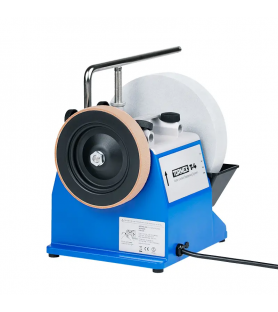

Tormek T-4 Original water-cooled sharpening system - 200 mm Grinding Wheel
459.00 €
Tax included
Including €0.82 for ecotax
Reference: TORMEK-T4
The Tormek T-4 Original is a compact quality machine that's perfect for home and hobby use, or professionals with limited space. Knives, scissors, lawnmower blades and chisels. Most edge tools you can think of can be made sharper than when they were new with Tormek's comprehensive jig system. The universal support provides precise repeatability, and you achieve razor sharpness with the leather honing wheel.
Like the larger machine models, the Tormek T-4 Original comes equipped with Tormek's Original Grindstone.

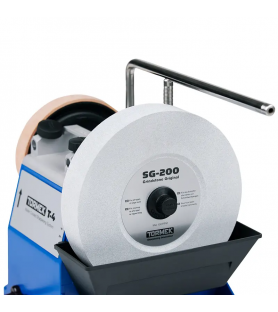

What distinguishes the grindstones between the models is their size. Tormek's SG-200 Original Grindstone is optimized to combine efficient steel removal, a nice finish and a long life span. Using the SP-650 Stone Grader that is included with the machine, you can alternate the surface of the grinding wheel from 220 grit to a surface equivalent to 1000 grit, which provides several characteristics in the same single grinding wheel.
Keeps all tools sharp
The Tormek T-4 Original is ideal for sharpening chisels, knives, scissors, and smaller tools such as woodcarving tools. It also works well for woodturning tools and drills. We recommend one of Tormek's larger models for sharpening planer blades and moulding knives. Please note that a few types of woodturning gouges can't be honed using the SVD-186 R Gouge Jig on the leather honing wheel due to the compact design of the Tormek T-4 Original. These tools can be honed freehand instead.
World-class precision
The Tormek T-4 Original offers the same precision and stability as our larger models, with a compact design. Vital features such as the motor and main shaft are mounted in the cast zinc top, where the patented universal support mounts are also integrated. This design provides unbeatable precision for the universal support, which guides all jigs and accessories.
Advantages of the Tormek T-4 Original water-cooled sharpening system :
Compact water-cooled sharpening system for all your edge tools
Water-cooled sharpening with no risk of overheating the steel
Exact replication – sharpen your tools with unbeatable precision
Efficient grindstone with adjustable properties equivalent to 220 to 1000 grit
Sturdy, cast zinc top with patented mounts for precise sharpening and full control
Maintenance-free industrial motor (AC) ensures minimal speed loss even under heavy load
8-year warranty, 5 years + 3 years when you register online (for private use)
Unique drive system with RKX18 rubber drive wheels
Stainless steel shaft with composite EzyLock for easy replacement of grinding wheels
The Tormek T-4 Original water-cooled sharpening system comes with :
SG-200 Original Grindstone with adjustable sharpening properties,
LA-145 Leather Honing Wheel for deburring and polishing the bevel,
US-103 Universal Support for precision sharpening,
SP-650 Stone Grader to adjust the grit of your grindstone,
WM-200 AngleMaster to measure the sharpening angle,
PA-70 Honing Compound which is used on the leather honing wheel,
EM-15 Edge Marker for coloring the bevel when setting the sharpening angle,
Tube of light machine oil for impregnating the leather honing wheel,
HB-10 Tormek Handbook comes in different language versions depending on the market.
Technical specifications of the Tormek T-4 Original water-cooled sharpening system :
Packaging dimensions
Width: 325 mm (12¾")
Depth: 235 mm (9¼") : Height: 257 mm (10 1/8")
Machine dimensions
Width: 240 mm (9 7/16")
Depth: 205 mm (8 1/16")
Height: 260 mm (10¼")
Weight
Inc. packaging: 9.8 kg (21.6 lbs)
Machine only: 8 kg (17.6 lbs)
Color
Blue/gray
Cord length
1.7 m (5' 7")
Material
Precision-cast zinc top, powder-coated
Impact-resistant blue ABS plastic
Grinding wheel
SG-200 Original Grindstone
Aluminum oxide
Ø 200 × 40 mm (7.87 × 1.57")
Honing wheel
LA-145 Leather Honing Wheel
Cowhide from Tärnsjö Garveri, ABS plastic.
Ø 145 × 26 mm (5.71 × 1.02")
Drive system
Unique drive system with RKX18 rubber
Self-adjusting for load
Main shaft
MSK-200 Stainless Steel Shaft with EzyLock
Performance
120 rpm
Torque 8.4 Nm
Motor
Industrial motor, single phase, AC
120 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
10 000 hours of operating time
Warranty
8-year warranty*, 5 years + 3 years when you register at tormek.com
* The warranty for the Tormek T-4 Original is 2 years when used for commercial, industrial, or educational purposes
With Tormek's patented KJ-45 Centering Knife Jig, you'll get symmetrical bevels with the same angle on both sides of the knife, regardless of the thickness or geometry of the blade. Whether you're sharpening a regular kitchen knife or a thicker, tapered hunting knife, you'll get the same results on both bevels of the knife without needing to reset the jig. The KJ-45 Centering Knife Jig fits most types of knives: household knives, chef's knives, craft knives and knives for hunting and fishing. It also works for the woodcarver's straight drawknives and the gardener's pruning shears.
This well-balanced, patented jig provides extra stability when sharpening knives with long, flexible blades such as filleting knives. With the KJ-140 Wide Centering Knife Jig, you achieve symmetrical sharpening with the same angle on both sides of the blade. Regardless of the thickness and geometry of the blade, it will self-center in the jig, giving you the same result on both bevels. The longer clamp stabilizes flexible knife blades to prevent them from flexing, so that you get the same angle and pressure over the entire bevel.
The SE-77 Square Edge Jig makes it easy to set your chisels and plane irons for straight 90° sharpening. The design of the jig paves the way for successful sharpening with outstanding precision. You can also set the jig to sharpen a slightly rounded shape on the edge.
The Tormek SVH-320 Planer Blade Attachment allows you to sharpen HSS planer blades of any length. Also suitable for miter trimmer blades. Accurate setting ensures precise sharpening along the entire edge.
The Tormek T-4 Original is a compact quality machine that's perfect for home and hobby use, or professionals with limited space. Knives, scissors, lawnmower blades and chisels. Most edge tools you can think of can be made sharper than when they were new with Tormek's comprehensive jig system. The universal support provides precise repeatability, and you achieve razor sharpness with the leather honing wheel.
