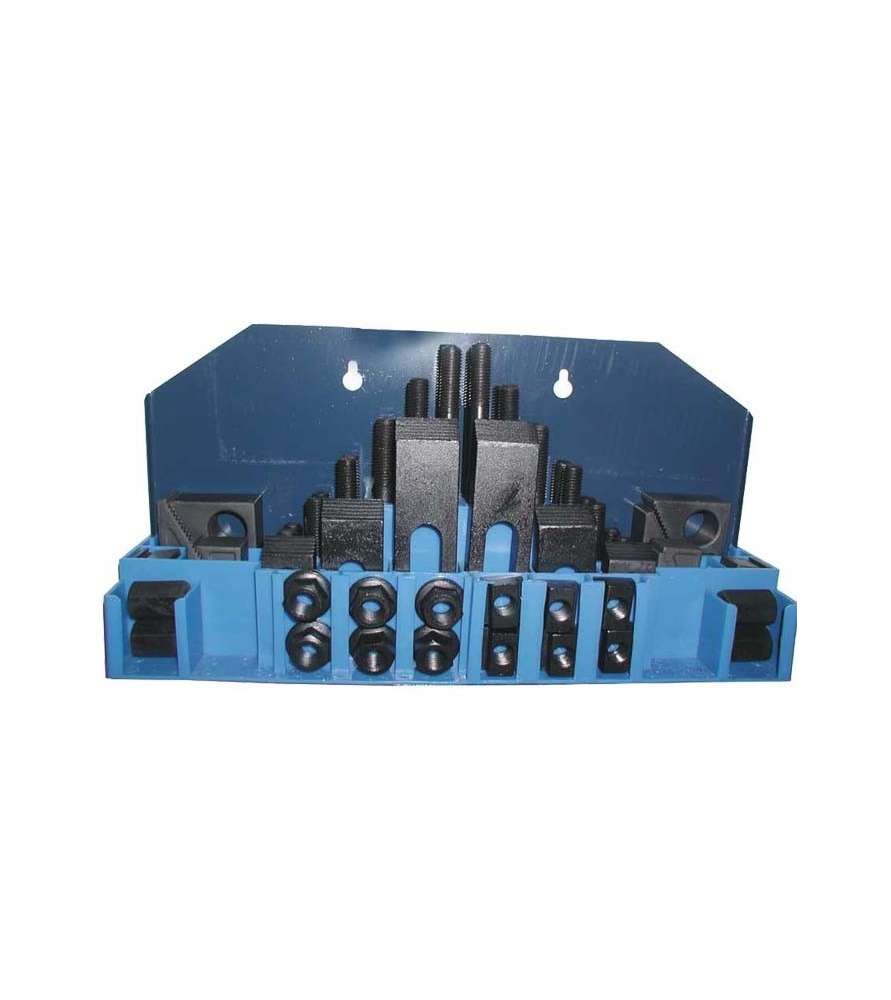

52-Piece Clamping Kit M16 - T18

This 52-piece clamping kit M16 - T18 is designed for securely holding workpieces during milling, drilling and boring operations.

It allows workpieces to be firmly secured to machine tables equipped with T-slots, ensuring maximum stability, accuracy and safety during machining.

Kit Contents

The set includes:

• 24 M16 threaded studs: 4 pieces each in lengths of 75, 100, 125, 150, 175 and 200 mm
• 4 coupling nuts
• 6 pairs of serrated step blocks
• 6 T-slot nuts
• 6 flange nuts
• 6 clamping straps for use with step blocks

Technical Specifications

• Stud thread size: M16
• T-slot size: 18 mm
• Black oxide steel construction
• Suitable for milling, drilling and boring applications

Essential Clamping Equipment for Machine Tools

Thanks to its wide range of clamping components, this M16 clamping kit for 18 mm T-slots allows the operator to adapt the clamping setup to different workpiece shapes and heights.

It is ideally suited for use on milling machines, drill mills, cross-slide tables and other machine tools equipped with 18 mm T-slots.

Before ordering, please verify the T-slot width of your machine table and the required thread size.
