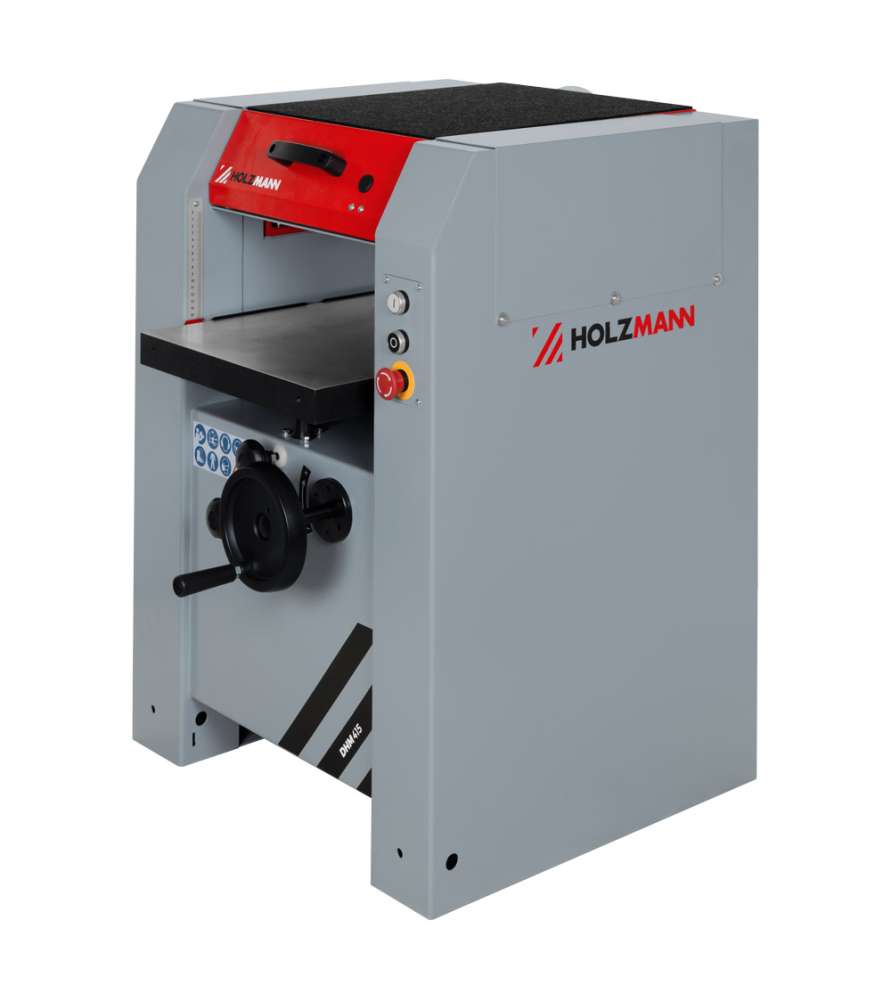

General description of the Holzmann DHM415 planer:

• steering wheel for height adjustment
• tree with 3 knives
• chain drive
• diameter of the dust collector hole: 120 mm
• state-of-the-art ergonomic finishing machine
• thickness width max. : 405 mm

Technical characteristics of the Holzmann DHM415 planer:

• motor power s6: 4000 W
• Voltage: 400V / 3 / 50Hz
• feed speed: 6.5m / min
• suction port: 120 mm
• total dimensions: 985 x 968 x 955 mm
• table size: 750 x 408 mm
• cutting depth: 5 mm
• thickness height: 220 mm
• shaft diameter: 95 mm
• shaft speed: 4200 min-1
• number of irons: 3
• sound power level: 108 dB (A)
• sound pressure level: 100.1 dB (A)
• gross weight: 272 kg
• net weight: 233 kg
• packaging width: 740 mm
• packaging length: 815 mm
• packaging height: 1.140 mm

The Holzmann DHM415 planer is delivered with:

3-jaw chuck Ø 100 mm, quadruple steel support, fixed central point MK3, fixed central point MK2, chip tray, spare wheel set, working tool
