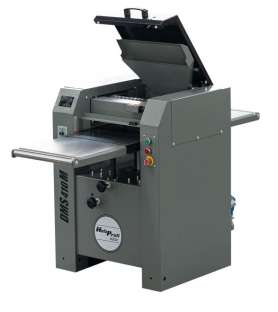

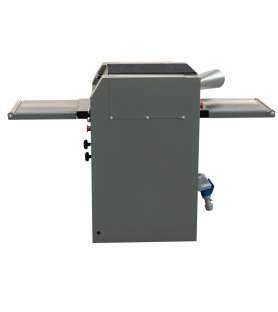

Professional 410 mm Holzprofi DMS410M-TRI Thickness Planer with Helical Cutterhead

The Holzprofi DMS410M-TRI thickness planer from the Master range is a professional woodworking machine designed for joiners, cabinetmakers and production workshops looking for power, accuracy and productivity. Operating from a 400V three-phase power supply, this version features a powerful 4 kW / 5.5 HP braked motor particularly well suited to regular use and demanding thicknessing operations.

With its 410 mm planing width and working height from 4 to 225 mm, the machine can handle a wide variety of timber workpieces. Its Ø95 mm helical cutterhead equipped with 72 carbide inserts, continuously variable feed speed from 0 to 12 m/min and electrically adjustable table with touchscreen control make the DMS410M-TRI a particularly well-equipped professional thickness planer.

Generous 410 mm planing width

The Holzprofi DMS410M-TRI offers a generous maximum planing width of 410 mm, allowing wide boards, solid timber and substantial workpieces to be machined accurately.

Its planing height from 4 to 225 mm provides excellent versatility when working with timber of different thicknesses.

The machine offers a maximum depth of cut of 5 mm, providing substantial material removal capacity for demanding thicknessing operations.

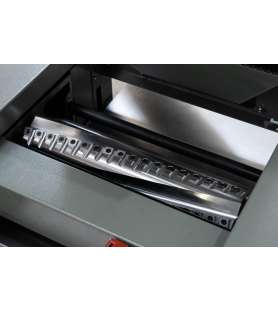

Ø95 mm helical cutterhead with 72 carbide inserts

One of the main features of this thickness planer is its Ø95 mm 4-row helical cutterhead. It is equipped with 72 carbide inserts measuring 15 x 15 x 2.5 mm.

Unlike a conventional cutterhead fitted with long straight planer knives, the helical cutterhead distributes the cutting action across numerous individual carbide inserts. This design helps provide a smooth, consistent cut and excellent surface finish while also contributing to reduced operating noise and vibration.

The carbide inserts also provide excellent wear resistance. In the event of localised damage to an individual insert, maintenance can be limited to the affected insert rather than requiring the replacement of a complete set of long planer knives.

Cutterhead speed of 4200 rpm

The helical cutterhead operates at 4200 rpm. Combined with the 72 carbide inserts arranged across 4 helical rows, this configuration provides consistent machining and excellent surface quality.

This technology is particularly suitable for professional workshops looking to combine productivity, surface finish and operating comfort.

Electric table height adjustment with touchscreen control

The DMS410M-TRI features an electrically powered thicknessing table height adjustment, making it quick and easy to set the required finished thickness.

The adjustment is controlled through a touchscreen with digital display. The operator enters the required dimension and the table automatically moves to the programmed position.

This system provides excellent convenience when changing dimensions frequently and is particularly useful for repetitive work and production runs where several workpieces need to be machined to an accurate and consistent finished thickness.

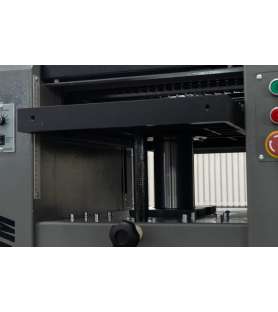

650 x 407 mm thicknessing table

The machine features a substantial 650 x 407 mm thicknessing table, providing stable support as the workpiece passes through the machine.

A 400 x 450 mm outfeed table extension is also supplied as standard. This increases support on the outfeed side and is particularly useful when machining longer timber workpieces.

Continuously variable feed speed from 0 to 12 m/min

The Holzprofi DMS410M-TRI features a continuously variable feed speed from 0 to 12 m/min.

This allows the feed rate to be adapted according to the type of timber, the depth of cut and the required surface finish.

A slower feed speed can be selected when a particularly fine finish is required, while a higher feed rate can improve productivity when machining conditions allow.

Minimum workpiece length of 156 mm

The specified minimum workpiece length is 156 mm. This minimum dimension must be respected to ensure that the workpiece can be correctly engaged and guided by the machine's feed system as it passes through the thickness planer.

Powerful 4 kW / 5.5 HP braked motor – 400V three-phase

The DMS410M-TRI is powered by a 4 kW / 5.5 HP braked motor operating from a 400V / 50 Hz three-phase power supply.

This motor is one of the main differences compared with the single-phase DMS410M-MONO. Its 4 kW power output is particularly well suited to professional workshops requiring a machine for regular use and demanding thicknessing operations.

Combined with the 410 mm working width and 72-insert helical cutterhead, this motor makes the DMS410M-TRI an attractive solution for professional workshops equipped with a three-phase electrical supply.

Heavy-duty and stable construction

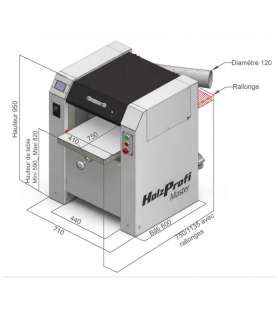

With a machine weight of 262 kg and a 700 x 700 mm base, the Holzprofi DMS410M-TRI provides the robust construction required for regular professional workshop use.

Its substantial weight contributes to machine stability during operation while maintaining a relatively compact footprint considering its generous 410 mm planing capacity.

Ø120 mm dust extraction outlet

The thickness planer features a Ø120 mm dust extraction outlet for connection to a suitable workshop dust extraction system.

Correctly sized dust extraction is particularly important on a professional thickness planer of this capacity due to the substantial volume of chips that can be produced during machining.

Main advantages of the Holzprofi DMS410M-TRI Thickness Planer

• Generous 410 mm planing width
• Planing height from 4 to 225 mm
• Ø95 mm 4-row helical cutterhead
• 72 carbide inserts measuring 15 x 15 x 2.5 mm
• Cutterhead speed: 4200 rpm
• Maximum depth of cut: 5 mm
• Electric table height adjustment
• Touchscreen control
• Automatic positioning to the programmed thickness
• Digital display
• Continuously variable feed speed from 0 to 12 m/min
• 650 x 407 mm thicknessing table
• 400 x 450 mm outfeed table extension supplied as standard
• Powerful 4 kW / 5.5 HP braked motor
• 400V three-phase power supply
• Ø120 mm dust extraction outlet
• Robust 262 kg construction
• CE compliant

Technical specifications of the Holzprofi DMS410M-TRI

A professional 410 mm three-phase thickness planer for demanding workshops

The Holzprofi DMS410M-TRI combines substantial planing capacity with a 72-insert helical cutterhead, continuously variable feed and a modern electrically controlled thicknessing table with touchscreen operation.

Its 410 mm planing width, continuously variable feed speed up to 12 m/min and automatic table positioning provide accuracy and excellent operating comfort for repetitive work and production runs requiring a consistent finished thickness.

Powered by a 4 kW / 5.5 HP 400V three-phase braked motor, the DMS410M-TRI is particularly well suited to professional woodworking workshops looking for a robust and powerful thickness planer for regular and demanding use.
