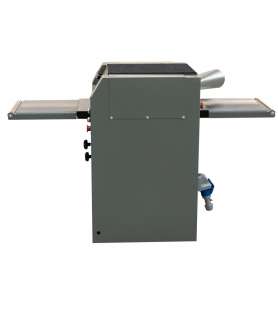

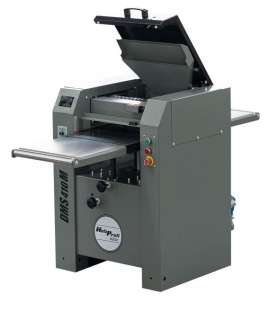

Professional 410 mm Holzprofi DMS410M-MONO Thickness Planer with Helical Cutterhead

The Holzprofi DMS410M-MONO thickness planer from the Master range is a professional woodworking machine designed for joiners, cabinetmakers and demanding workshops looking for accuracy, substantial working capacity and excellent operating comfort. Powered by a 230V single-phase supply, it provides the capacity of a substantial professional thickness planer without requiring a three-phase electrical supply.

With its 410 mm planing width and working height from 4 to 225 mm, the machine can handle a wide variety of timber workpieces. Its Ø95 mm helical cutterhead equipped with 72 carbide inserts, continuously variable feed speed from 0 to 12 m/min and electrically adjustable table with touchscreen control make the DMS410M-MONO a particularly well-equipped thickness planer.

Generous 410 mm planing width

The Holzprofi DMS410M-MONO offers a generous maximum planing width of 410 mm, allowing wide boards, solid timber and substantial workpieces to be machined accurately.

Its planing height from 4 to 225 mm also provides considerable flexibility when working with timber of different thicknesses.

The machine offers a maximum depth of cut of 5 mm, providing substantial material removal capacity when working conditions allow.

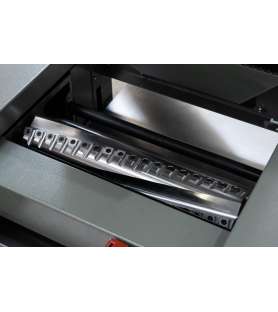

Ø95 mm helical cutterhead with 72 carbide inserts

One of the main features of this thickness planer is its Ø95 mm 4-row helical cutterhead. It is equipped with 72 carbide inserts measuring 15 x 15 x 2.5 mm.

Unlike a conventional cutterhead fitted with long straight planer knives, the helical cutterhead distributes the cutting action across numerous individual carbide inserts. This design helps provide a smooth, consistent cut and excellent surface finish while also contributing to reduced operating noise and vibration.

The carbide inserts also provide excellent wear resistance. In the event of localised damage to an individual insert, maintenance can be limited to the affected insert rather than requiring the replacement of a complete set of long planer knives.

Cutterhead speed of 4200 rpm

The helical cutterhead operates at 4200 rpm. Combined with the 72 carbide inserts arranged across 4 helical rows, this configuration provides consistent machining across the timber workpiece.

It is particularly suitable for workshops looking to combine productivity, surface quality and improved operating comfort.

Electric table height adjustment with touchscreen control

The DMS410M-MONO also stands out thanks to its electrically powered thicknessing table height adjustment.

The setting is controlled through a touchscreen with digital display. The operator can enter the required thickness and the table automatically moves to the programmed position.

This system makes thickness changes considerably quicker and easier and is particularly useful when several workpieces need to be machined repeatedly to the same finished dimension.

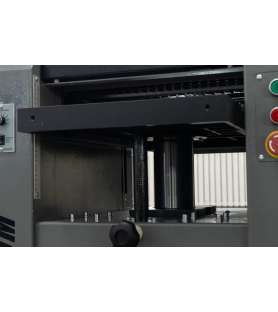

650 x 407 mm thicknessing table

The machine features a substantial 650 x 407 mm thicknessing table, providing a stable support surface as the workpiece passes through the machine.

A 400 x 450 mm outfeed table extension is also supplied as standard. This increases support on the outfeed side and is particularly useful when machining longer timber workpieces.

Continuously variable feed speed from 0 to 12 m/min

The Holzprofi DMS410M-MONO features a continuously variable feed speed from 0 to 12 m/min.

This allows the feed rate to be adapted according to the timber being machined, the amount of material being removed and the required surface finish.

A slower feed speed can be selected when a particularly fine finish is required, while a faster feed rate can increase productivity for suitable machining operations.

Minimum workpiece length of 156 mm

The specified minimum workpiece length is 156 mm. This minimum length must be respected to ensure that the workpiece can be correctly engaged and controlled by the machine's feed system as it passes through the thickness planer.

3 kW / 4 HP braked motor – 230V single-phase

The DMS410M-MONO is powered by a 3 kW / 4 HP braked motor operating from a 230V / 50 Hz single-phase power supply.

This configuration enables workshops without access to three-phase electricity to benefit from a professional 410 mm thickness planer with helical cutterhead and electrically controlled table adjustment.

Heavy-duty and stable construction

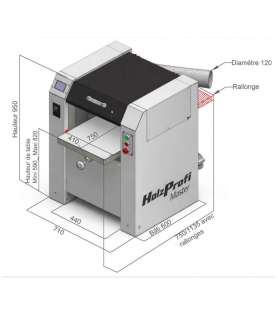

With a machine weight of 262 kg and a 700 x 700 mm base, the Holzprofi DMS410M-MONO provides the robust construction required for regular workshop use.

Its relatively compact footprint considering its 410 mm working capacity also makes it an attractive solution for professional workshops where available floor space needs to be used efficiently.

Ø120 mm dust extraction outlet

The thickness planer features a Ø120 mm dust extraction outlet for connection to a suitable workshop dust extraction system.

Correctly sized dust extraction is particularly important on a thickness planer of this capacity due to the substantial volume of chips produced during machining.

Main advantages of the Holzprofi DMS410M-MONO Thickness Planer

• Generous 410 mm planing width
• Planing height from 4 to 225 mm
• Ø95 mm 4-row helical cutterhead
• 72 carbide inserts measuring 15 x 15 x 2.5 mm
• Cutterhead speed: 4200 rpm
• Maximum depth of cut: 5 mm
• Electric table height adjustment
• Touchscreen control
• Automatic positioning to the programmed thickness
• Digital display
• Continuously variable feed speed from 0 to 12 m/min
• 650 x 407 mm thicknessing table
• 400 x 450 mm outfeed table extension supplied as standard
• 3 kW / 4 HP braked motor
• 230V single-phase power supply
• Ø120 mm dust extraction outlet
• Robust 262 kg construction
• CE compliant

Technical specifications of the Holzprofi DMS410M-MONO

A particularly well-equipped 410 mm single-phase thickness planer

The Holzprofi DMS410M-MONO combines substantial planing capacity with a 72-insert helical cutterhead and a modern electrically controlled thicknessing table with touchscreen operation.

Its 410 mm planing width, continuously variable feed speed up to 12 m/min and automatic table positioning provide excellent operating comfort for repetitive work and production runs requiring an accurate and consistent finished thickness.

Powered by a 3 kW / 4 HP 230V single-phase motor, the DMS410M-MONO is also an attractive solution for professional and demanding workshops requiring a high-capacity thickness planer without access to a three-phase power supply.
