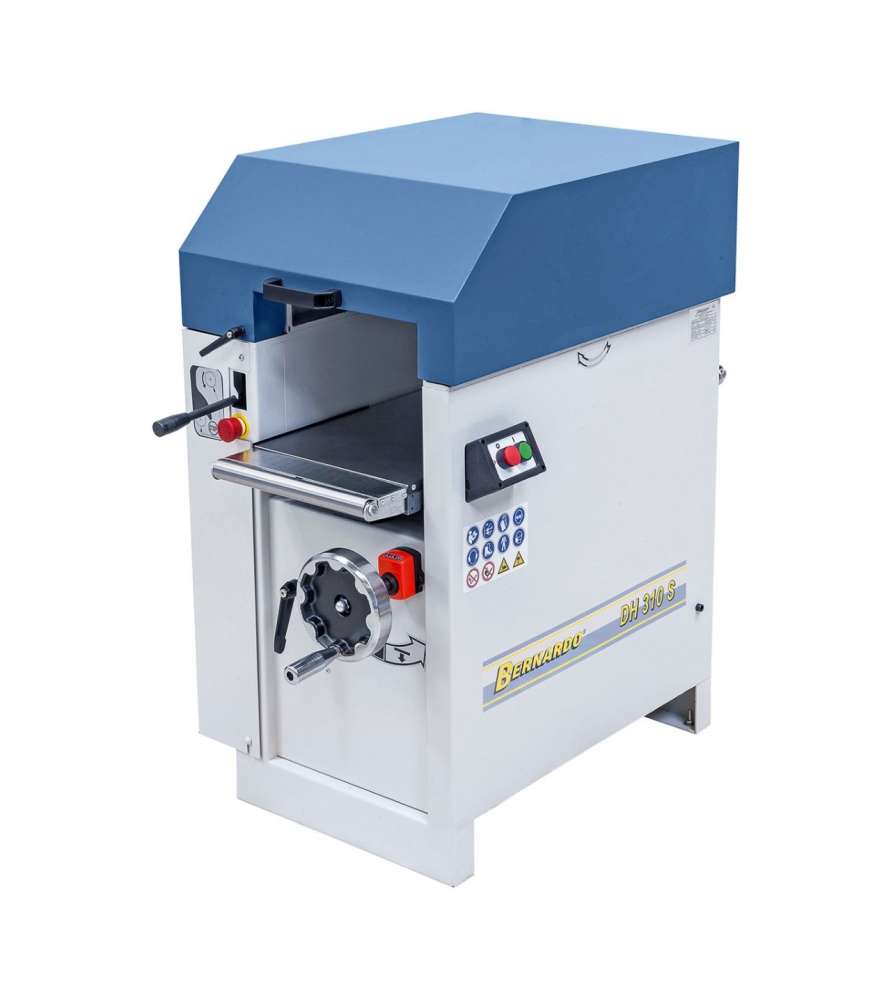

General description of the Bernardo DH410S planer:

Reduced noise stress (approx. 50%) with standard helical knife planer shaft and up to 20x longer knife life (thanks to reversible carbide inserts that can be reused four times)

• Advantage of reversible carbide inserts: in the event of damage, the individual knives can be replaced or rotated
• Planing table on central column and support for precise planing
• Carbide knives guarantee crack-free planing results and optimum surfaces for all types of wood

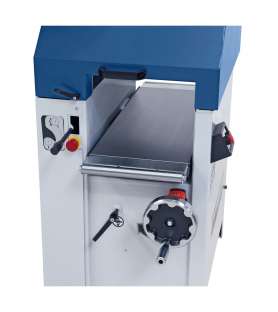

• Ground table for workpieces up to 230 mm high
• Comes as standard with table extension and integrated rollers

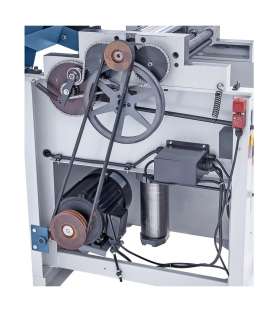

• Chain drive for safe and even workpiece feed
• Several safety devices: On / off switch with power release, limit switch to prevent accidental starting of the machine, emergency stop point

Technical characteristics of the Bernardo DH410S planer:

• Planer width: 410 mm
• Min / max planing height: 5 - 230 mm
• Planing table dimensions: 930 * x 310 mm
• Maximum pass removal: 5 mm
• Mini part length: 150 mm
• Shaft diameter: 95 mm
• Number of reversible carbide inserts: 72
• Shaft speed: 4050 rpm
• Feed speed: 6 m / min
• Ø suction nozzle: 100 mm
• S1 continuous power 100%: 3.0 kW (3.0 hp)
• Power S6 40%: 4.2 kW (4.0 hp)
• Voltage: 400V
• Machine dimensions (W x D x H): 1110 x 710 x 1020 mm
• Weight (approx.): 239 kg
• * With table extension

The Bernardo DH410S planer is delivered with:

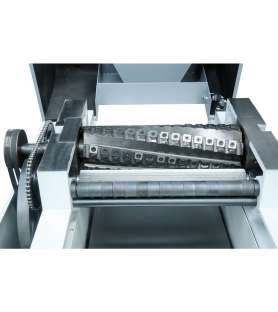

• Helical knife plane shaft with 72 reversible carbide inserts
• Replacement reversible carbide inserts (5 pcs)
• Digital table height display
• Table extension with rollers
