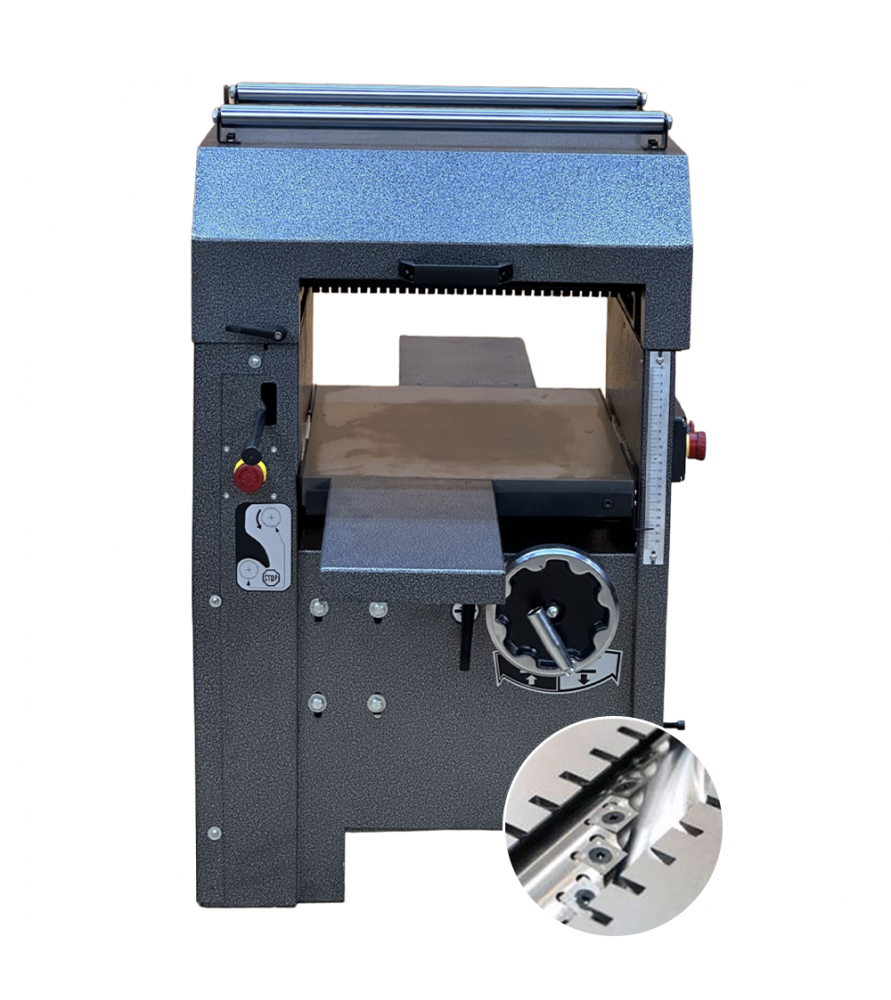

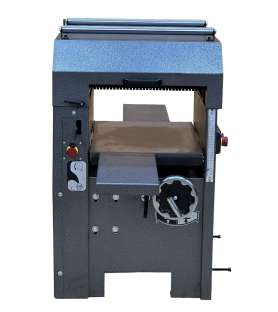

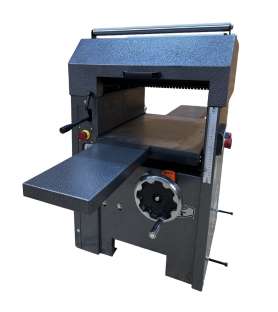

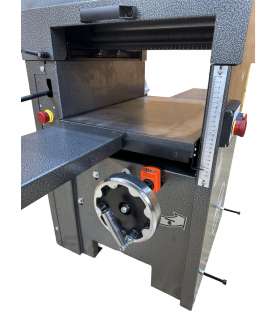

Advantages of the Holzprofi Maker RAB410 planer :

• Cast iron table with extensions
• Feed speed: 5.4 m/min
• Chip intake: 4.5 mm
• Ideal for a flawless finish on all types of wood

Technical specifications of the Holzprofi Maker RAB410 planer :

• Planing width: 410 mm
• Planing height: 230 mm
• Planing table: 600 x 408 mm
• Supplied with two 200 x 425 mm table extensions for the infeed and outfeed planing table

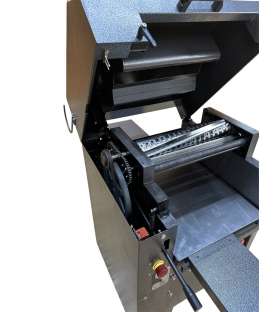

• Ø75 mm spindle with 4 helices equipped with 72 15 x 15 x 2.5 mm carbide tips with rounded corners
• Feed speed: 5.4 m/min
• Max. chip intake: : 4.5 mm
• Shaft rotation speed: 4500 rpm

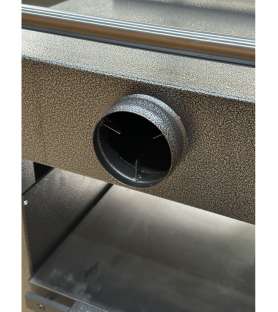

• Suction nozzle diameter: 100 mm
• Frame: 570 x 580 mm

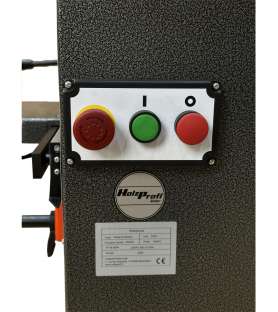

• Brake motor: 3 kW / 4 HP / 50 Hz, single-phase 230 V
• CE compliant
• Dimensions: 860 x 710 x 950 mm
• Weight: 140 kg
• Packaging: 940 x 730 x 1150 mm / 159 kg

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, make sure the belts are correctly positioned, tighten the bolts, etc., as various transport operations cause vibrations. Always use a 2.5² wire extension cord.
• The extension cord must not exceed 10 meters and must not be coiled.
• The use of reels, triplet plugs, or power strips is PROHIBITED.
• Provide an electric meter with special machine start-up fuses of at least 16A.
• Have a standard electric meter with neutral and ground connections.
• Always work with a chip vacuum for your health and to protect the machine's warranty.
• Always grease cast iron tables with wood slides.
• Always work with guards in place.
• Do not work with dull or blunt blades; this can damage the mechanism, the planer's feed, or break the belt.
