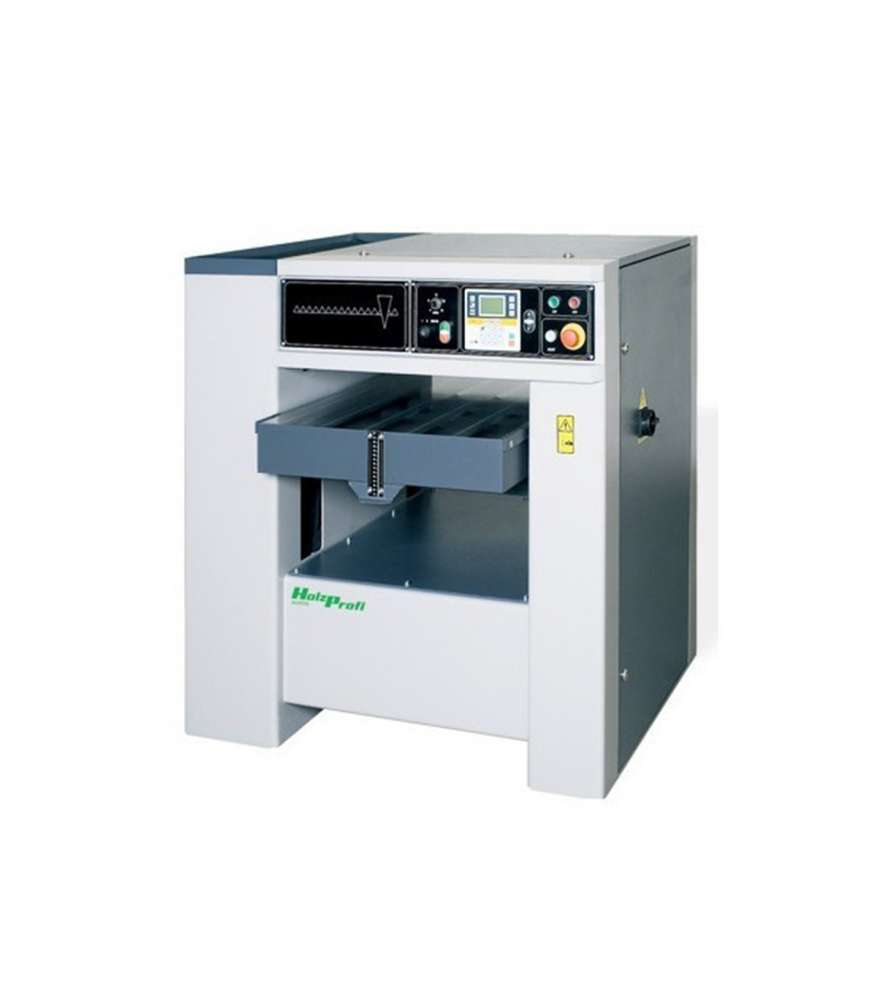

The 800 mm Holzprofi A800 - 400V planer is equipped with a 1200 mm cast iron single-piece table!

This table offers stability and precision, while the 4-point electric lift ensures easy adjustment. Automatic table positioning, with a digital display accurate to 0.1 mm, simplifies every operation. The welded sheet metal frame and powerful motors guarantee strength and efficiency, with an impressive planing height of 300 mm. Supplied with assembled and sharpened blades, it embodies uncompromising excellence.

Technical specifications of the 800 mm Holzprofi A800 - 400V planer :

• Assembly: 30 minutes / 1 person
• Option: Tersa spindle / Helical spindle with inserts
• Weight: 1380 kg
• Shaft diameter: 120 mm
• Shaft rotation speed: 4800 rpm
• Number of blades: 62-4
• Chip intake: 8 mm
• Motor power (400 V/50 Hz): 11 kW / 15 hp
• Suction nozzle diameter: 180 mm
• Dimensions: 1,310 x 1,060 x 1,250 mm
• Processing width: 800 mm
• Planing table length: 1200 mm
• Minimum-maximum planing height: 3-300 mm
• Speed Wood feed: continuous 4 to 19 m/min
• Drive rollers: 1 grooved / 2 solid steel
• Anti-friction rollers in the table: 2
• Table rise: display and electronic adjustment 0.1 mm

Important recommendation from Probois for many woodworking machines :

Before starting up, always check the inside of your machine, check that the belts are correctly positioned, tighten the bolts, etc., as various transport operations cause vibrations.

Always use a 2.5² wire gauge extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of bench grinders, triplet plugs, or power strips is PROHIBITED.

Have a compliant electrical meter with neutral and ground connections.

Always work with a chip vacuum for your health and to protect the machine's warranty.

Always grease cast iron tables with wood slides.

Always work with guards in place.

Do not work with dull or blunt blades; this can damage the mechanism, the planer's feed, and break the belt.
