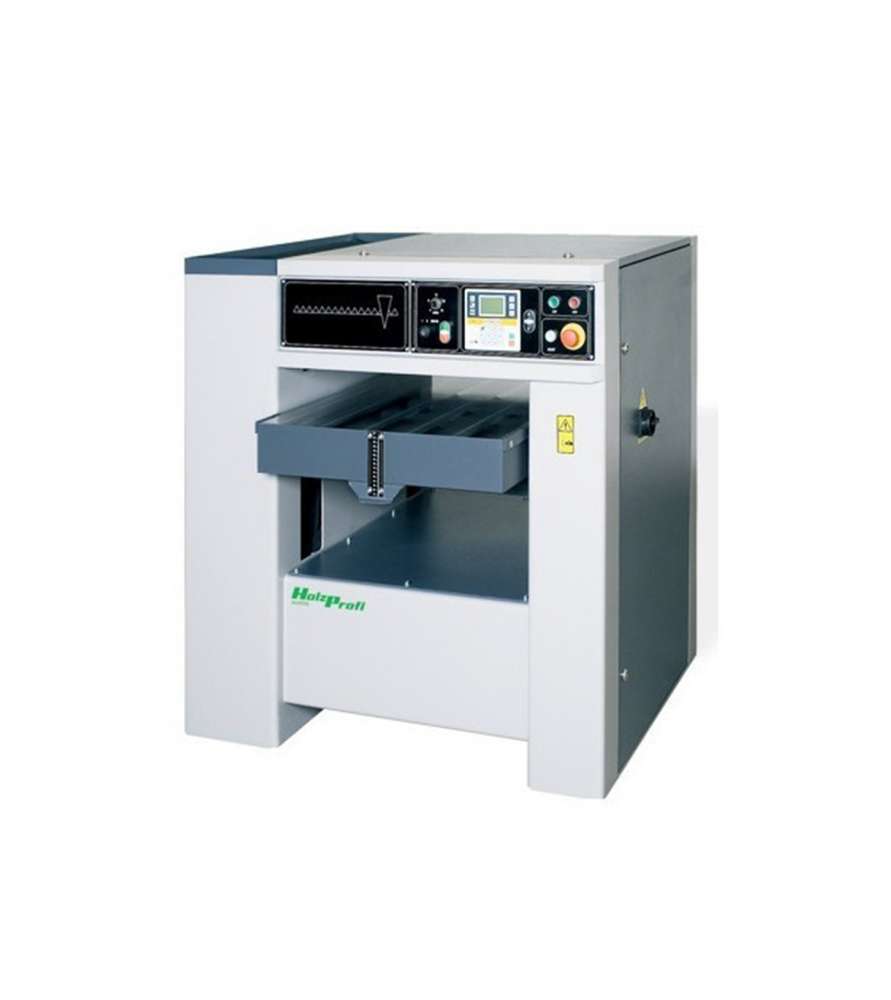

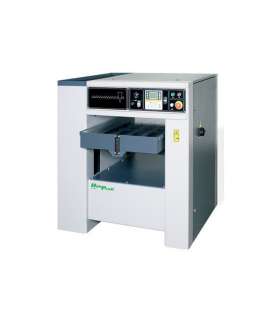

The Holzprofi A630-400V planer offers a planing width of 630 mm and an adjustable planing height from 3 to 300 mm, meeting a wide variety of needs.

• The planing table, 640 mm wide and 1200 mm long, provides exceptional stability and precision.
• The minimum material length to be planed is 310 mm, ensuring great flexibility in workpiece processing.
• The planing spindle, with a diameter of 120 mm, is equipped with four knives and rotates at a speed of 3000 rpm, ensuring a flawless finish.
• The thickness is displayed electronically for easy and accurate reading.
• The table is raised electrically, with a fine adjustment of 0.1 mm, facilitating adjustments and improving work efficiency. With its advanced features and robust design, the A630 630mm three-phase planer is an excellent choice for professionals seeking performance and precision.

Technical specifications of the 630 mm Holzprofi A630 - 400V planer :

• Assembly: 30 minutes / 1 person

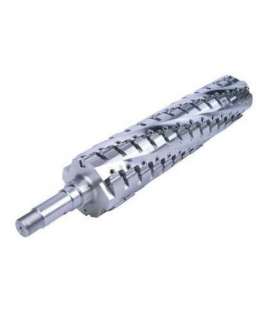

• Option: Tersa spindle / Helical spindle with inserts
• Weight: 1160 kg
• Shaft diameter: 120 mm
• Shaft rotation speed: 4800 rpm
• Number of blades: 62-4
• Chip intake: 8 mm
• Motor power 400V/50Hz: 7.5 kW / 10 hp
• Suction nozzle diameter: 160 mm

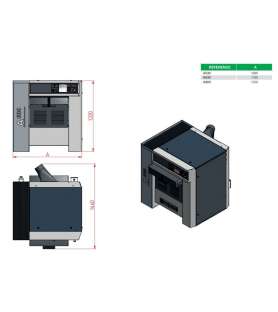

• Dimensions (mm): 1310 x 1060 x 1250
• Processing width: 630 mm
• Planing table length: 1200 mm
• Minimum-maximum planing height: 300 mm
• Speed Wood feed rate (m/min): Continuous from 4 to 19

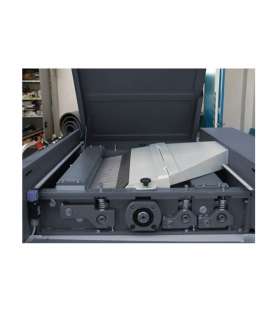

• Drive roller: 1 grooved / 2 solid steel
• Anti-friction roller in the table: 2
• Table rise: Display and electronic adjustment to 0.1 mm

Important recommendation from Probois for many woodworking machines such as this planer :

Before starting up, always check the inside of your machine, check that the belts are correctly positioned, tighten the bolts, grease the tables, etc., as various transport operations cause vibrations.

Always use a 2.5² wire gauge extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of bench grinders, triple sockets, or power strips is PROHIBITED.

Provide an electric meter with special machine start fuses of at least 16A.

Have a standard electric meter with neutral and ground connections.

Always work with a chip extractor for your health and to protect the machine's warranty.

Always grease cast iron tables with wood slides.

Always work with the guards in place.

Do not work with dull or blunt blades; this can damage the mechanism, the planer feed, or break the belt.

Is the machine not starting? The chip ejection guard is probably incorrectly installed on the jointer/planer side; it's a safety feature!
