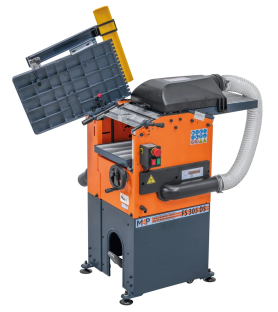

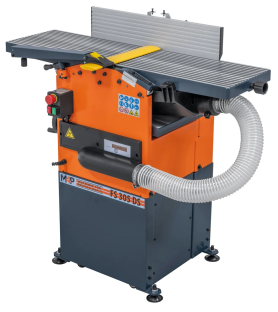

M4P FS305DS 305 mm Planer Thicknesser with Helical Cutterhead and Integrated Dust Extraction

The M4P FS305DS planer thicknesser is a versatile woodworking machine designed to deliver precise surface planing and thicknessing operations with excellent working comfort.

With its 305 mm working width, it allows users to prepare boards, timber sections, panels and other solid wood components for furniture making, joinery and cabinetmaking projects.

This machine stands out thanks to its comprehensive equipment, including a helical cutterhead with carbide inserts, integrated chip extraction system, collection bag and mobility kit.

It is an attractive solution for woodworkers looking for a well-equipped and efficient machine without having to purchase numerous additional accessories.

Helical Cutterhead with 28 Carbide Inserts for Excellent Cutting Performance

One of the main advantages of the M4P FS305DS is its 62 mm diameter helical cutterhead, equipped with 28 carbide cutting inserts.

Unlike conventional cutterheads fitted with straight planer knives, this system uses multiple small cutting inserts arranged around the cutterhead.

This design offers several important benefits.

Reduced operating noise

The helical cutterhead helps significantly reduce noise levels during surface planing and thicknessing.

According to the manufacturer, noise reduction can reach approximately 50% under the stated comparison conditions.

This feature improves working comfort, particularly during extended machining sessions.

Excellent surface finish

The carbide inserts promote smooth, consistent cutting and help produce clean wooden surfaces with a reduced risk of tear-out.

This system is particularly useful when working with different timber species, including woods with challenging grain patterns.

Four-sided reversible carbide inserts

Each carbide insert features four usable cutting edges.

When one cutting edge becomes dull, the insert can simply be rotated to expose a fresh edge.

According to the manufacturer, the cutting edges can provide up to 20 times the service life of a conventional solution, depending on working conditions and the tools being compared.

If an individual insert becomes damaged, only the affected insert needs to be replaced rather than the entire set of cutting tools.

The machine is supplied with 5 spare carbide inserts.

305 mm Surface Planing Width for Preparing Solid Wood

In surface planing mode, the M4P FS305DS offers a 305 mm working width, making it suitable for flattening faces and straightening edges on a wide variety of solid wood components.

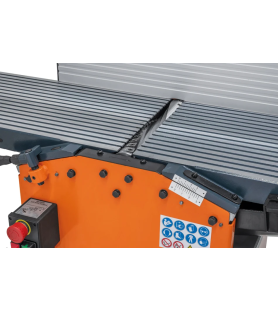

The 1080 mm long aluminium planing tables provide a stable supporting surface for guiding timber during machining.

They feature a fine adjustment system to facilitate accurate positioning.

The machine also incorporates specially designed table lips that help reduce operating noise.

The maximum depth of cut in surface planing mode is 3 mm, allowing users to adjust material removal according to the timber species and workpiece dimensions.

For consistent results, several moderate passes are generally preferable to removing excessive material in a single pass.

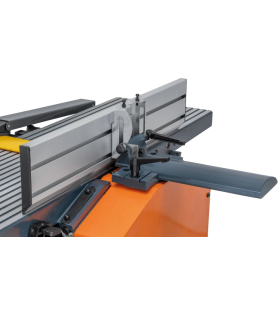

Adjustable Planing Fence for Angled Woodworking Operations

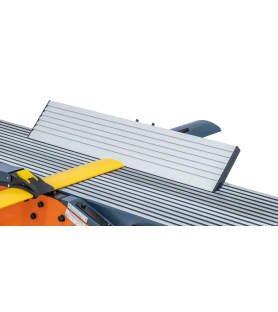

The M4P FS305DS planer thicknesser features a 640 × 125 mm fence, adjustable from 90° to 45°.

Its prismatic guiding system helps maintain stability during surface planing operations.

The fence is particularly useful for:

• Straightening the edges of timber boards.

• Preparing components for woodworking joints.

• Producing bevelled edges.

• Working at different angles according to project requirements.

The adjustable fence makes the machine suitable for common joinery and cabinetmaking applications.

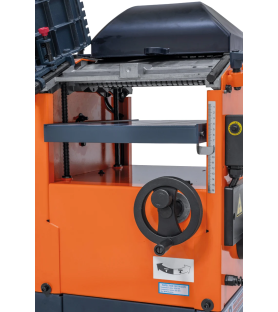

Thicknessing Function for Consistent Timber Dimensions

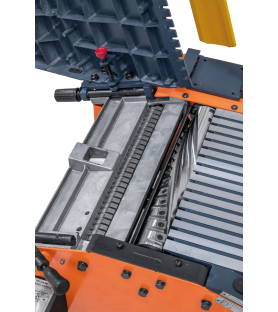

After surface planing, the thicknessing function of the M4P FS305DS allows timber to be machined to the required thickness.

The machine provides a 305 mm thicknessing width and accepts workpieces with a height ranging from 5 to 160 mm.

The thicknessing table measures 500 mm in length and features a four-point guiding system, designed to promote accurate and stable adjustment.

The maximum depth of cut in thicknessing mode is 2 mm.

This capacity allows users to machine timber progressively and achieve consistent thickness and smooth surfaces.

The machine is also equipped with a serrated feed roller, which helps move the workpiece through the thicknessing mechanism.

Automatic Feed Speed of 6 m/min

The M4P FS305DS features an automatic feed system in thicknessing mode, with a feed speed of 6 metres per minute.

This consistent feed rate allows timber to move through the machine without requiring continuous manual pushing.

It contributes to uniform machining and makes it easier to work with boards, timber sections and other solid wood components.

To maintain cutting quality and prevent overloading, the depth of cut should always be adjusted according to the workpiece width, timber species and material condition.

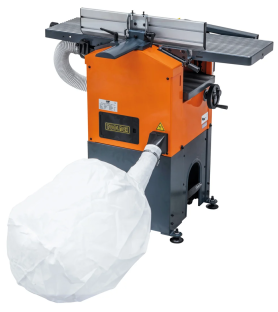

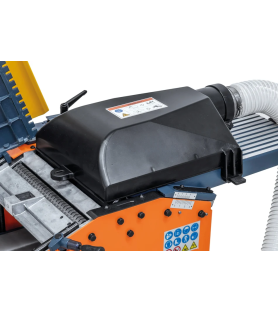

Integrated Chip Extraction for a More Practical Workshop

Another important feature of the M4P FS305DS planer thicknesser is its integrated chip extraction system.

This system collects wood chips produced during machining without necessarily requiring the purchase of a separate chip extractor.

The machine is supplied with a collection bag designed to receive the extracted wood chips.

This solution offers several advantages:

• Reduced accumulation of wood chips around the machine.

• Easier installation in workshops with limited space.

• Fewer separate accessories and machines required.

• Simpler cleaning and maintenance.

• Improved workshop organisation.

Integrated extraction is therefore a valuable feature for users looking for a compact planer thicknesser with built-in chip collection.

However, the collection bag should be checked and emptied regularly, and the extraction system must be maintained according to the manufacturer's instructions.

Suitable ventilation and protective measures remain necessary to minimise exposure to fine wood dust.

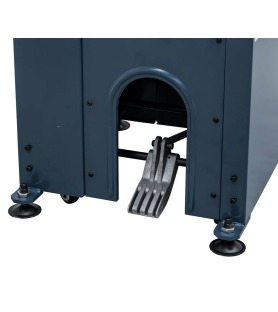

Mobility Kit Included for Easier Workshop Organisation

The M4P FS305DS comes with a mobility kit, which is particularly useful when workshop space is limited.

This equipment makes it easier to reposition the machine according to the woodworking operation being performed.

It is especially practical in workshops where machines need to be moved to create additional working space.

With an approximate weight of 95 kg, the planer thicknesser offers a construction suitable for stationary woodworking while remaining movable using its dedicated mobility system.

A Complete Planer Thicknesser for Woodworking Enthusiasts

The M4P FS305DS is particularly suitable for demanding DIY users, woodworking enthusiasts and craftspeople looking for a machine combining several essential woodworking functions.

Its equipment allows users to perform the main stages of solid wood preparation:

• Flattening a timber face to create a reference surface.

• Straightening an edge before assembly.

• Thicknessing boards to the required dimensions.

• Preparing components for furniture making.

• Carrying out joinery and cabinetmaking projects.

• Improving surface quality before finishing operations.

The combination of a helical cutterhead, integrated chip extraction and included mobility kit makes this machine an attractive choice for workshops seeking a versatile and well-equipped solution.

Technical Specifications of the M4P FS305DS Planer Thicknesser

Included Equipment and Accessories

The M4P FS305DS planer thicknesser is supplied with:

• Helical cutterhead fitted with 28 carbide inserts.

• 5 spare carbide inserts.

• Integrated chip extraction system.

• Wood chip collection bag.

• Safety push stick.

• Mobility kit.

Why Choose the M4P FS305DS Planer Thicknesser?

The M4P FS305DS combines several features that woodworkers look for in a modern planer thicknesser.

Its 305 mm working width provides useful capacity for preparing solid timber components.

The helical cutterhead with 28 carbide inserts offers excellent cutting performance, convenient cutting-edge maintenance and reduced operating noise compared with traditional straight-knife cutterheads.

The integrated chip extraction system and collection bag simplify workshop installation, while the included mobility kit makes it easier to organise the available space.

With its 1080 mm surface planing tables, adjustable fence and four-point guided thicknessing table, this machine provides a complete solution for precise woodworking operations.

Discover the M4P FS305DS planer thicknesser at Probois Machinoutils and enjoy a 305 mm woodworking machine equipped with a helical cutterhead and integrated chip extraction.
