M4P FS250S 230V Planer Thicknesser with Helical Cutterblock and Stand

The M4P FS250S planer thicknesser is a compact and versatile woodworking machine designed for accurate jointing and thicknessing operations. Equipped with a helical cutterblock featuring 24 carbide inserts, a 230V single-phase motor and a metal stand included as standard, it offers a practical solution for small woodworking workshops, craftsmen and woodworking enthusiasts.

With a maximum jointing width of 255 mm, a thicknessing width of 250 mm and a maximum thicknessing height of 120 mm, this machine allows various solid wood workpieces to be prepared, straightened and machined to the required thickness.

Its compact design and approximate weight of 31 kg also make it easier to install and move, particularly for users with limited workshop space.

Helical Cutterblock with 24 Carbide Inserts for Excellent Surface Finishes

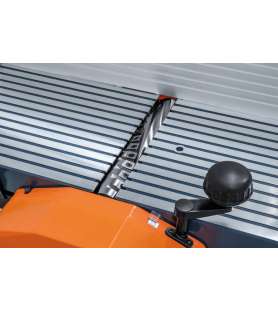

The M4P FS250S features a 50 mm diameter helical cutterblock equipped with 24 reversible carbide inserts.

Unlike conventional cutterblocks fitted with straight knives, this system uses multiple small cutting inserts arranged around the cutterblock to provide a progressive and consistent cutting action.

This technology offers several advantages:

• Reduced operating noise: according to the manufacturer, the helical cutterblock can reduce noise levels by approximately 50% compared with conventional cutting systems.

• Excellent surface finish: carbide inserts provide a smooth, consistent cut while helping to minimise wood fibre tear-out.

• Extended cutting edge life: the manufacturer claims that the carbide inserts can provide up to 20 times longer service life than conventional planer knives.

• Simplified maintenance: each insert features four cutting edges and can be rotated when one edge becomes worn.

• Cost-effective replacement: individual damaged inserts can be replaced without changing the entire set of cutting tools.

The cutterblock rotates at 8,500 rpm, providing the cutting speed required for accurate jointing and thicknessing.

The machine is also supplied with 5 spare carbide inserts, making future cutterblock maintenance easier.

Precision-Machined Aluminium Jointing Tables

In jointing mode, the M4P FS250S features precision-machined aluminium tables, providing a suitable working surface for flattening and straightening timber.

The combined table length is 925 mm, with a maximum jointing width of 255 mm.

These dimensions allow various solid wood workpieces to be machined for flattening surfaces and straightening edges.

The maximum jointing depth of cut is 2 mm, allowing material to be removed progressively to achieve flat and consistent surfaces.

The depth of cut adjustment system is designed for quick and convenient operation, making it easier to adapt the machine to different jointing tasks.

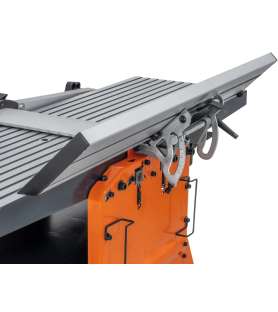

The machine also features a 540 × 125 mm jointing fence, adjustable from 90° to 45°.

This fence makes it possible to produce square edges as well as angled joints.

For the best results, the depth of cut should be adjusted according to the width of the workpiece and the hardness of the timber.

Compact Thicknesser with a 250 mm Working Width

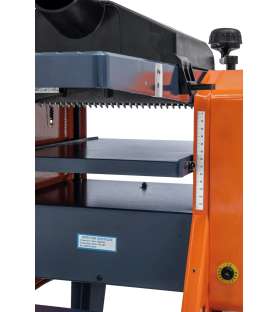

In thicknessing mode, the M4P FS250S planer thicknesser allows wooden workpieces to be machined to the required thickness after jointing.

It provides a maximum thicknessing width of 250 mm and an adjustable thicknessing height from 5 to 120 mm.

This capacity makes it suitable for processing various timber sections used in joinery, furniture making and interior woodworking projects.

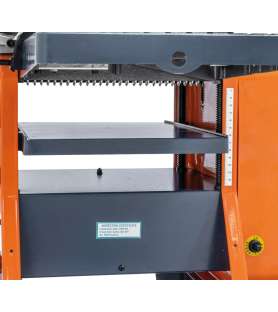

The thicknessing table measures 380 mm in length and supports the workpiece as it passes through the machine.

The automatic feed mechanism operates at a feed speed of 7 metres per minute, ensuring consistent workpiece movement beneath the cutterblock.

The maximum thicknessing depth of cut is 2 mm and should be adjusted according to the width of the workpiece, the type of wood and the load placed on the motor.

Thanks to its helical cutterblock with carbide inserts, the machine produces smooth surfaces while helping reduce the risk of wood fibre tear-out.

Combined Dust Extraction Hood for Jointing and Thicknessing

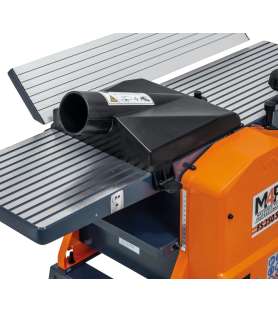

The M4P FS250S is equipped with a combined dust extraction hood, designed for use in both jointing and thicknessing modes.

This system allows the machine to be connected to an external dust extractor to collect the wood chips generated during machining.

The dust extraction connection diameter is 75 mm, allowing users to select a suitable extraction system.

Unlike machines with integrated powered extraction, the FS250S requires connection to a separate woodworking dust extractor for effective chip removal.

Suitable dust extraction helps maintain a cleaner working environment, reduces chip accumulation and improves operating comfort.

Adequate ventilation and appropriate protection against fine wood dust are still recommended.

Powerful 230V Single-Phase Motor for Small Workshops

The M4P FS250S operates on a 230V single-phase electrical supply, making it suitable for workshops without access to three-phase power.

Its motor specifications are as follows:

• Continuous motor output power S1: 1,500 W.

• Motor input power S6 40%: 2,100 W.

• Power supply: 230V single-phase.

• Cutterblock speed: 8,500 rpm.

This motor configuration is suitable for general jointing and thicknessing operations, provided that the machine's capacity is respected and the depth of cut is adjusted according to the type of timber.

It allows home workshops and small woodworking businesses to use a versatile planer thicknesser without requiring an industrial three-phase electrical supply.

Metal Stand Included for Improved Stability

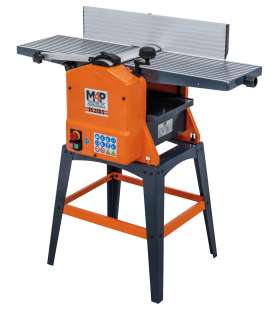

The M4P FS250S planer thicknesser is supplied with a metal stand, allowing the machine to be installed at a practical working height.

This is a useful feature for users who do not want to dedicate a workbench to their planer thicknesser.

The stand provides a dedicated support for the machine and helps ensure good stability during jointing and thicknessing operations, provided that it is correctly assembled and installed on a stable, level surface.

With overall dimensions of 970 × 460 × 990 mm and an approximate weight of 31 kg, the M4P FS250S remains relatively compact despite its stand.

Its practical design makes it suitable for small woodworking workshops, converted garages and home DIY spaces.

Compact and Practical Design for Woodworking Projects

The M4P FS250S has been designed to provide the essential functions of a planer thicknesser in a compact and easy-to-install format.

Its 255 mm jointing width allows wider timber to be processed than on many compact 200 mm machines.

The combination of aluminium tables, an adjustable jointing fence, a helical cutterblock with carbide inserts and a metal stand included as standard makes this machine particularly suitable for users who want to prepare their own timber.

It can be used for a variety of woodworking tasks:

• Flattening solid wood boards.

• Straightening timber edges before assembly.

• Thicknessing workpieces to a consistent dimension.

• Preparing timber for furniture making.

• Producing small joinery projects.

• DIY and interior woodworking applications.

The machine also features a CE-compliant cutterblock guard, designed to improve operator safety during jointing operations.

Technical Specifications of the M4P FS250S Planer Thicknesser

General Information

• Brand: M4P

• Model: FS250S

• Manufacturer reference: 3001016

• EAN code: 9009468083915

• Power supply: 230V single-phase

• Motor output power S1: 1,500 W

• Motor input power S6 40%: 2,100 W

• Machine dimensions (L × W × H): 970 × 460 × 990 mm

• Weight: approximately 31 kg

• Stand: included as standard

Cutterblock Specifications

• Cutterblock type: helical cutterblock with carbide inserts

• Number of carbide inserts: 24

• Cutterblock diameter: 50 mm

• Cutterblock speed: 8,500 rpm

• Reversible carbide inserts with 4 cutting edges

Jointing Capacity

• Maximum jointing width: 255 mm

• Total jointing table length: 925 mm

• Table material: aluminium

• Maximum depth of cut: 2 mm

• Fence dimensions: 640 × 125 mm

• Fence tilt: 90° to 45°

Thicknessing Capacity

• Maximum thicknessing width: 250 mm

• Thicknessing height: 5 to 120 mm

• Thicknessing table length: 380 mm

• Maximum depth of cut: 2 mm

• Automatic feed speed: 7 m/min

Dust Extraction System

• Combined dust extraction hood: yes

• Suitable for jointing and thicknessing: yes

• Extraction connection diameter: 75 mm

• External dust extractor: required, not included

Standard Equipment Supplied with the M4P FS250S

The M4P FS250S planer thicknesser is supplied with the following equipment:

• Helical cutterblock fitted with 24 carbide inserts, factory-installed on the machine.

• 5 spare carbide inserts, for convenient cutterblock maintenance.

• Combined dust extraction hood, suitable for both jointing and thicknessing operations.

• Safety push stick, helping keep hands away from the cutterblock during certain jointing operations.

• Metal stand, providing a dedicated support for the machine.

Main Advantages of the M4P FS250S Planer Thicknesser

• Helical cutterblock with 24 carbide inserts for consistent cutting and excellent surface finishes.

• 255 mm jointing width and 250 mm thicknessing width.

• 925 mm jointing tables for improved workpiece support.

• Adjustable fence from 90° to 45° for straight and angled jointing.

• 230V single-phase motor suitable for home workshops.

• Combined dust extraction hood for both operating modes.

• Metal stand included for convenient installation.

• 5 spare carbide inserts supplied.

• Compact design suitable for smaller workshops.

Why Choose the M4P FS250S Planer Thicknesser from Probois Machinoutils?

The M4P FS250S planer thicknesser with helical cutterblock and stand is an excellent solution for woodworkers looking for a compact, versatile and well-equipped woodworking machine.

Its 24-insert helical cutterblock, 255 mm jointing width and metal stand included as standard are key advantages for carrying out routine woodworking operations in a limited space.

At Probois Machinoutils, we offer a selection of woodworking machinery for demanding DIY enthusiasts and professionals, along with technical advice on machine operation and maintenance.

Discover the M4P FS250S 230V planer thicknesser and enjoy a compact, high-performance machine for accurate jointing and thicknessing operations.
