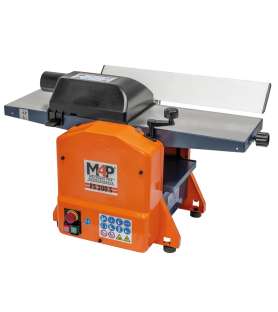

M4P FS200S planer thicknesser: helical cutting technology in a compact machine

The M4P FS200S planer thicknesser combines two essential woodworking functions in one compact, practical and easy-to-use machine.

Equipped with a helical cutterblock featuring 18 carbide inserts, it allows users to surface plane and thickness timber accurately while achieving a particularly smooth and consistent finish.

Its compact construction, single-phase 230 V power supply and weight of approximately 22 kg make it an excellent choice for hobby woodworkers, DIY enthusiasts and users with limited workshop space.

Helical cutterblock with 18 carbide inserts for superior surface finishing

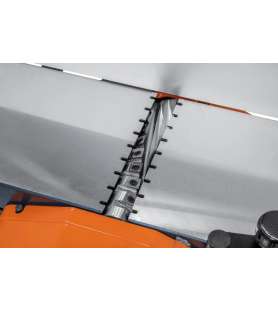

The main advantage of the M4P FS200S is its 50 mm diameter helical cutterblock, equipped with 18 reversible carbide inserts.

Compared with conventional straight-knife cutterblocks, this cutting system offers several important benefits:

• Reduced operating noise: the manufacturer indicates that noise levels can be reduced by up to approximately 50%, depending on working conditions.

• Excellent surface finish: the arrangement of the carbide inserts promotes smooth cutting and helps minimise wood tear-out.

• Longer cutting tool life: each insert features four usable cutting edges.

• Easy maintenance: when a cutting edge becomes worn or damaged, the individual insert can simply be rotated or replaced.

• Lower maintenance costs: there is no need to replace an entire set of planer knives when only one cutting edge is damaged.

This technology makes the machine particularly attractive to woodworkers looking for a compact helical planer thicknesser capable of producing clean and accurate surfaces.

205 mm surface planer for accurate timber preparation

The surface planing function allows users to flatten one face of a board and square an adjoining edge before thicknessing.

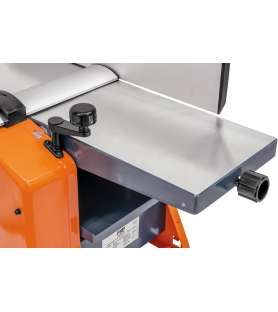

The M4P FS200S features precision-machined aluminium surface planing tables with a total length of 740 mm, providing a practical working surface for smaller woodworking projects.

Its 205 mm planing width makes it suitable for preparing a variety of timber components used in furniture making, shelving and general joinery.

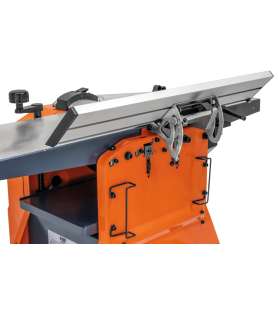

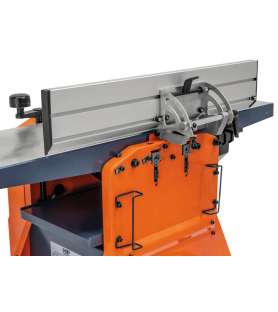

The 540 x 100 mm adjustable fence, which can be tilted from 90° to 45°, also allows accurate angled edge planing.

With a maximum cutting depth of 2 mm, the depth of cut can be adjusted according to the timber species and the operation being performed.

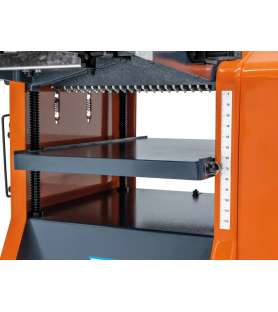

Thicknessing function for consistent timber dimensions

Once the timber has been surface planed, the thicknessing function allows the workpiece to be machined to the required thickness.

The M4P FS200S thickness planer provides a maximum working width of 200 mm and accepts timber with a thickness ranging from 5 to 120 mm.

Its automatic feed system operates at 6.5 m/min, helping ensure a steady and consistent passage of timber through the machine.

With a maximum thicknessing depth of cut of 2 mm, material can be removed progressively to achieve the desired dimensions.

For the best results, the cutting depth should always be adapted to the width, hardness and characteristics of the timber being processed.

Compact 230 V planer thicknesser with a powerful motor

With overall dimensions of just 790 x 460 x 480 mm, the M4P FS200S can easily be installed on a workbench or suitable machine stand.

Its weight of approximately 22 kg makes it relatively easy to move or store when not in use.

The machine is powered by a 1500 W single-phase motor rated for continuous S1 operation, with a stated power input of 2100 W under S6 40% operating conditions.

This motor provides the performance required for everyday surface planing and thicknessing operations, provided that the depth of cut is adjusted to suit the timber being machined.

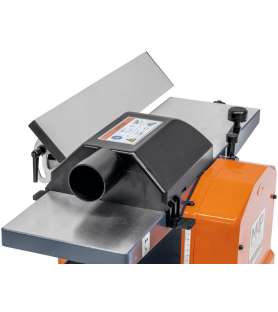

The machine also features a 60 mm diameter dust extraction outlet and a dust extraction hood suitable for both operating modes.

Connecting the machine to an appropriate dust extraction system is recommended to ensure effective chip removal and maintain a clean working environment.

An ideal planer thicknesser for small woodworking workshops

The M4P FS200S helical planer thicknesser is an attractive solution for woodworkers who want the benefits of carbide insert cutting technology without investing in a large, heavy woodworking machine.

It is particularly suitable for:

• Preparing small solid wood boards.

• Making furniture and shelving components.

• Flattening timber faces and squaring edges.

• Thicknessing timber to consistent dimensions.

• General woodworking, joinery and DIY projects.

• Small workshops where space and portability are important.

Thanks to its helical cutterblock, straightforward operation and compact dimensions, the M4P FS200S offers an appealing alternative to conventional small planer thicknessers equipped with straight knives.

Technical specifications

Standard equipment

The M4P FS200S planer thicknesser is supplied with:

• Helical cutterblock fitted with 18 carbide inserts.

• Set of 5 spare carbide inserts.

• Dust extraction hood.

• Safety push stick.
