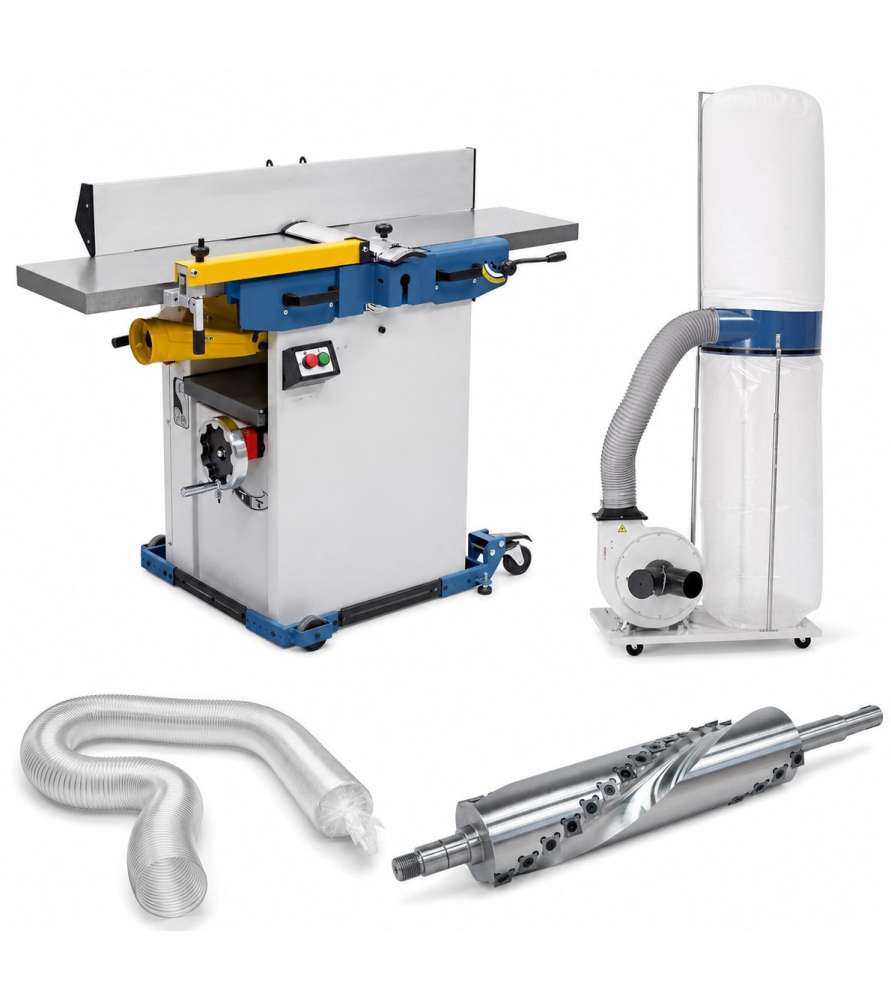

A powerful and complete setup for a real woodworking workshop

This package combines a highly sought-after setup for woodworkers, cabinet makers and demanding enthusiasts looking for a 310 mm helical planer thicknesser with a truly suitable dust extraction system and a robust mobile base.

The Bernardo FS310PS delivers outstanding surface finish quality thanks to its helical carbide insert cutterhead, while the Bernardo DC400 dust extractor provides efficient chip extraction essential for proper machine operation and comfortable working conditions.

The package is completed with a 5-meter extraction hose, allowing flexible and convenient workshop installation.

Bernardo FS310PS: precision, quieter operation and premium finish quality

The Bernardo FS310PS is a robust machine designed for users seeking:

• excellent planing quality;
• reduced noise levels;
• less tear-out on difficult woods;
• longer tool life;
• and a stable, durable machine.

Thanks to its helical carbide insert cutterhead, cutting action is smoother and more progressive than with traditional straight knives, greatly improving both user comfort and surface finish quality.

Its heavy-duty construction with cast iron tables and rigid chassis ensures excellent precision in both surface planing and thicknessing operations.

An intentionally oversized mobile base: a real advantage

This machine is supplied with the Bernardo UFW600 mobile base, intentionally chosen stronger than standard mobile bases generally designed for machines around 300 kg.

This provides major advantages:

• improved rigidity;
• smoother movement;
• better stability;
• stronger wheels;
• and much easier handling within the workshop.

Even with the substantial weight of the FS310PS, machine movement remains easier and safer thanks to this reinforced mobile base.

Bernardo DC400 dust extractor: ideal power for the FS310PS

A helical planer thicknesser requires efficient dust extraction in order to:

• evacuate chips efficiently;
• prevent clogging;
• protect the feed system;
• improve working conditions;
• and protect user health.

The Bernardo DC400 is an excellent match for the FS310PS thanks to its strong balance between airflow performance, power and compact workshop footprint.

Bernardo DC400 technical features

• High airflow suitable for 310 mm woodworking machines
• High-performance impeller for wood chips and dust
• Large collection bag
• Ideal operation with planer thicknessers
• Compatible extraction diameter: 100 mm
• Suitable for woodworking and cabinet-making workshops
• Excellent balance between power and compact size

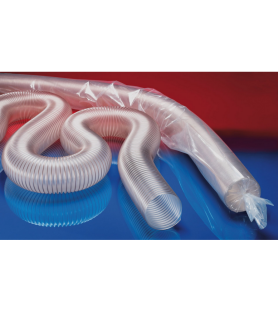

The supplied 5-meter hose allows comfortable installation while maintaining excellent extraction efficiency.

Technical specifications of the Bernardo FS310PS with helical cutterhead

Surface planing

• Cutting width: 310 mm
• Table length: 1400 mm
• Table height: 825 mm
• Cutterhead speed: 4500 rpm
• Reversible carbide inserts: 30
• Cutterhead diameter: 75 mm
• Fence size: 1120 x 150 mm
• Tilting fence: 90° to 45°
• Maximum depth of cut: 3 mm

Thicknessing

• Table length: 600 mm
• Planing width: 305 mm
• Minimum / maximum thicknessing height: 5 – 240 mm
• Maximum depth of cut: 3 mm
• Feed speed: 5.4 m/min
• Dust extraction port diameter: 100 mm

Motor

• Continuous power S1 100%: 3.0 kW (4.0 HP)
• Power S6 40%: 4.2 kW (5.7 HP)
• Voltage: 230 V

Dimensions and weight

• Dimensions: 1400 x 900 x 980 mm
• Weight: 205 kg

Important recommendations from Probois Machinoutils

To ensure proper operation, safety and long service life of your machine:

• Always check belts and fasteners before first start-up.
• Use a minimum 2.5 mm² electrical extension cable.
• Never use multi-sockets or partially rolled cable reels.
• Always work with suitable dust extraction.
• Maintain cast iron tables regularly using a table lubricant.
• Always work with safety guards installed.
• Never use dull or damaged blades/inserts.

Probois Machinoutils: woodworking machinery specialist

At Probois Machinoutils, we select reliable, repairable and long-lasting woodworking machines.

This complete package allows users to immediately benefit from a powerful, coherent and workshop-ready woodworking setup.
