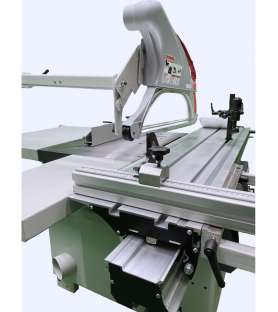

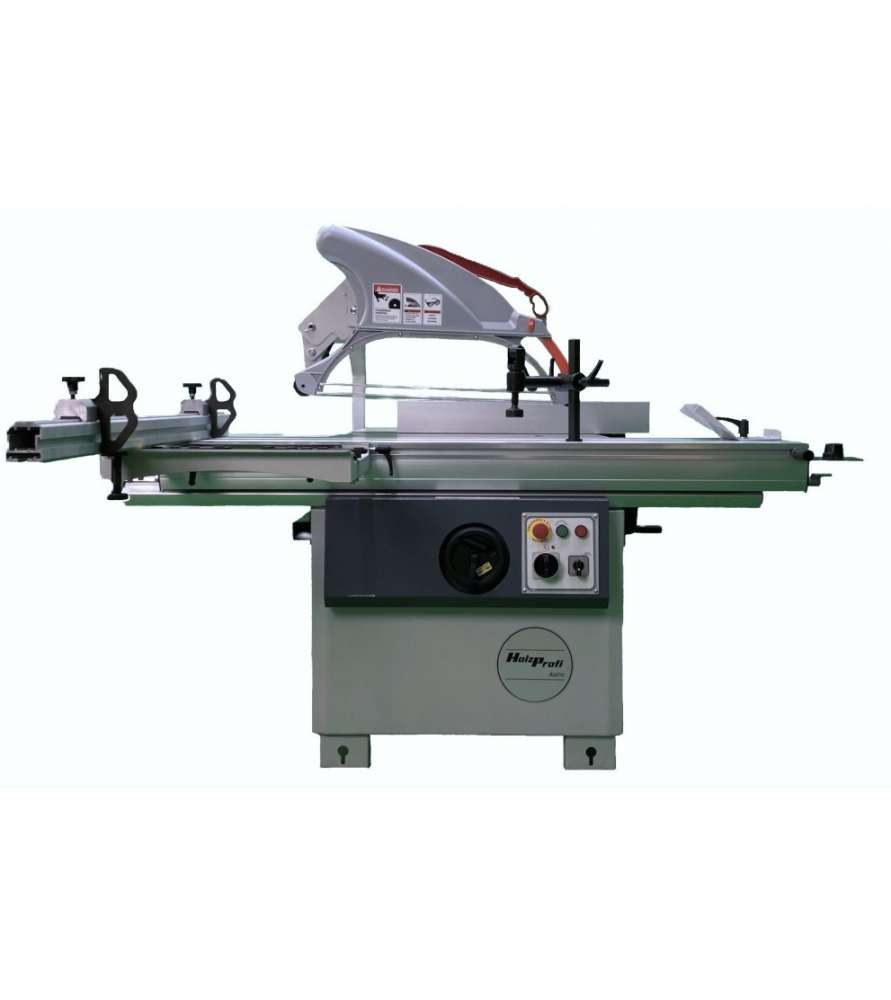

General description of the Holzprofi S2-2743 sliding table saw :

• Designed specifically for small workshops thanks to its compact dimensions.
• 315mm diameter blade, 950mm cutting width, and 103mm cutting height at 90°.
• Ensures clean cuts in various materials.
• Powered by a 3.0 kW S1/4HP/50Hz brake motor, it can operate on a 230V single-phase supply thanks to a frequency inverter.

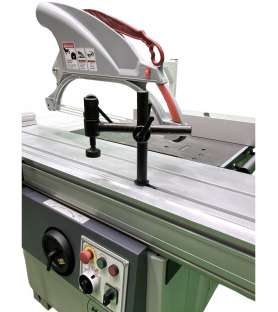

• Supplied with an eccentric hold-down, dust extraction arm, and 120mm diameter dust port.

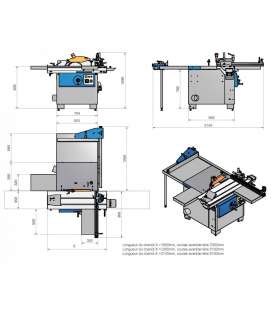

Technical specifications of the Holzprofi S2-2743 sliding table saw :

• Cutting length: 2743 mm or 2600 mm with scoring blade
• Cutting width: 950 mm
• Max. blade diameter: : 315 mm (without scoring unit)
• 800x550 mm cast iron table
• Dimensions of the sliding carriage: 2743 x 350 mm
• 520x418 mm carriage frame without swivel arm with angular indexing
• 1219 mm ruler and 2 stops
• Suction arm dia. 80 mm standard
• Blade rotation: 4000 rpm
• Scoring blade rotation: 8000 rpm
• Scoring blade motor: 0.75 kW/HP
• Brake motor: 3.0 kW S1/4 HP/50Hz, three-phase 380V + frequency inverter for single-phase 230V power supply
• Blade tilt: 0-45°
• Maximum cutting height at 90°: 103 mm
• Maximum cutting height at 45°: 65 mm
• Weight: 500 kg

IMPORTANT FOR DELIVERY AND START-UP OF XXXL MACHINES!

XXXL machines are shipped only by 38-ton truck with a forklift. The delivery location must be suitable for this type of truck to approach and maneuver easily. By ordering an XXXL machine, the recipient agrees to comply with this obligation. Any additional costs incurred by the carrier due to their inability to proceed, unload, or depart will be borne by the customer until final delivery is arranged by an alternative method. Setup: Prices do not include assembly or electrical installation, which must be performed by a professional to prevent damage to the machine's motors and electrical circuits that would void the warranty.
