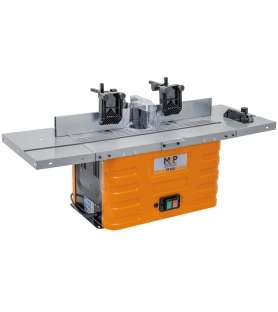

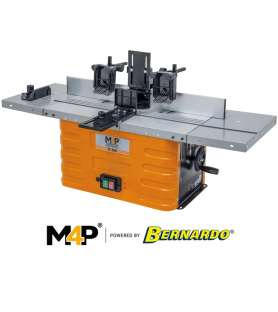

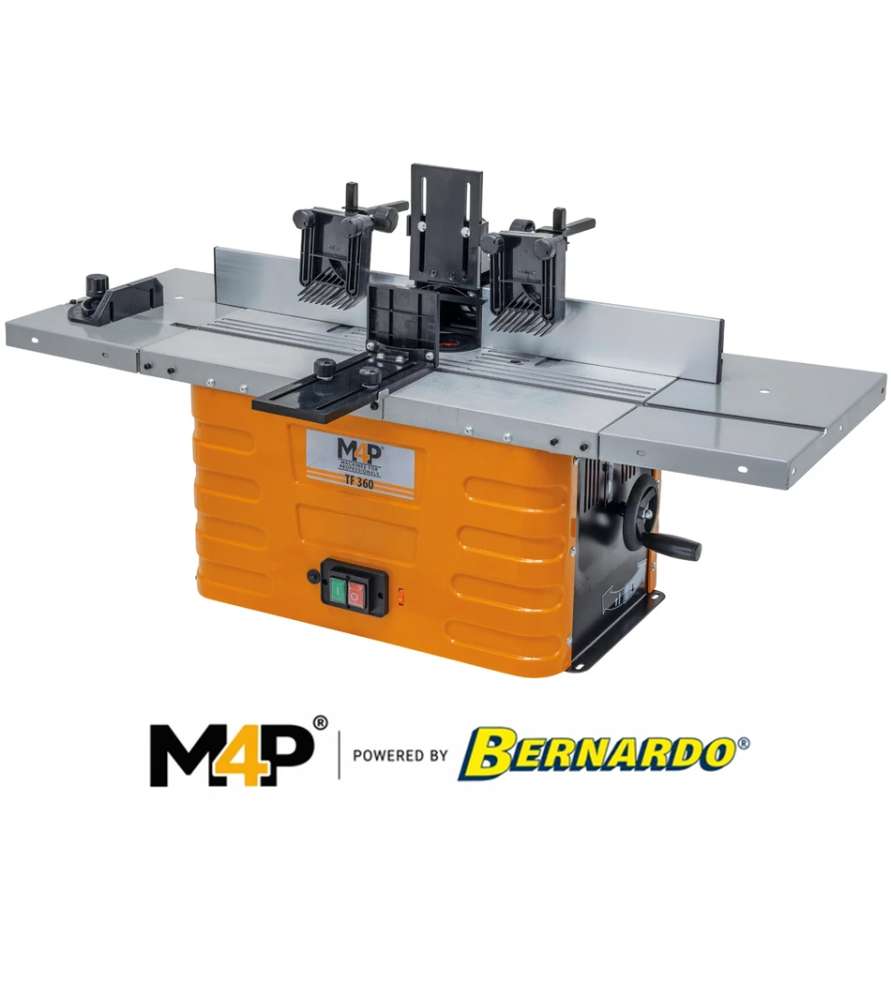

M4P TF360 Router Table: A Compact Machine for Woodworking and Routing

The M4P TF360 router table is a stationary woodworking machine designed to perform various routing, profiling and grooving operations on wooden workpieces.

Compact and easy to integrate into a workshop, it offers an attractive solution for woodworking enthusiasts looking for a stationary router table with precise speed and cutting height adjustments.

With its 1500W motor, adjustable spindle speed and working table equipped with side extensions, the M4P TF360 allows users to machine different wooden components under controlled guiding conditions.

It is particularly suitable for cutting grooves, rebates, decorative profiles and certain woodworking joints, provided compatible router bits are used within the machine's operating limits.

The machine also features a routing fence with anodised aluminium faces, a protective hold-down device and a connection for an external dust extraction system.

A 1500W Motor for Everyday Wood Routing Operations

The M4P TF360 is equipped with a motor delivering 1500W in S1 continuous operation, with a stated power output of 2100W in S6 operation at a 40% duty cycle.

This motor provides the power required for many common woodworking routing operations, provided that the cutting conditions are adapted to the router bit diameter and the material being machined.

The machine is primarily intended for experienced DIY users and woodworking enthusiasts who want to manufacture their own wooden components using a stationary routing machine.

To maintain cutting quality and avoid overloading the motor, the cutting depth and feed rate should always be adapted to the timber species, cutter diameter and type of operation.

Variable Speed from 11,500 to 24,000 rpm for Different Router Bits

One of the main advantages of the M4P TF360 router table is its continuously adjustable electronic speed control.

The spindle speed can be adjusted between 11,500 and 24,000 revolutions per minute, allowing users to adapt the machine to different routing operations.

This variable speed system is particularly useful when working with router bits of different diameters.

It allows users to:

• Adjust the spindle speed to the router bit diameter.

• Adapt cutting conditions to different timber species.

• Perform grooving operations.

• Produce decorative profiles.

• Prepare wooden components for certain joints.

• Improve consistency during routing.

It is essential to respect the maximum permitted speed specified by the router bit manufacturer and never exceed the operating limits of the cutting tool.

610 × 360 mm Working Table with Side Extensions

The M4P TF360 features a 610 × 360 mm main working table, providing a suitable supporting surface for stationary routing operations.

To make it easier to guide longer workpieces, the machine is supplied with two side extensions measuring 210 × 360 mm each.

These extensions increase the available supporting surface on both sides of the machine.

They provide several advantages:

• Better support for wooden workpieces during routing.

• Easier guidance of battens and boards.

• A more comfortable working surface.

• Improved handling during edge profiling.

• Greater versatility when machining workpieces of different lengths.

The side extensions are particularly valuable on a compact router table, especially in workshops where available space is limited.

For long or heavy workpieces, additional infeed and outfeed supports may still be necessary to ensure stable and controlled handling.

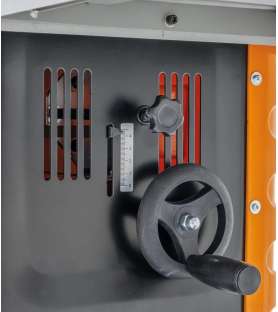

Precise Router Height Adjustment Using a Handwheel

The M4P TF360 router table features a handwheel-operated cutter height adjustment system, allowing the working position of the router bit to be adjusted.

The available height adjustment travel is 40 mm.

This system allows users to adjust the cutter position without having to reach underneath the table for every adjustment.

A graduated scale makes it easier to check the setting and helps achieve consistent results during repeated operations.

This adjustment system is particularly useful for:

• Setting the cutting depth for different routing operations.

• Producing profiles at different heights.

• Adjusting the cutter position according to timber thickness.

• Preparing batches of workpieces requiring identical settings.

• Performing everyday stationary routing operations more conveniently.

The handwheel adjustment therefore improves working comfort and makes precise positioning easier.

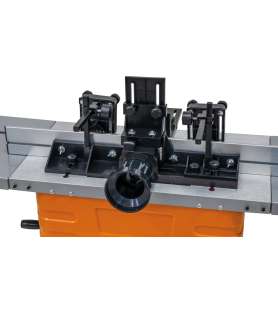

Routing Fence with Anodised Aluminium Faces

The M4P TF360 is equipped with a routing fence featuring anodised aluminium faces.

This fence helps support and guide wooden workpieces during operations requiring a reference surface.

The working table also features integrated graduated scales, making it easier to position the fence accurately.

This equipment is particularly useful for:

• Cutting longitudinal grooves.

• Producing rebates.

• Profiling wooden edges.

• Performing repetitive routing operations.

• Preparing components for certain woodworking joints.

Correct fence adjustment is essential for obtaining consistent routing results and maintaining proper control of the workpiece.

The machine is also supplied with a protective hold-down device, designed to contribute to workpiece guidance and safety during machining.

Three Collets Included: 6, 8 and 12 mm

The M4P TF360 router table is supplied with three collets measuring 6, 8 and 12 mm.

These collets allow the machine to accommodate different router bits, provided that the cutter shank diameter exactly matches the installed collet.

This versatility is particularly useful for woodworkers who already own a selection of compatible router bits.

The machine can therefore be used for many routing applications, subject to its maximum cutter dimensions.

The maximum permitted cutter diameter is 50 mm.

It is essential to use the correct collet for the router bit shank and check that the cutter is securely fitted before starting the machine.

Multiple Table Openings for Different Cutter Diameters

The M4P TF360 working table features several opening sizes to accommodate compatible routing cutters.

The specified opening diameters are 32, 47, 55 and 75 mm.

This feature allows the cutter opening to be adapted to different tools within the machine's operating capacity.

The appropriate opening should always be selected according to the cutter diameter and the manufacturer's recommendations.

A suitable opening around the cutter must be maintained to ensure safe operating conditions.

100 mm Dust Extraction Connection for Wood Chip Removal

The M4P TF360 router table features a 100 mm diameter dust extraction connection, incorporated into the routing protection assembly.

This connection allows the machine to be connected to a compatible external wood chip extractor, helping to collect chips and dust produced during machining.

An appropriate extraction system offers several benefits:

• Reduced accumulation of wood chips on the working table.

• Better visibility of the cutting area.

• Easier cleaning after use.

• Reduced dispersion of machining waste.

• Improved workshop organisation.

The machine does not include an integrated dust extractor. An external extraction system is required to use this function.

Suitable ventilation and protective equipment should also be used to minimise exposure to fine wood dust.

Dynamically Balanced Spindle for Smooth Operation

The M4P TF360 is equipped with a dynamically balanced routing spindle, designed to promote smooth operation during rotation.

This feature helps minimise vibrations associated with spindle rotation and contributes to consistent routing performance.

Combined with electronic speed control and handwheel-operated height adjustment, it provides a practical setup for everyday stationary woodworking operations.

The final machining quality also depends on the choice of router bit, its condition, correct installation and proper workpiece guidance.

A Compact Router Table for Woodworking Enthusiasts

With overall dimensions of 1030 × 500 × 500 mm and an approximate weight of 20 kg, the M4P TF360 is particularly suitable for woodworking workshops with limited space.

Its compact design allows it to be installed on a stable and appropriately sized workbench or support.

It is an attractive choice for users who want to perform stationary routing operations without investing in a larger spindle moulder.

The machine can be used for a wide variety of applications:

• Cutting grooves in wooden workpieces.

• Producing rebates.

• Profiling wooden edges.

• Creating decorative mouldings.

• Preparing components for woodworking joints.

• Manufacturing small furniture and joinery components.

• Carrying out DIY woodworking and cabinetmaking projects.

The M4P TF360 therefore offers a versatile solution for woodworking enthusiasts looking for a compact, adjustable and well-equipped routing machine.

Technical Specifications of the M4P TF360 Router Table

Included Equipment and Accessories

The M4P TF360 router table is supplied with:

• 6 mm collet.

• 8 mm collet.

• 12 mm collet.

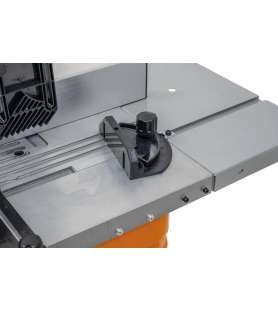

• Mitre guide.

• Protective hold-down device.

• Left table extension.

• Right table extension.

Router bits and an external dust extractor are not listed among the included accessories.

Why Choose the M4P TF360 Router Table?

The M4P TF360 combines several features that make it an attractive choice for woodworking enthusiasts looking for a versatile stationary router table.

Its 1500W motor and variable speed from 11,500 to 24,000 rpm allow cutting conditions to be adapted to different compatible router bits and timber species.

The 610 × 360 mm working table, complemented by two side extensions, provides a practical supporting surface for guiding wooden workpieces.

The handwheel-operated cutter height adjustment, routing fence with anodised aluminium faces and integrated graduated scales make it easier to perform different routing operations accurately.

Thanks to the 6, 8 and 12 mm collets, the machine can accommodate a wide range of compatible router bits, within the maximum permitted cutter diameter of 50 mm.

Finally, its 100 mm dust extraction connection allows the use of an external extraction system to improve wood chip collection.

Discover the M4P TF360 router table at Probois Machinoutils and equip your workshop with a compact and versatile woodworking machine for routing, grooving and edge profiling operations.
