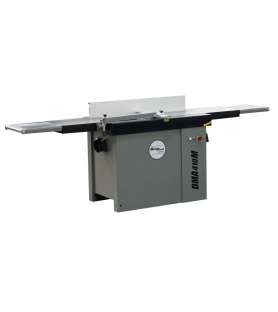

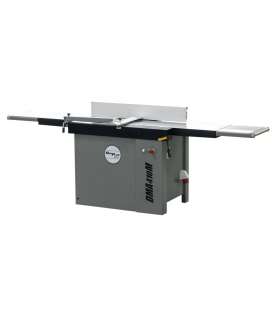

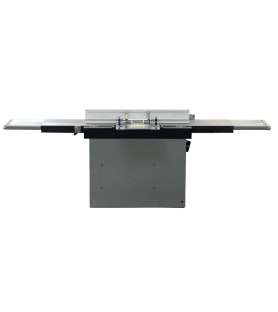

Professional 410 mm Holzprofi DMA410M-MONO Surface Planer with Helical Cutterhead

The Holzprofi DMA410M-MONO surface planer is designed for woodworking workshops and demanding users looking for large planing capacity, excellent stability and a high-quality surface finish.

With its generous 410 mm planing width, large cast iron tables and Ø70 mm helical cutterhead equipped with 44 carbide inserts, it provides the capacity required for accurately flattening and straightening large timber workpieces.

This 230V single-phase version is powered by a 3 kW / 4 HP S1 motor, making it possible to benefit from a large-capacity professional surface planer without requiring a three-phase power supply.

Generous 410 mm planing width

The Holzprofi DMA410M-MONO offers a substantial 410 mm planing width, providing excellent capacity for machining wide timber workpieces.

This makes the machine particularly suitable for woodworking workshops handling larger sections of solid timber and requiring a substantial working width.

With a maximum depth of cut of 4 mm, the machine allows efficient removal of material when flattening and preparing timber.

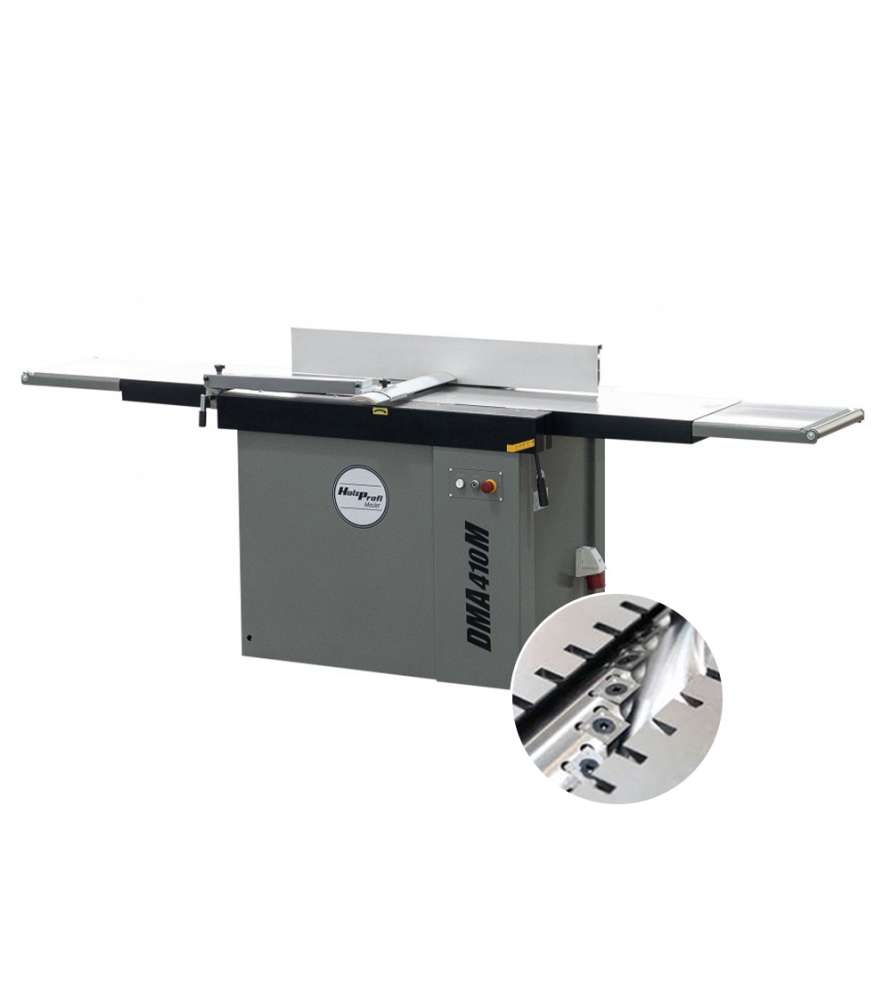

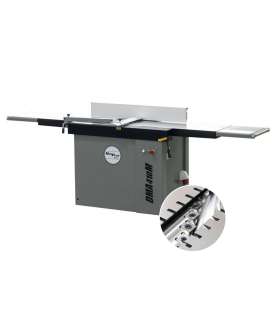

Ø70 mm helical cutterhead with 44 carbide inserts

One of the key features of the DMA410M-MONO is its Ø70 mm helical cutterhead equipped with 44 carbide inserts.

Unlike a conventional cutterhead fitted with straight planer knives, the helical arrangement of the carbide inserts provides a progressive cutting action. This design promotes a clean cut and excellent surface finish while also helping to reduce operating noise.

The carbide inserts provide excellent wear resistance and make cutterhead maintenance more convenient compared with conventional long planer knives.

The cutterhead operates at 4500 rpm.

Large 2000 mm cast iron planing tables

The accuracy of a surface planer depends greatly on the length, rigidity and stability of its tables. The DMA410M-MONO features large cast iron planing tables with a total length of 2000 mm.

The cast iron construction provides a rigid and stable working surface, helping to support the timber correctly as it passes over the cutterhead.

The generous table length is particularly useful when surface planing long workpieces, providing substantial support on both the infeed and outfeed sides of the machine.

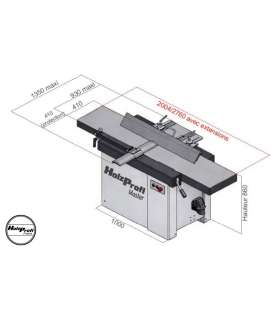

2800 mm total working length with the supplied extensions

The Holzprofi DMA410M-MONO is supplied as standard with one 410 x 400 mm infeed table extension and one 410 x 400 mm outfeed table extension.

With both extensions fitted, the total working length reaches 2800 mm.

This extended working surface provides additional support when machining long timber and makes it easier to guide large workpieces accurately across the surface planer.

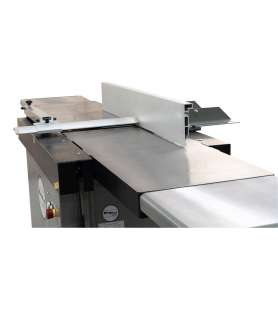

Large 1100 x 155 mm planer fence

The DMA410M-MONO is equipped with a generous 1100 x 155 mm planer fence.

Its large dimensions provide a substantial reference surface for supporting and guiding the workpiece during planing operations.

3 kW / 4 HP single-phase 230V motor

The Holzprofi DMA410M-MONO is powered by a 3 kW / 4 HP S1 motor operating from a 230V single-phase / 50 Hz power supply.

This configuration makes the DMA410M-MONO particularly attractive for workshops requiring the capacity of a 410 mm surface planer with a helical cutterhead while only having access to a single-phase electrical supply.

Ø120 mm dust extraction outlet

The surface planer is equipped with a Ø120 mm dust extraction outlet for connection to a suitable dust collector.

Effective extraction helps remove the large volume of wood chips produced during planing and contributes to keeping the machine and surrounding working area cleaner.

Heavy-duty construction for excellent stability

With a machine weight of 290 kg, the Holzprofi DMA410M-MONO features a substantial construction designed to provide excellent stability during operation.

This robust build is particularly beneficial when working with long, wide or heavy timber workpieces, where machine stability and table rigidity are essential for accurate surface planing.

Main advantages of the Holzprofi DMA410M-MONO Surface Planer

• Generous 410 mm planing width
• Ø70 mm helical cutterhead
• 44 carbide inserts
• Cutterhead speed: 4500 rpm
• Maximum depth of cut: 4 mm
• Large cast iron planing tables
• Total cast iron table length: 2000 mm
• 410 x 400 mm infeed and outfeed table extensions supplied as standard
• Total working length with extensions: 2800 mm
• Large 1100 x 155 mm planer fence
• Powerful 3 kW / 4 HP S1 motor
• 230V single-phase power supply
• Ø120 mm dust extraction outlet
• Heavy-duty 290 kg construction
• CE compliant

Technical specifications of the Holzprofi DMA410M-MONO
