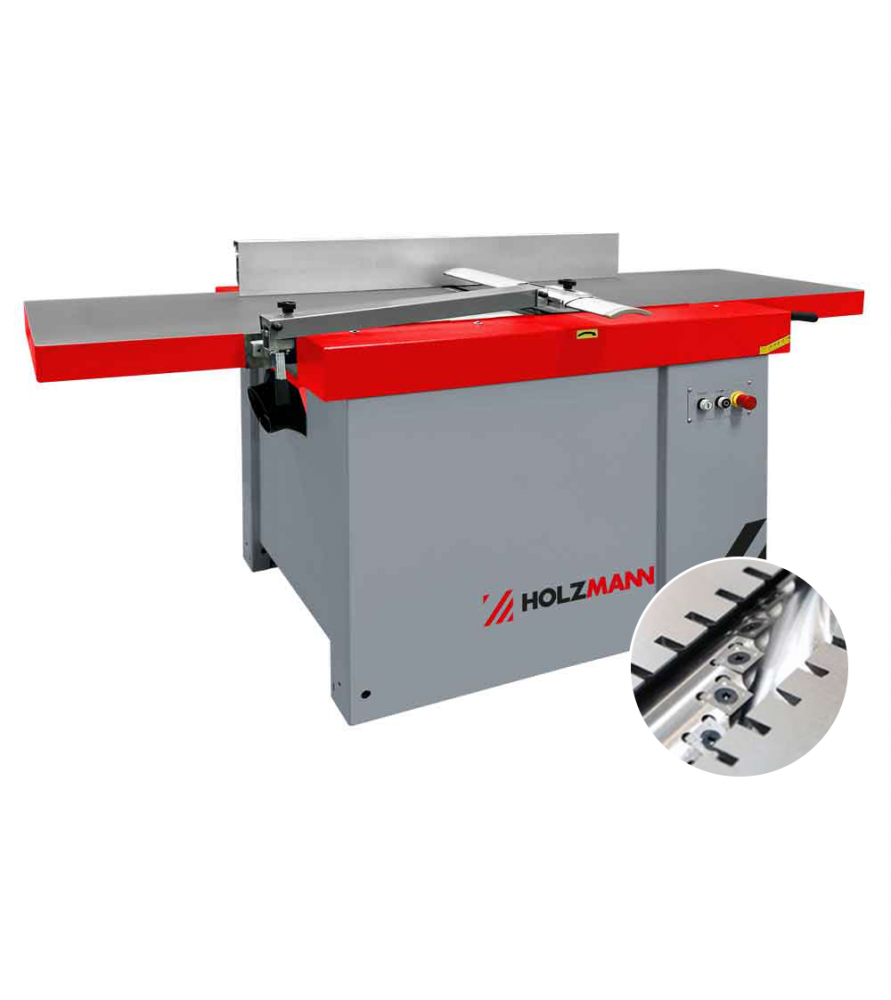

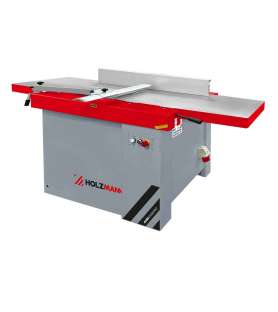

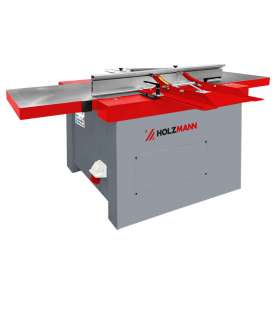

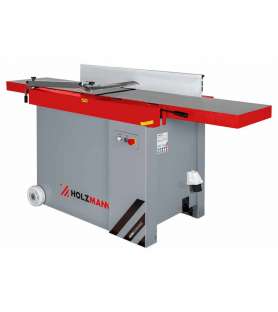

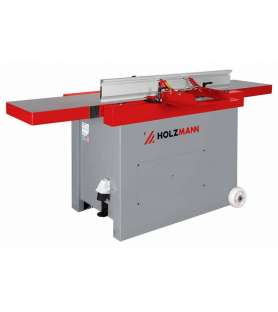

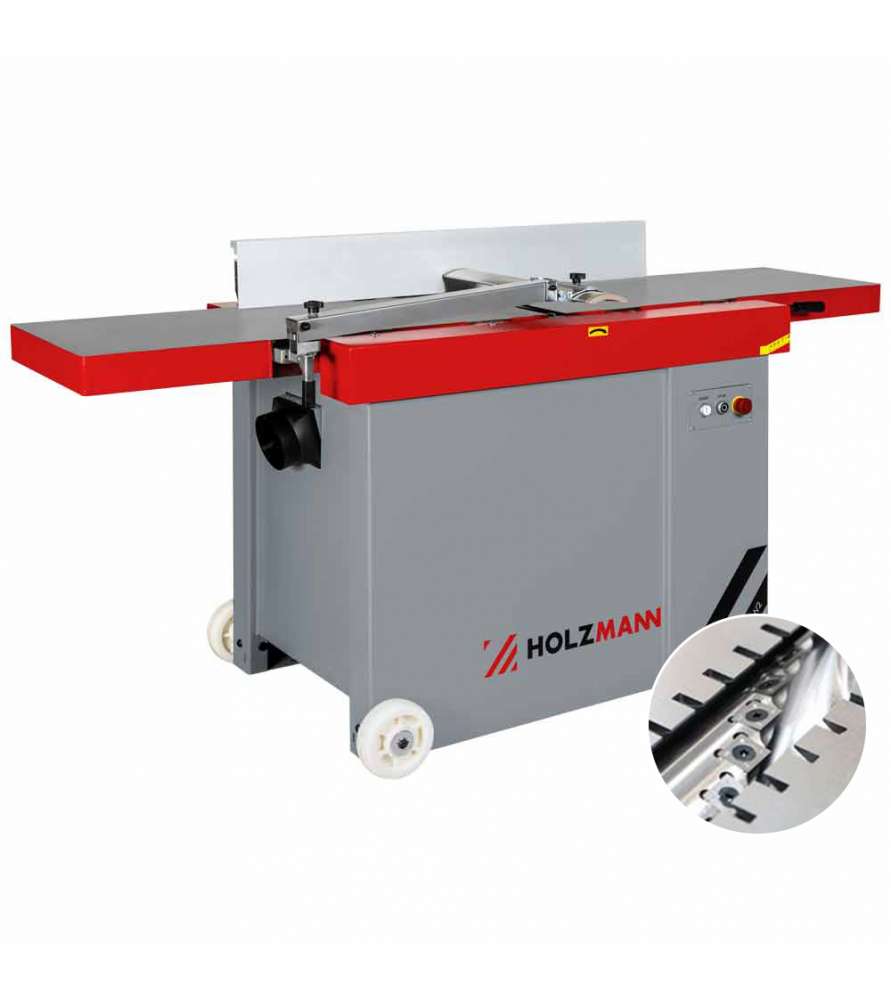

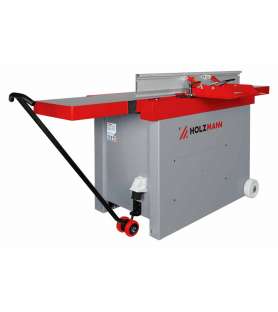

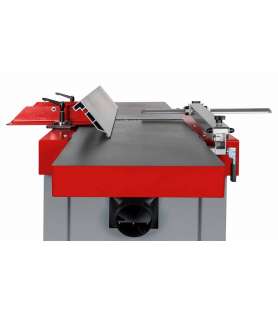

The HOLZMANN jointer impresses with its helical shaft and generous 410 mm planing width!

It is ideal for demanding planing work in professional applications. Perfect for joiners, carpenters, and other ambitious woodworkers who value performance, precision, and durability. The AHM410SMW2 offers a compact and economical solution without compromising on quality. Its 410 mm width is ideal for high-capacity needs and provides reliable performance for workshops looking for a functional and affordable solution. The helical tool rest ensures quiet, precise cutting with a superior finish, especially in hardwoods. Its progressive cutting action reduces noise and improves planing quality, making it the ideal choice for high-end projects. Its robust construction allows the installation of larger and heavier planing tables, ensuring absolute stability on all types of wood. This increased strength also reinforces the planing fence, making this machine the ideal choice for professionals who demand precision and power in their planing work.

Advantages of the Holzmann AHM410SMW2 jointer with helical shaft - 230V :

• spiral cutterhead with 44 mounted cutter-inserts (15x15x2.5mm-30°) - for an especially clean cutting pattern and less noise
• generously dimensioned work tables with a length of 2000 mm - for precise and safe guidance of even large workpieces

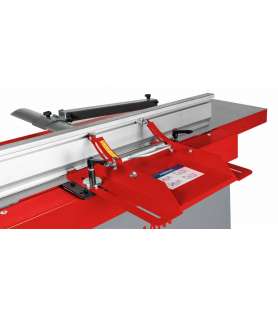

• tiltable planing fence (90°-45°) - flexibly adjustable for a wide range of applications
• solid fence with the dimensions 1100 x 150 mm - stable and precise

Technical specifications of the Holzmann AHM410SMW2 jointer with helical shaft - 230V :

• thicknesser table height : 850 mm
• max. thicknessing cutting depth : 4 mm
• planer fence : 1100 x 150 mm
• fence tilt : 90 - 45°
• motor power s6 : 3000 W
• voltage : 230 V / 50 Hz
• total dimensions : 2080 x 740 x 1127 mm
• shaft diameter : Ø 70 mm
• shaft speed : 5500 min-1
• sound power level : 107 dB(A)
• sound pressure level : 98 dB(A)
• gross weight : 351 kg
• net weight : 290 kg

The Holzmann AHM410SMW2 jointer with helical shaft - 230V comes with :

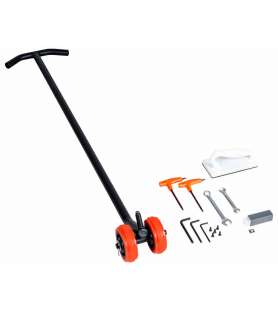

44 mounted cutter-inserts + 5 spare cutter-inserts, mountable transportation device for easy transport in the workshop

Important recommendation from Probois for many woodworking machines :

Before starting up, always check the inside of your machine, check that the belts are correctly positioned, tighten the bolts, grease the tables, etc., as various transport operations cause vibrations.

Always use a 2.5² wire extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of bench grinders, triple sockets, or power strips is PROHIBITED.

Provide an electric meter with special machine start-up fuses of at least 16A.

Have a standard electric meter with neutral and ground connections

Always work with a chip extractor for your health and to protect the machine's warranty.

Always grease cast iron tables with wood slides.

Always work with the guards in place.

Do not work with dull or blunt knives; this can damage the mechanism, the planer feed, or break the belt.

The machine won't start? The chip ejection guard is probably incorrectly installed on the jointer/planer side; it's a safety feature!
