Reference: BT500PF-230V
The Bernardo T500PF 230V spindle moulder is a particularly versatile woodworking machine supplied as standard with a 1000 x 215 mm sliding table, an interchangeable Ø30 mm spindle and a second spindle for using 6, 8 and 12 mm shank router cutters.
Its large 600 x 400 mm cast-iron table, 4 spindle speeds from 1400 to 8650 rpm and 1500 W S1 / 2100 W S6 single-phase motor make it a compact yet very well-equipped spindle moulder for joinery and cabinetmaking work.
230V single-phase version. Sliding table, mitre fence, 6 / 8 / 12 mm collets and digital speed display included as standard.
The Bernardo T500PF 230V is a single-phase woodworking spindle moulder with sliding table, particularly well suited to joiners, cabinetmakers and demanding DIY users looking for a compact machine without giving up the features of a genuine spindle moulder.
It combines a solid cast-iron table, an interchangeable 30 mm spindle, four spindle speeds and a 1000 mm sliding table, making it easier to work with larger workpieces and to carry out end-grain machining operations.
One of the major features of this Bernardo spindle moulder is its second interchangeable spindle for shank-mounted router cutters. 6, 8 and 12 mm collets are supplied as standard, considerably increasing the range of possible applications.
The Bernardo T500PF occupies an interesting position between small workshop spindle moulders and larger professional machines.
Its design is very close to that of the Holzprofi Starter MX5108, with a similar concept based around a 600 x 400 mm cast-iron table, interchangeable 30 mm spindle and approximately 1000 mm sliding table.
Compared with a compact spindle moulder such as the Holzmann FS160L, the Bernardo T500PF stands out especially through its very complete standard equipment, including the additional spindle for shank cutters, the corresponding collets and the digital spindle speed display.
The Bernardo T500PF is equipped with a genuine 30 mm spindle, a widely used size that allows a broad range of cutter blocks, profile cutters and spindle moulder tooling to be fitted.
The spindle is interchangeable, a particularly useful feature when carrying out repeated operations or when different types of tooling need to be used successively.
The spindle offers a vertical adjustment range of 110 mm and a useful clamping length of 95 mm.

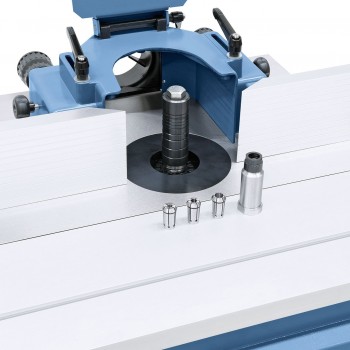

One of the main advantages of the T500PF is the inclusion of a second interchangeable spindle designed for shank-mounted router cutters.
The machine is supplied with 6 mm, 8 mm and 12 mm collets. This configuration makes it possible to use different types of shank cutters directly on the machine and significantly increases its versatility.
The Bernardo T500PF can therefore complement the conventional functions of a spindle moulder and is suitable for a wide variety of profiling, grooving, moulding and shaping operations.
Unlike many compact spindle moulders supplied without a sliding table, the Bernardo T500PF comes as standard with a 1000 x 215 mm sliding table.
This sliding table makes workpiece guidance easier and is especially useful for larger components or operations requiring smooth and controlled movement past the cutter.
The machine is also supplied with an adjustable mitre fence for angled machining operations.
The main table of the T500PF is made from solid cast iron. Its dimensions of 600 x 400 mm provide a stable and rigid working surface.
The cast-iron construction helps reduce vibration during machining and gives the machine the stability required for regular and accurate woodworking operations.
The Bernardo T500PF offers four spindle speeds:
This wide speed range allows the spindle speed to be adapted to the cutter diameter and the type of machining being carried out.
A digital speed display is included as standard, making it easier to check the selected spindle speed.
The T500PF 230V is equipped with a motor delivering 1.5 kW in S1 duty and 2.1 kW in S6 duty.
Its 230V single-phase power supply makes it suitable for many workshops that do not have access to a three-phase electrical supply.
It therefore provides an attractive solution for users looking for a genuine 30 mm spindle moulder with sliding table while remaining on a standard 230V power supply.
The spindle moulder hood is equipped with precisely adjustable aluminium fence faces.
The machine also includes workpiece pressure and protection devices designed to help keep the timber correctly positioned during machining.
A Ø100 mm dust extraction outlet allows the spindle moulder to be connected to a suitable dust collector.
The Bernardo T500PF accepts tools with a maximum diameter of 160 mm.
The maximum retractable tool diameter below the table is also 160 mm, providing a broad range of possibilities for a machine of this size and category.
| Model | Bernardo T 500 PF |
| Bernardo reference | 09-1251B |
| Power supply | 230V single-phase |
| Motor power S1 100% | 1.5 kW / 1500 W (2.0 HP) |
| Motor power S6 40% | 2.1 kW / 2100 W (2.8 HP) |
| Table dimensions | 600 x 400 mm |
| Sliding table dimensions | 1000 x 215 mm |
| Working height | 820 mm |
| Spindle diameter | 30 mm |
| Spindle height adjustment | 110 mm |
| Useful spindle length | 95 mm |
| Maximum tool diameter | 160 mm |
| Maximum retractable tool diameter | 160 mm |
| Spindle speeds | 1400 / 3790 / 5670 / 8650 rpm |
| Collets for shank cutters | 6 / 8 / 12 mm |
| Dust extraction outlet | Ø100 mm |
| Machine dimensions | 1040 x 730 x 1130 mm |
| Weight | Approx. 97 kg |
The Bernardo T500PF 230V is therefore particularly suitable for users looking for a compact but genuinely versatile single-phase spindle moulder. Its 30 mm spindle, sliding table and additional interchangeable spindle for shank cutters allow it to cover a wide range of woodworking operations without immediately moving up to a much larger and heavier professional spindle moulder.
