Reference: BT500PF-400V
The Bernardo T500PF 400V spindle moulder is a highly versatile woodworking machine supplied as standard with a 1000 x 215 mm sliding table, an interchangeable Ø30 mm spindle and a second spindle for using 6, 8 and 12 mm shank router cutters.
Its large 600 x 400 mm cast-iron table, 4 spindle speeds from 1400 to 8650 rpm and 1500 W S1 / 2100 W S6 three-phase motor make the T500PF a compact yet particularly well-equipped spindle moulder for joinery and cabinetmaking work.
400V three-phase version. Sliding table, mitre fence, 6 / 8 / 12 mm collets and digital speed display included as standard.
The Bernardo T500PF 400V is a three-phase woodworking spindle moulder with sliding table, particularly suitable for joiners, cabinetmakers, professional workshops and demanding woodworking enthusiasts looking for a compact machine without giving up the capabilities of a genuine 30 mm spindle moulder.
It combines a solid cast-iron table, an interchangeable Ø30 mm spindle, four spindle speeds and a 1000 mm sliding table, making it easier to work with larger workpieces and to carry out end-grain machining operations.
The T500PF also stands out thanks to its second interchangeable spindle for shank router cutters. 6, 8 and 12 mm collets are supplied as standard, considerably increasing the versatility and range of applications of this spindle moulder.
The Bernardo T500PF occupies an interesting position between small compact spindle moulders and larger professional machines. It is an attractive solution for users looking for a 400V three-phase spindle moulder with sliding table while retaining relatively compact dimensions.
Its design concept is very similar to that of the Holzprofi Starter MX5108, with a 600 x 400 mm cast-iron table, interchangeable 30 mm spindle and approximately 1000 mm sliding table.
Compared with a compact spindle moulder such as the Holzmann FS160L, the Bernardo T500PF stands out especially through its very comprehensive standard equipment: sliding table, interchangeable Ø30 mm spindle, second spindle for shank cutters, matching collets and digital speed display.
The Bernardo T500PF is equipped with a genuine 30 mm spindle, a widely used size allowing a broad range of cutter blocks, profile cutters and other spindle moulder tooling to be fitted.
The spindle is interchangeable, a particularly useful feature for changing the machine configuration and taking advantage of its different machining possibilities.
The spindle offers a vertical adjustment range of 110 mm and a useful clamping length of 95 mm.
One of the main advantages of the Bernardo T500PF is its second interchangeable spindle specially designed for shank router cutters.
The machine is supplied with 6 mm, 8 mm and 12 mm collets. This configuration makes it possible to use different types of shank cutters directly on the machine and significantly increases its versatility.
The T500PF can therefore perform a wide range of profiling, grooving, moulding and shaping operations, in addition to conventional spindle moulding work carried out with tooling fitted to the 30 mm spindle.
The Bernardo T500PF is supplied as standard with a 1000 x 215 mm sliding table.
The sliding table makes workpiece guidance easier and provides a real advantage when working with larger components, machining workpiece ends or carrying out operations requiring smooth and controlled movement past the cutter.

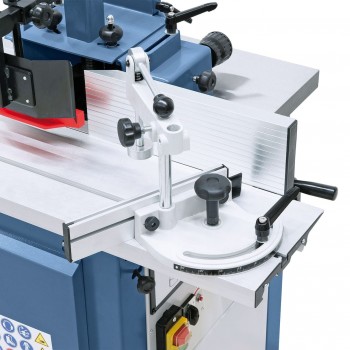

The machine is also supplied with a mitre fence for angled machining operations.
The main table of the T500PF is made from solid cast iron. Its 600 x 400 mm dimensions provide a stable and rigid working surface.
The cast-iron construction helps reduce vibration during machining and provides the stability required for smooth and accurate woodworking operations.
The Bernardo T500PF offers four spindle speeds:
This wide speed range allows the spindle speed to be adapted to the diameter and type of cutter being used.
A digital speed display is included as standard, making it easier to check the selected spindle speed.
The T500PF 400V is equipped with a motor delivering 1.5 kW in S1 duty and 2.1 kW in S6 duty.
This version features a 400V three-phase power supply and is particularly suitable for professional and private workshops equipped with three-phase electricity.
It therefore provides an attractive solution for users looking for a three-phase woodworking spindle moulder with 30 mm spindle and sliding table in a relatively compact format.
The spindle moulder hood is equipped with precisely adjustable aluminium fence faces.
The machine also features workpiece pressure and protection devices designed to help keep the timber correctly guided during machining.
A Ø100 mm dust extraction outlet allows the spindle moulder to be connected to a suitable dust collector.
The Bernardo T500PF accepts tooling with a maximum diameter of 160 mm.
The maximum retractable tool diameter below the table is also 160 mm, providing a wide range of machining possibilities for a compact spindle moulder in this category.
| Model | Bernardo T 500 PF |
| Power supply | 400V three-phase |
| Motor power S1 100% | 1.5 kW / 1500 W (2.0 HP) |
| Motor power S6 40% | 2.1 kW / 2100 W (2.8 HP) |
| Table dimensions | 600 x 400 mm |
| Sliding table dimensions | 1000 x 215 mm |
| Working height | 820 mm |
| Spindle diameter | 30 mm |
| Spindle height adjustment | 110 mm |
| Useful spindle length | 95 mm |
| Maximum tool diameter | 160 mm |
| Maximum retractable tool diameter | 160 mm |
| Spindle speeds | 1400 / 3790 / 5670 / 8650 rpm |
| Collets for shank cutters | 6 / 8 / 12 mm |
| Dust extraction outlet | Ø100 mm |
| Machine dimensions | 1040 x 730 x 1130 mm |
| Weight | Approx. 97 kg |
The Bernardo T500PF 400V is particularly suitable for users looking for a compact, versatile and well-equipped three-phase spindle moulder. Its interchangeable 30 mm spindle, standard sliding table and additional spindle for shank router cutters provide a wide range of possibilities for joinery and cabinetmaking without requiring a much larger professional machine.
