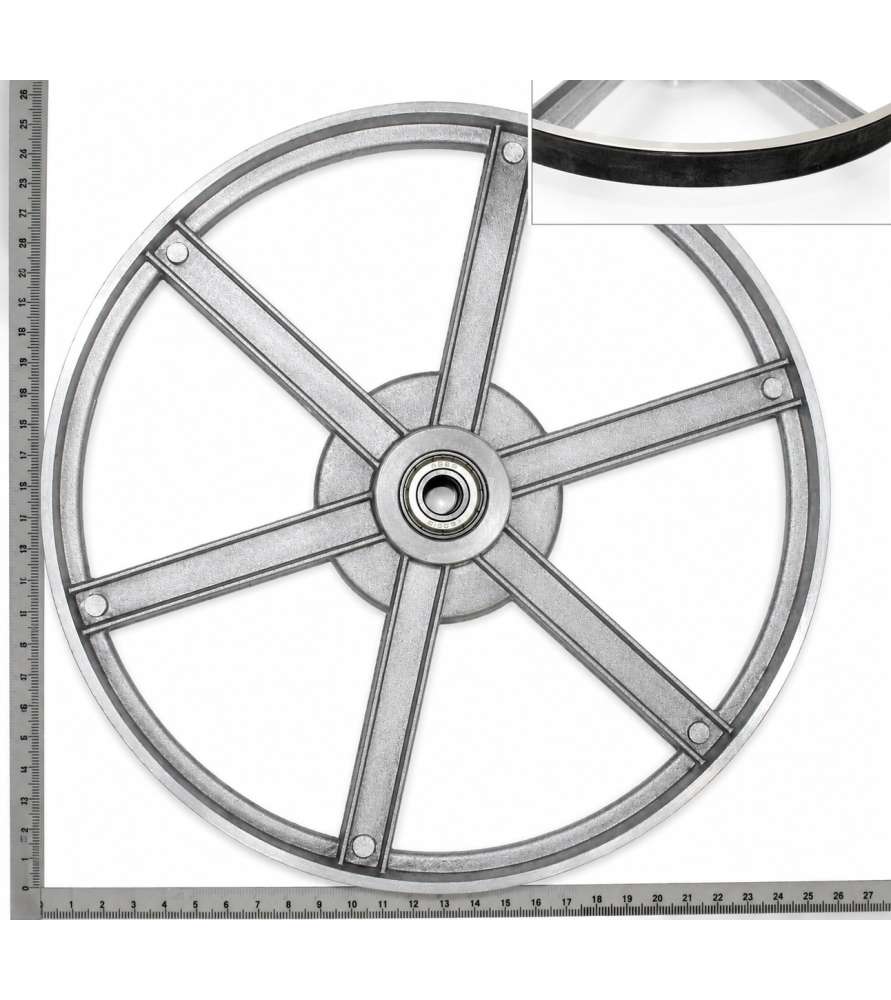

Complete upper band wheel for Scheppach HBS261 and HBS250 band saws

This Scheppach upper band wheel is a complete replacement part designed in particular for the Scheppach HBS261 and HBS250 band saws.

With Scheppach reference 5901505010, this assembly is designed to replace the original upper wheel when it is worn, damaged or when its tyre or bearing has deteriorated and requires replacement.

The wheel is supplied complete with bearing and tyre, allowing the entire assembly to be replaced without having to reuse these components from the old wheel.

What is the purpose of the upper wheel on a band saw?

The upper wheel is an essential component in the operation of a band saw. Together with the lower wheel, it guides the band saw blade and ensures its continuous movement during cutting.

The upper wheel is also involved in blade tensioning and tracking, helping to keep the blade correctly positioned on the wheels.

Its condition is therefore important for smooth blade movement and correct positioning during use of the machine.

Upper wheel with tyre for correct blade guidance

This Scheppach wheel is supplied with its tyre. Located around the circumference of the wheel, this component provides the contact surface on which the band saw blade runs.

Over time and with regular use, the tyre may become worn, marked, damaged or deformed. Significant deterioration can affect the positioning and tracking of the blade on the wheel.

As reference 5901505010 is supplied as a complete upper wheel with tyre, it provides a practical replacement solution when several components of the original wheel are worn or when the complete assembly needs to be replaced.

Upper band wheel supplied with bearing

The wheel is also supplied with its 6001 Z bearing. The bearing allows the wheel to rotate around its shaft and should operate smoothly without excessive play or tight spots.

A worn bearing may cause unusual noise, excessive play or irregular wheel rotation. If the wheel, tyre or bearing shows significant wear, replacing the complete assembly can help restore correct operation of the band saw.

Dimensions of the Scheppach 5901505010 upper wheel

The upper band wheel has the following dimensions and specifications:

• Outside diameter: 255 mm
• Width: 24 mm
• Bore: Ø 28 mm
• Bearing: 6001 Z

Compatible Scheppach band saws

The Scheppach upper band wheel, reference 5901505010, is designed in particular for the following band saws:

• Scheppach HBS261
• Scheppach HBS250

Before ordering, we recommend checking the exact model and version of your machine as well as the reference of the original part, especially when several versions of the same band saw have been produced.

When should the upper band saw wheel be replaced?

Replacement of the upper wheel may be necessary when wear or damage affects correct blade operation.

The upper wheel should be checked if you notice any of the following symptoms:

• severely worn, damaged or deformed tyre;
• excessive play in the wheel;
• noisy bearing or bearing with tight spots;
• irregular wheel rotation;
• damaged or deformed wheel;
• difficulty keeping the blade correctly positioned on the wheel.

Before replacing the wheel, it is also advisable to check the blade tension, blade tracking and the general condition of the blade guide system in order to correctly identify the cause of the problem.

Technical specifications

Complete replacement assembly for your Scheppach band saw

With the wheel, tyre and bearing supplied as one complete assembly, Scheppach reference 5901505010 makes it possible to replace the upper wheel without having to order the main components separately.

This spare part is particularly suitable for repairing a Scheppach HBS261 or HBS250 band saw with a worn or damaged upper wheel.
