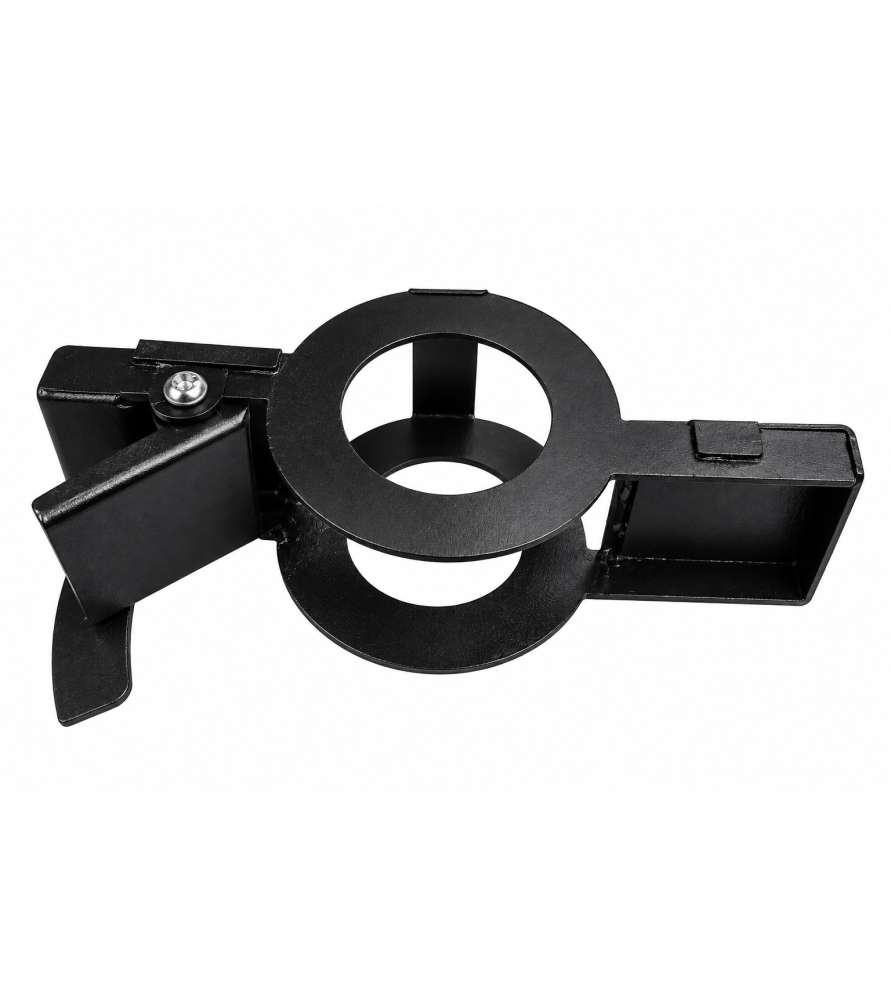

Right Sanding Belt Clamping Device for 400 mm and 560 mm Drum Sanders

This right-hand sanding belt clamping device is a spare part designed for the abrasive fastening system used on several 560 mm drum sanders from Holzmann, Holzprofi, Leman and Bernardo.

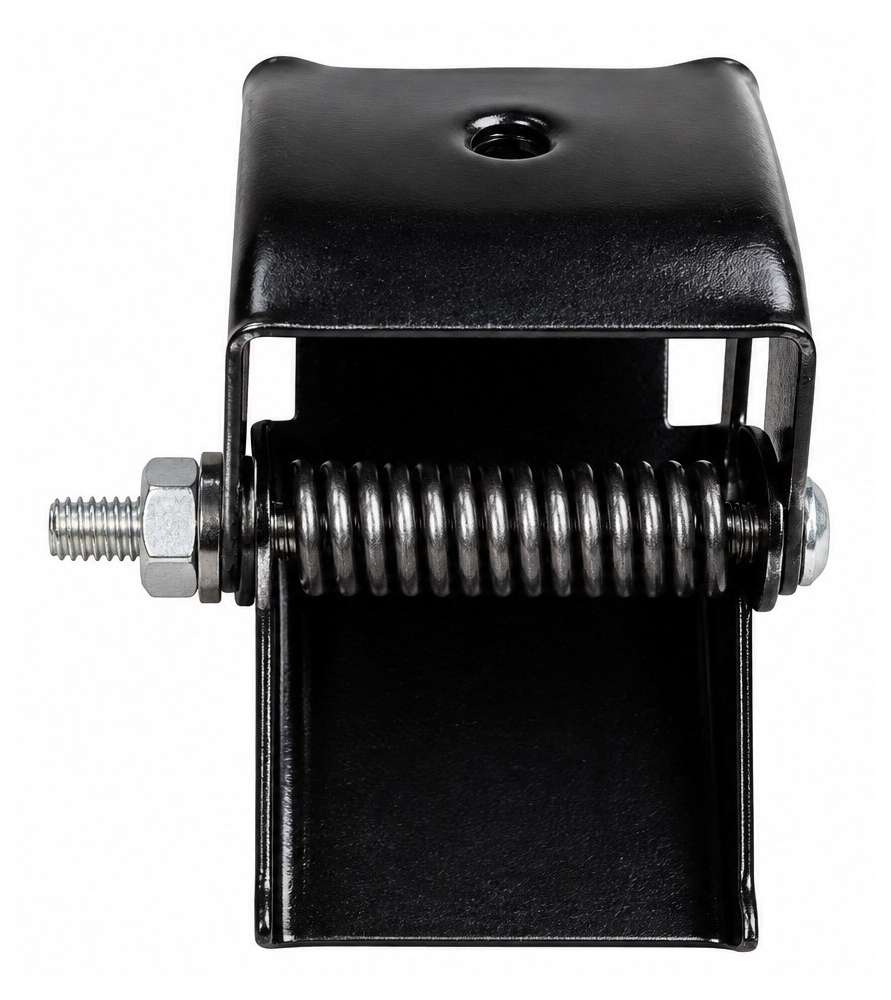

Installed at the end of the sanding drum, this mechanism is designed to securely hold the end of the abrasive belt, helping to keep it correctly positioned on the drum during operation.

This part corresponds to the right-hand clamping device. A different left-hand version is also available, so it is important to identify the required side before ordering.

Function of the Sanding Belt Clamping Device

On a drum sander, the abrasive belt is wrapped around the sanding drum and secured at both ends by dedicated fastening mechanisms.

This clamping device is designed to:

• secure the end of the abrasive belt;
• hold the abrasive firmly on the sanding drum;
• help keep the abrasive belt correctly positioned;
• make fitting and replacing the abrasive belt easier;
• prevent the end of the abrasive belt from coming loose during sanding.

The correct operation of this mechanism is essential for ensuring reliable fastening of the abrasive belt and normal operation of the drum sander.

When Should the Clamping Device Be Replaced?

The abrasive belt clamping device may need to be replaced when it shows signs of wear or damage.

Replacement may be necessary when:

• the abrasive belt can no longer be securely clamped;
• the mechanism is bent, broken or damaged;
• part of the fastening mechanism is missing;
• the system can no longer securely hold the end of the abrasive belt;
• the abrasive belt becomes loose or comes free during operation.

Compatible Machines

This right-hand sanding belt clamping device is suitable for the following drum sanders:

• Holzmann ZS400U
• Holzmann ZS560U
• Holzmann ZS560FU
• Holzprofi Maker PB560
• Leman PON400
• Leman PON560
• Bernardo ZSM405
• Bernardo ZSM560
• Bernardo ZSM560 Vario

Specifications

Check the Mounting Side Before Ordering

IMPORTANT: this listing is for the RIGHT-HAND sanding belt clamping device only. A different LEFT-HAND version is also available.

BEFORE PURCHASING: always check the shape of your original part and the mounting side. The list of compatible machines does not replace this check, as machines may have been modified during their production period. If in doubt, please send us the exact machine model, month and year of manufacture, serial number from the machine identification plate and a photo of the original part.
