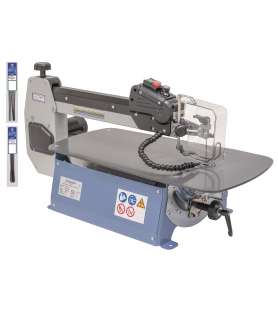

General description of the Bernardo SS 560 N Vario scroll saw :

• 650 x 350 mm aluminum table
• 80W asynchronous motor
• Variable cutting speed from 550 to 1550 cps/min
• It can tilt its table up to 30° to the left and 45° to the right
• Equipped with a blower to keep the work area clean
• Features a 45mm suction elbow

Technical characteristics of the Bernardo SS 560 N Vario scroll saw :

• Swan neck: 560 mm (maximum cut 558 mm)
• Maximum thickness: 50 mm
• Table dimensions: 650 x 350 mm in anodized aluminum
• Thick sheet metal frame
• Height of the work table: 192 mm
• Quick clamp
• Blade length: 130 mm (5’’° Tilting table 30° to the left and 45° to the right)
• Multidirectional blow gun
• Cutting speed: 550 to 1550 cps/min with electronic variator
• Asynchronous motor: 80 W / 230 V / 50 Hz
• Suction elbow: Ø45 mm
• Dimensions: 865x360x420 mm
• Machine base: 475x335 mm
• Maximum sound pressure: 80 dB
• Weight: 30 kg
• Packaging 1005 x 435 x 475 mm / 33.5 kg
