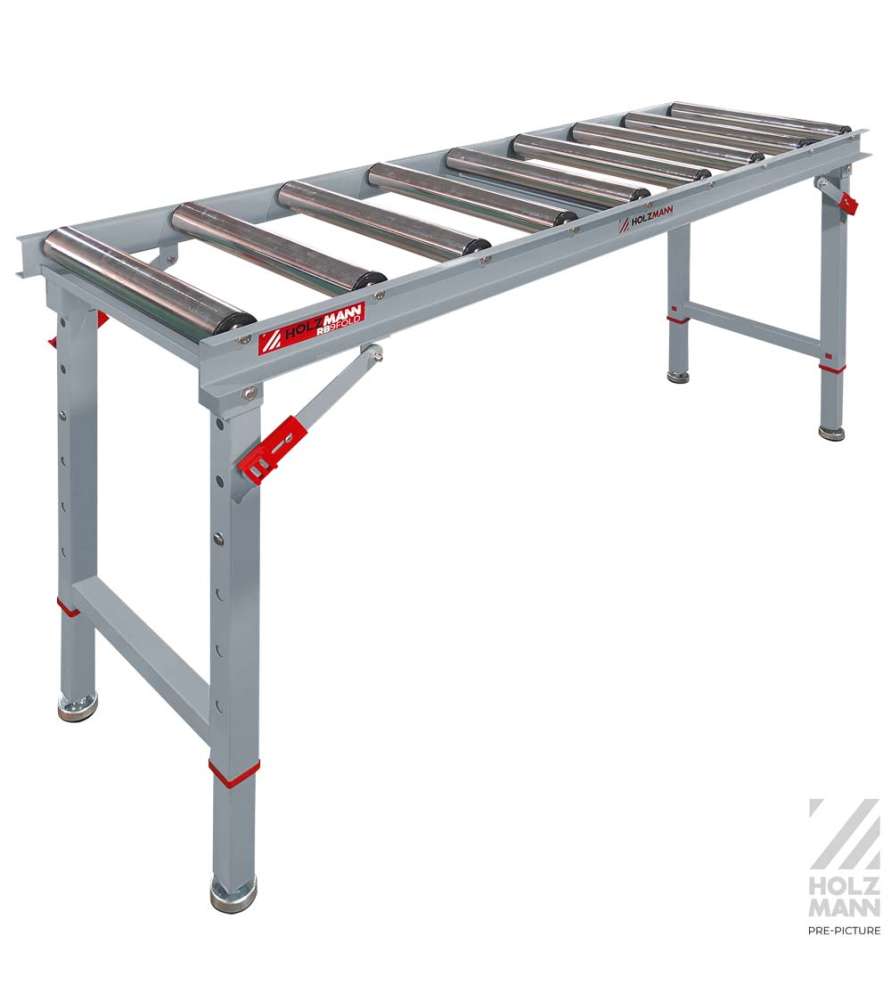

The Holzmann RB9FOLD foldable roller table is a practical workshop accessory designed to facilitate the support, guidance and movement of long workpieces during machining and material handling operations.

Equipped with 9 rollers over a total length of 1650 mm, it allows boards, panels, profiles and other long or bulky workpieces to move smoothly while remaining properly supported.

With a maximum load capacity of 200 kg, the RB9FOLD can be positioned at the infeed or outfeed side of various stationary workshop machines.

Its major advantage is its foldable construction. The legs can be folded and unfolded without tools, considerably reducing the space required when the roller table is not in use.

Roller Table with 9 Rollers

The Holzmann RB9FOLD is equipped with 9 rollers distributed over a total table length of 1650 mm.

The rollers allow workpieces to move smoothly along the table while providing continuous support during machining.

Each roller measures Ø57 x 385 mm, with a spacing of 190 mm between the rollers.

The roller table has an overall width of 490 mm, while Holzmann specifies a roller width of 470 mm.

This configuration provides a large supporting area, making the RB9FOLD particularly suitable for handling long workpieces.

Foldable Roller Table for Space-Saving Storage

One of the key advantages of the Holzmann RB9FOLD is its folding design.

The support legs can be folded and unfolded without tools, making it quick and easy to set up the roller table when required and store it again after use.

In its working position, the minimum height is 650 mm. Once the legs are folded, the height is reduced to just 140 mm.

This compact folded size makes storage considerably easier, particularly in workshops where available floor space is limited.

The RB9FOLD can therefore be stored against a wall or in a dedicated storage area instead of permanently occupying valuable workshop space.

Adjustable Height from 650 to 1100 mm

The Holzmann RB9FOLD roller table offers 6 height adjustment positions.

Its working height can be adjusted between 650 and 1100 mm, allowing the table to be adapted to different machines and working heights.

Correctly adjusting the roller table makes it possible to support the workpiece at approximately the same height as the machine table.

This is particularly useful when the RB9FOLD is positioned at the infeed or outfeed side of a stationary machine.

The adjustable design also means that one roller table can be used with several different machines in the workshop.

Levelling Feet with Rubber Pads

The RB9FOLD is equipped with levelling feet with rubber pads.

These allow the position of the roller table to be adjusted precisely and help ensure stable contact with the floor.

The rubber pads provide additional support and help keep the roller table correctly positioned during use.

This feature is particularly useful when setting the roller table to match the working height of the machine.

Maximum Load Capacity of 200 kg

Despite its practical folding design, the Holzmann RB9FOLD offers a substantial maximum load capacity of 200 kg.

It can therefore support relatively heavy materials during machining and handling operations.

This capacity makes it suitable for supporting thick boards, solid wood workpieces, panels, profiles and other long or bulky materials.

The load should always be correctly distributed across the rollers and the roller table should be positioned securely before use.

Ideal for Machine Infeed and Outfeed

The Holzmann RB9FOLD foldable roller table can be positioned at either the infeed or outfeed side of a machine.

At the infeed side, it supports long workpieces before they enter the machine.

At the outfeed side, it supports the workpiece as it leaves the machine, reducing the amount of weight that the operator needs to support manually.

The RB9FOLD can be particularly useful alongside:

• circular saws;

• bandsaws;

• thickness planers;

• surface planers;

• sanding machines;

• drilling machines;

• other suitable stationary workshop machines.

It can also be used independently as a practical roller support for material handling operations.

Easier Handling of Long Workpieces

Long workpieces can become difficult to control when a significant section extends beyond the machine table.

Without additional support, the unsupported part of the material can drop under its own weight and make it more difficult to guide the workpiece correctly.

The RB9FOLD roller table provides an additional supporting surface while allowing the workpiece to move freely over the rollers.

Its 1650 mm length provides significantly more support than a conventional stand fitted with a single roller.

This makes it particularly useful when regularly working with long boards, panels or profiles.

Technical Specifications of the Holzmann RB9FOLD

Roller Table or Single Roller Stand?

A conventional roller stand usually features a single roller and provides only one supporting point beneath the workpiece.

The Holzmann RB9FOLD, on the other hand, is equipped with 9 rollers over a length of 1650 mm.

The workpiece is therefore supported over a much greater distance as it moves towards or away from the machine.

This provides a more continuous supporting surface and makes the roller table particularly useful for long workpieces.

For workshops that regularly process long boards, panels or other bulky materials, a multi-roller table can provide considerably more support than a simple single-roller stand.

A Versatile Roller Table for the Workshop

Thanks to its foldable design, the RB9FOLD can be used with different machines according to the work being carried out.

It can be set up whenever additional support is required and folded away again once the job is complete.

This versatility is particularly useful in workshops where several machines share the same working space.

Instead of installing permanent extension tables around each machine, the RB9FOLD roller table can be moved and positioned where it is needed.

Compact Design When Folded

Workshop space is often limited, making compact storage an important advantage.

The Holzmann RB9FOLD has been designed so that its legs can be quickly folded when the roller table is not in use.

Once folded, its height is reduced to only 140 mm.

No tools are required to fold or unfold the legs, making it quick to switch between the working and storage positions.

This practical design makes the RB9FOLD particularly suitable for workshops where equipment needs to be stored after use.

Why Choose the Holzmann RB9FOLD Roller Table?

The Holzmann RB9FOLD foldable roller table combines a high load capacity with a practical and space-saving design.

Its 9 rollers, 200 kg maximum load capacity, 1650 mm length and adjustable height with 6 positions from 650 to 1100 mm make it suitable for a wide variety of workshop applications.

The levelling feet with rubber pads help provide a stable setup, while the tool-free folding legs make storage quick and convenient.

Whether positioned at the infeed or outfeed side of a machine, the Holzmann RB9FOLD roller table provides valuable additional support for long and bulky workpieces while remaining compact and easy to store when not in use.
