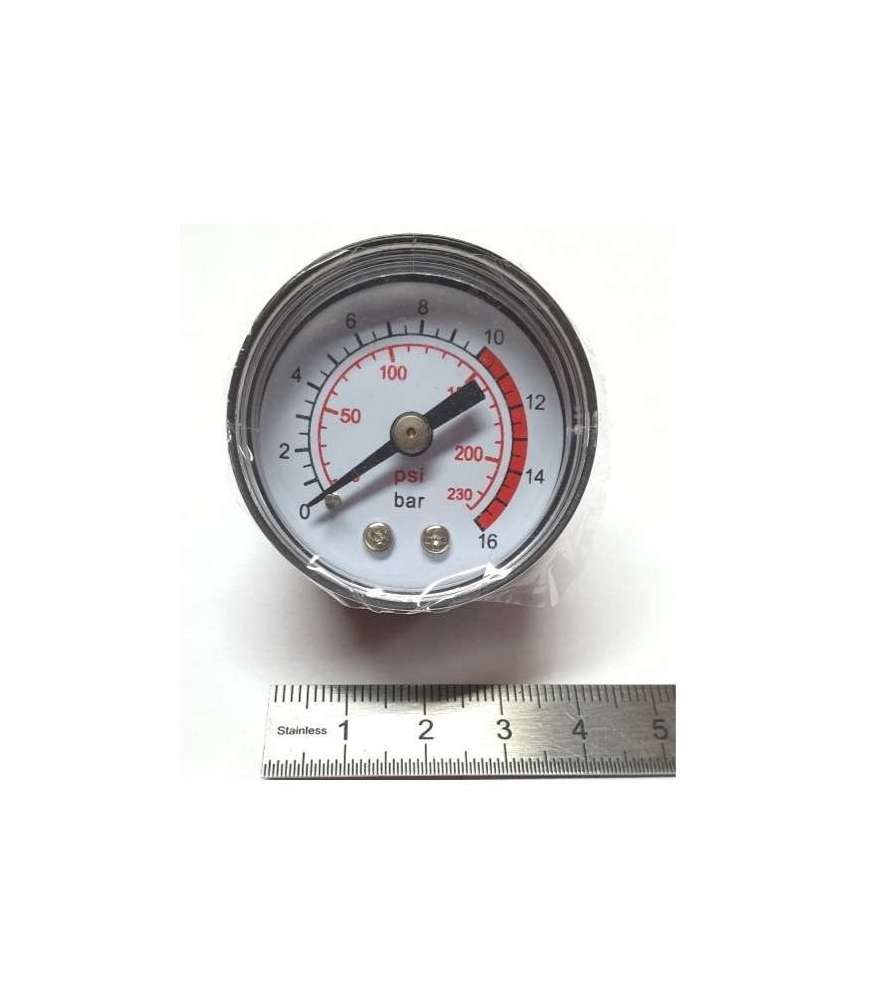

16 bar Ø40 mm pressure gauge for compressors and pneumatic equipment

This 16 bar pressure gauge with 40 mm dial diameter is an essential monitoring component for measuring pressure in compressed air systems, compressors, pumps and pneumatic equipment. It allows quick pressure checking and easy replacement of an old, damaged, leaking or unreadable pressure gauge.

A compact and easy-to-read pressure gauge

With its 40 mm diameter dial, this pressure gauge offers an excellent balance between compact size and clear readability. Its scale up to 16 bar makes it suitable for many common workshop, garage, maintenance and repair applications.

It is especially suitable for air compressors, pressure systems, pneumatic installations, air tanks, regulators and small equipment requiring reliable pressure monitoring.

A standard replacement part for many applications

This replacement pressure gauge may fit many machines and devices using the same dial diameter, pressure range and connection type. Before ordering, please compare the specifications of your original pressure gauge: dial diameter, maximum pressure, connection position, thread type and available installation space.

Replacing a worn or defective pressure gauge is recommended when the needle no longer returns correctly to zero, pressure readings become inaccurate, the lens is cracked or leakage appears around the fitting.

Important information before purchase

PLEASE CHECK THE DIMENSIONS AND CONNECTION TYPE OF YOUR ORIGINAL PRESSURE GAUGE BEFORE ORDERING. Depending on the compressor brand and equipment model, several similar but non-compatible versions may exist.

This pressure gauge must be installed without overtightening the thread. A suitable sealing product may be required depending on the installation. Never exceed the maximum pressure indicated on the dial.

Main features

Type: standard pressure gauge

Maximum pressure: 16 bar

Dial diameter: 40 mm

Applications: compressor, compressed air, pump, pneumatic equipment, pressure monitoring

Function: pressure measurement and display

Mounting: connection compatibility must be checked before installation

Why replace a faulty pressure gauge?

A defective pressure gauge can provide incorrect pressure readings and affect the proper use of your equipment. On a compressor, inaccurate readings may lead to improper pressure switch adjustment, poor pneumatic tool performance or unreliable pressure control.

Installing a 16 bar Ø40 mm pressure gauge restores clear, reliable and accurate pressure monitoring.
