Holzprofi VSHP-DC30LC automatic and continuously variable trainer

The trainer allows regular advance of the wood, while providing maximum safety. It is equipped with 3 rubber rollers of Ø120x60mm or Ø120x25mm.

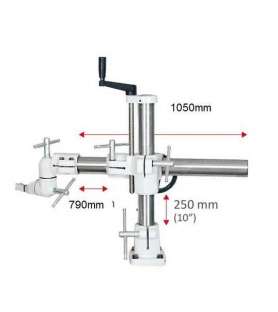

The drive speeds are infinitely adjustable forwards and backwards by frequency inverter. It is equipped with a horizontal arm extended to 1,050 mm allowing adaptation to all types of routers or combined. and a chain transmission feed mechanism.

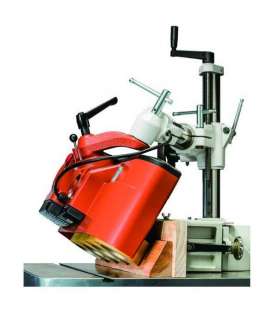

The trainer offers the possibility of working from 0 to 90° for the advance of the piece of wood on edge against the guide. The handwheel with endless screw allows you to adjust the horizontal and vertical positions of the Ø58 mm steel round rods.

The adjustment of the feed speed and the direction of travel is electronic. The oil used in the gearbox allows unlimited lubrication over time.

The high-strength cast iron elements, the large column and the ease of orientation complete the strengths of this trainer. Use on router, combination and sander.

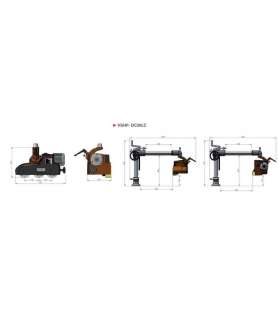

Technical characteristics of the Holzprofi VSHP-DC30LC trainer :

• Total height with handle mm: 745
• Total arm length mm: 1050
• Max height of the workpiece mm: 215
• Continuous speeds
• Speed range m/min: 2 to 22
• Dimensions of the driving rollers mm: ø 120 x 60
• Number of rollers: 3
• Motor (50 Hz) tri 400V
• Power 0.400 kW
• Arm stroke depth mm: 790 max
• Weight kg: 66

In which cases and why use a power feeder for a spindle moulder?

A spindle moulder power feeder, also known as a mechanical feeder for spindle moulders, is an essential device for improving safety, consistency and productivity during woodworking operations.

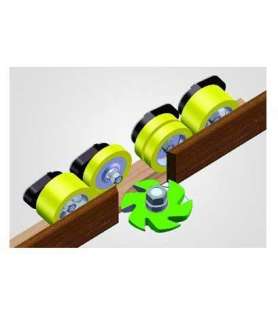

Installed above the spindle moulder, this unit automatically feeds wooden workpieces thanks to several motorized rollers that push the piece steadily against the cutting tool.

A spindle moulder power feeder consists of an electric motor connected to several feed rollers mounted on an articulated arm.

These rollers apply constant pressure to the wooden workpiece and move it forward automatically at a constant feed speed.

This system keeps the workpiece firmly pressed against the fence, ensuring a steady feed rate and preventing variations during machining.

The operator no longer needs to push the workpiece manually: the power feeder does the job. The rollers apply consistent pressure on the wood and automatically move it forward at a constant speed.

Consistent machining quality

Thanks to the constant feed speed, the workpiece is machined evenly and without jerks.

This makes it possible to achieve:

• a cleaner finish

• a perfectly consistent profile

• fewer machining defects

Increased productivity

A power feeder allows work to be performed faster and more comfortably.

It is particularly useful for series production, as it guarantees a constant feed rate for all workpieces. This improves production efficiency while reducing operator fatigue.

Better control of difficult workpieces

A power feeder is also very useful when working with long, narrow or difficult-to-hold pieces, as it keeps the workpiece firmly pressed against the fence and the spindle moulder table.
