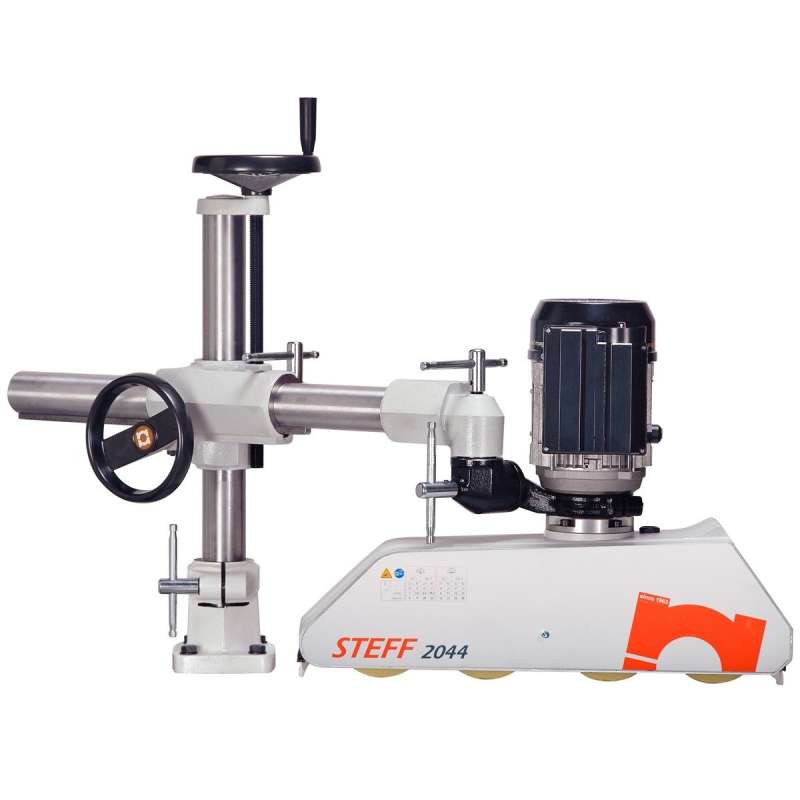

This power feeder for spindle moulder Maggi Steff 2044 is a quality machine made in Europe!

4-speed and 4-shingle professional range coach, powerful 750W motor, very strong 1050 mm stem.

Specifications of the power feeder Maggi Steff 2044:

• Number of pebbles: 4
• Pebble diameter: 120 mm
• Thickness of the rollers: 60 mm
• Deflection of the rollers: 20 mm
• Number of speeds: 4
• Coaching speeds: 4 - 8 - 11 - 22 m / min
• Engine: mono
• Engine power 230V: 0.37 / 0.51 KW - 1400/2800 rpm
• The size of the package: 670 x 570 x 330 mm
• Weight: 72 kg

Stem:

• Max Height: 540 mm
• Max width: 1050 mm
• Diameter of the columns: 58 mm
• Base: 4 fixing holes dia 13 mm, 2 holes spacing 108 mm + 2 holes 90 mm spacing

In which cases and why use a power feeder for a spindle moulder?

A spindle moulder power feeder, also known as a mechanical feeder for spindle moulders, is an essential device for improving safety, consistency and productivity during woodworking operations.

Installed above the spindle moulder, this unit automatically feeds wooden workpieces thanks to several motorized rollers that push the piece steadily against the cutting tool.

A spindle moulder power feeder consists of an electric motor connected to several feed rollers mounted on an articulated arm.

These rollers apply constant pressure to the wooden workpiece and move it forward automatically at a constant feed speed.

This system keeps the workpiece firmly pressed against the fence, ensuring a steady feed rate and preventing variations during machining.

The operator no longer needs to push the workpiece manually: the power feeder does the job. The rollers apply consistent pressure on the wood and automatically move it forward at a constant speed.

Consistent machining quality

Thanks to the constant feed speed, the workpiece is machined evenly and without jerks.

This makes it possible to achieve:

• a cleaner finish

• a perfectly consistent profile

• fewer machining defects

Increased productivity

A power feeder allows work to be performed faster and more comfortably.

It is particularly useful for series production, as it guarantees a constant feed rate for all workpieces. This improves production efficiency while reducing operator fatigue.

Better control of difficult workpieces

A power feeder is also very useful when working with long, narrow or difficult-to-hold pieces, as it keeps the workpiece firmly pressed against the fence and the spindle moulder table.
