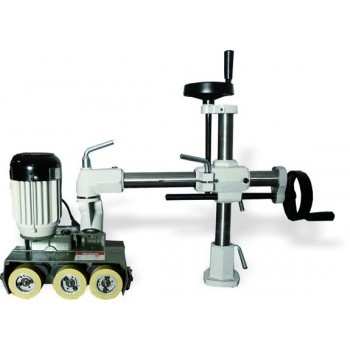

This power feeder for spindle moulder Holzprofi VSHP32 is designed for medium and large size machines.

The role of the power feeder is to advance the wood without the hands intervening. This brings a maximum of security, moreover its regularity in the advance of the wood makes it possible to obtain a finish of much better quality! (decrease of marks and chips). And finally, passing the small parts will not pose any problem!

Use: at the spindle moulder - circular saw - planer 2 possible positions:

• horizontal for wood laid flat on the table.
• vertical for wood laid on the edge.

Moreover, the irons or the strawberries will have a more regular wear and therefore need a less frequent sharpening.

Advantages of the power feeder Holzprofi VSHP32:

• 4 speed range.
• Training by 3 rollers.
• Walk forward, backward.
• Work horizontally and vertically.
• Designed for medium and large machines.

Specifications of power feeder Holzprofi VSHP32:

• Total height with handle mm: 590
• Width mm: 300
• Total length mm: 850
• Max height of the workpiece mm: 150
• 4 Speeds m / min: 5 / 6.5 / 8/11
• Dimensions of the driving rollers mm: ø 80 x 30
• Number of pebbles: 3
• Motor (50 Hz) mono 230V
• Power 1 / 4CV
• Arm stroke in depth mm: 450
• Movement of the rollers mm: 18
• Wheelbase wheelbase (center to center) 110-85
• Weight kg: 32
