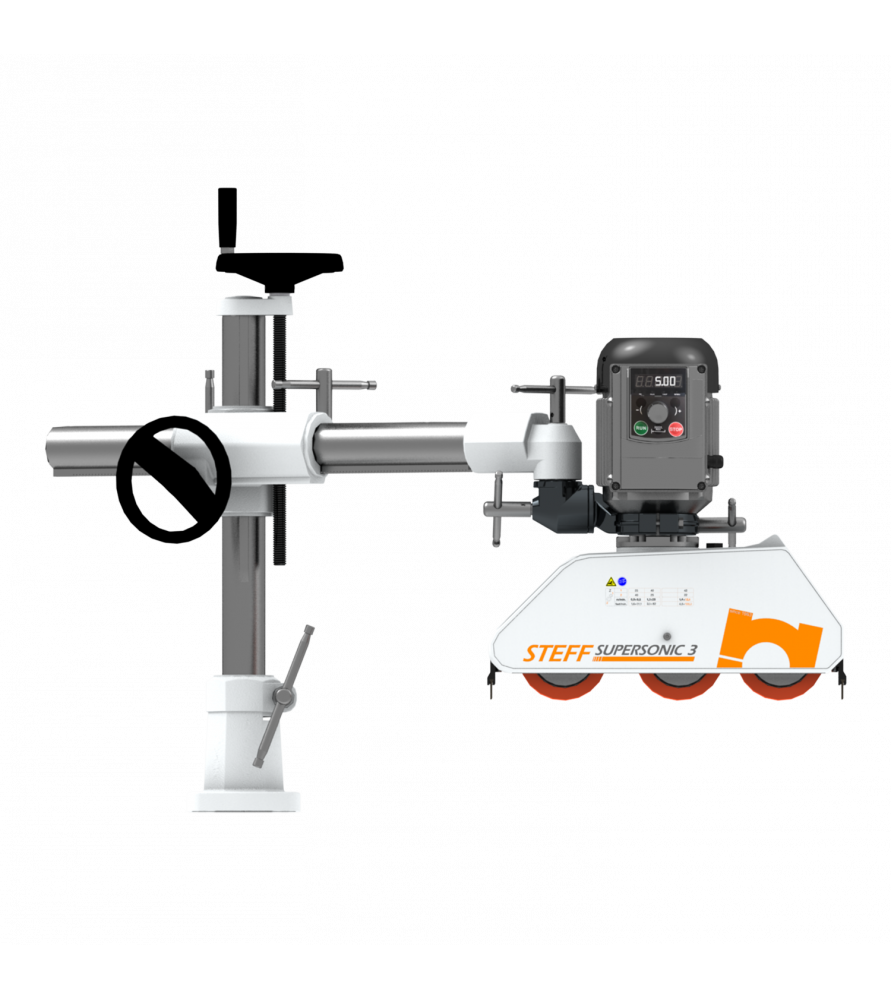

Automatic feeder Maggi STEFF SUPERSONIC3 Pro Range - 400V

Accident prevention device to power conventional machines correctly and safely.

- Work in complete safety: the operator does not bring his hands near the tool

- Superior quality machining thanks to the constant advancement of the part

- Optimal power supply thanks to speed adjustment

- Adaptability to all machining requirements

60 years of experience with a production of more than 400,000 machines: 100% Italian products. Very high levels of quality and reliability, thanks to the “Lean” Totyota System manufacturing method.

QUALITY MACHINING

Model with 3 rollers, ideal for driving slats, small parts and for medium-sized machining, thanks to the 2 rollers which perfectly hold the part at the entrance and the roller which holds it at the exit

ELECTRONICS, HIGH END

Wide range of variable speeds (from 0.5 to 33 m/min) with electronic selection and digital display. Ideal when you often have to change the type of machining. Quick reversal of direction of travel by pressing a button on the motor.

SUPERIOR GRIP

50 Shore rollers, patented Feeder Grip Technology for optimal grip on the panel and a long lifespan.

THE VALUE OF SAFETY

Using automatic feed protects the operator's hands from serious accidents. Its effectiveness depends on precise design and manufacturing criteria. MAGGI trainers are the only ones designed and manufactured in Italy. They comply with all CE safety regulations.

UNIVERSAL BRACKET

Structure for support and optimal positioning of the automatic feeder on the machine tool. Easy to orient, stable and robust; cast iron base, crosspiece, cap, pipe, junction and collar and two very thick ground steel columns. Adjustment keys and handwheels ensure rapid and precise positioning.

HIGH ADAPTABILITY

the well-calibrated spring suspension: 20 mm, allows parts with different thicknesses to be advanced without the need for additional adjustments.

PROTECTIVE BRUSHES

Against accidents, assembly on both sides of the coach.

STRONG AND RELIABLE SUPPORT

Equipped with an anti-stall mechanical safety device "SPS System" which prevents any accidental disconnection of the elements, in compliance with CE safety standards.

General description of the Automatic feeder Maggi STEFF SUPERSONIC3 Pro Range - 400V

• variable speeds (0.5-25 m/min and up to 33 m/min optional)
• n.4 pebbles (diam / thickness 120x60 mm)
• Motor power: 1 HP/ 0.75 kW, 1,400/ 2800 RPM
• Baty: (machine assembly): in cast aluminum, machined on high-precision work centers; painted in anti-corrosion and ecological powder because it is free of solvents.
• Steel chain cover
• Machine produced to CE standards

Delivery includes :

• Frame (machine assembly) in cast aluminum and steel chain cover
• Motor with 3mt cable
• 50 Shore Feeder Grip Pebbles
• Recyclable cardboard packaging

Technical characteristics of the Automatic feeder Maggi STEFF SUPERSONIC3 Pro Range - 400V :

• Number of forward and reverse speeds from 0.5 to 25 mt/min (up to 33 m/min accessory)
• Fixed speeds ----
• Number of rollers: 3
• Roller diameter and thickness: 120 x 60 mm
• Motor: 1 HP / 0.7 KW RPM 1400 /2800
• Pebble suspension: 20 mm

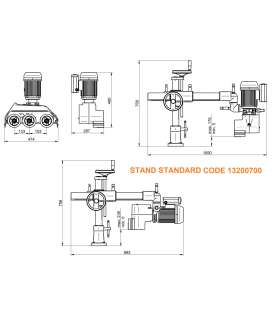

• Distance between the center of the different rollers: 133mm - 153 mm
• Distance between the center of the 1st and last roller: 286 mm
• Drive unit dimensions – net weight: 474 x 220 x 490 mm - 36 Kg
• Dimensions mounted universal support – net weight: 540 x 910 mm - 35 Kg
• Drive unit packaging dimensions – gross weight: 670 x 570 x 330 mm - 38 Kg
• Universal support packaging dimensions – gross weight: 800 x 330 x 330 mm - 37 Kg

In which cases and why use a power feeder for a spindle moulder?

A spindle moulder power feeder, also known as a mechanical feeder for spindle moulders, is an essential device for improving safety, consistency and productivity during woodworking operations.

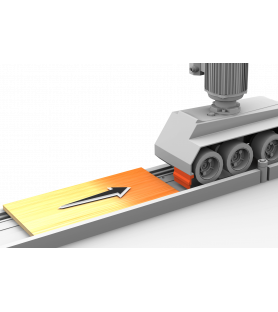

Installed above the spindle moulder, this unit automatically feeds wooden workpieces thanks to several motorized rollers that push the piece steadily against the cutting tool.

A spindle moulder power feeder consists of an electric motor connected to several feed rollers mounted on an articulated arm.

These rollers apply constant pressure to the wooden workpiece and move it forward automatically at a constant feed speed.

This system keeps the workpiece firmly pressed against the fence, ensuring a steady feed rate and preventing variations during machining.

The operator no longer needs to push the workpiece manually: the power feeder does the job. The rollers apply consistent pressure on the wood and automatically move it forward at a constant speed.

Consistent machining quality

Thanks to the constant feed speed, the workpiece is machined evenly and without jerks.

This makes it possible to achieve:

• a cleaner finish

• a perfectly consistent profile

• fewer machining defects

Increased productivity

A power feeder allows work to be performed faster and more comfortably.

It is particularly useful for series production, as it guarantees a constant feed rate for all workpieces. This improves production efficiency while reducing operator fatigue.

Better control of difficult workpieces

A power feeder is also very useful when working with long, narrow or difficult-to-hold pieces, as it keeps the workpiece firmly pressed against the fence and the spindle moulder table.
