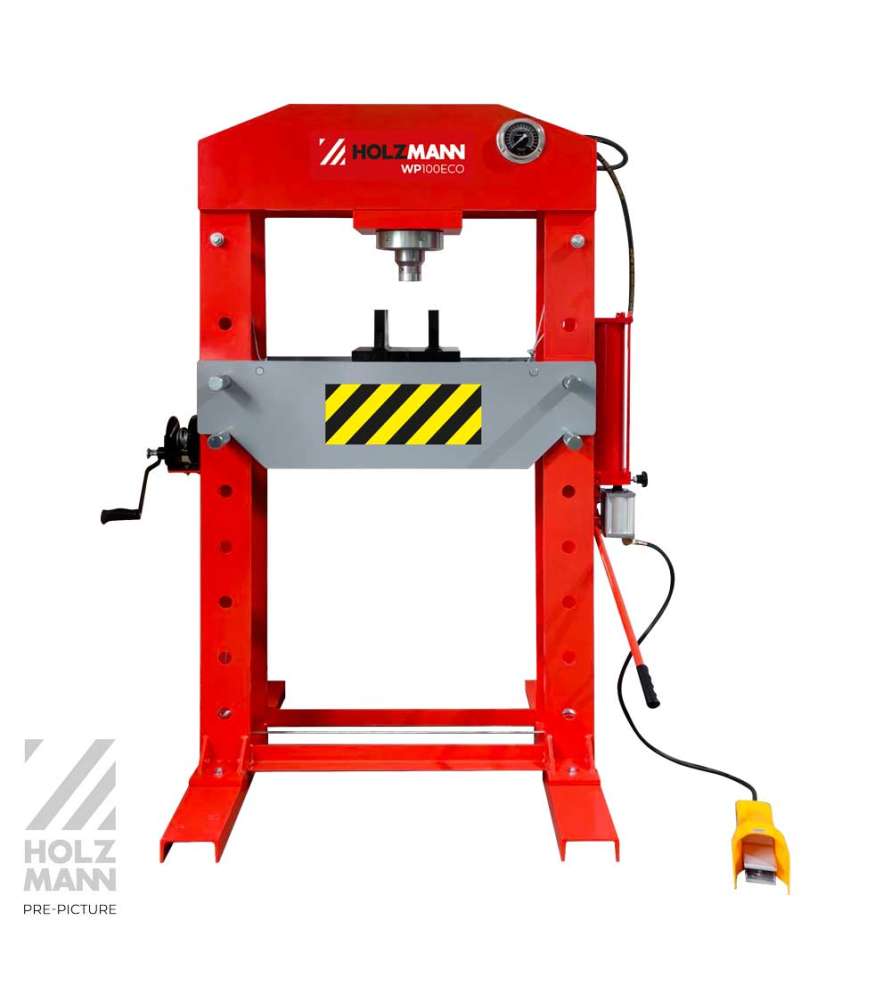

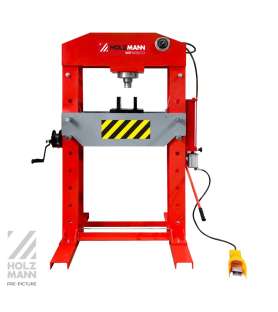

The Holzmann WP100ECO is a powerful hydraulic workshop press designed for pressing, straightening, bending and various repair and assembly tasks.

With a maximum pressing force of 100 tons, this heavy-duty shop press is suitable for professional workshops, garages, maintenance departments and mechanical repair applications.

Its robust construction and large working capacity make it particularly suitable for working with bearings, shafts, bushings, pins and other mechanical components requiring considerable pressing force.

Powerful 100 Ton Shop Press

The main feature of the Holzmann WP100ECO is its impressive 100 ton maximum pressing force.

This high capacity makes it suitable for demanding operations that cannot be carried out efficiently with smaller workshop presses.

The WP100ECO is therefore an excellent solution for workshops regularly working on large mechanical parts or components requiring significant force for installation, removal, straightening or assembly.

With a bed width of 820 mm and a working width from 78 to 1020 mm, the press can accommodate a wide variety of workpiece sizes.

Manual or Pneumatic Pressure Generation

The Holzmann WP100ECO offers manual or pneumatic pressure generation, providing flexibility according to the type of work being carried out.

The hydraulic system can be operated manually, allowing the press to be used without a compressed-air supply.

For pneumatic operation, the machine is equipped with a compressed-air unit with a 1/4" connection.

The required operating pressure is between 7.5 and 8.5 bar.

Pneumatic operation is particularly useful for repeated workshop operations and makes it easier to work while positioning components accurately.

Integrated Pressure Gauge

The WP100ECO features an integrated pressure gauge for indicating the pressing force during operation.

This allows the operator to monitor the force being applied to the workpiece and progressively adapt the pressure according to the task.

This is particularly useful when installing or removing mechanical components where excessive pressure could potentially damage the workpiece.

Pneumatically Assisted Hydraulic Cylinder

The Holzmann WP100ECO is equipped with a single-stage pneumatically assisted hydraulic cylinder.

The piston provides a generous stroke of 280 mm, allowing the press to accommodate a wide range of pressing operations.

After the pressing operation, the piston returns automatically, making repeated work more convenient and allowing the workpiece to be repositioned more easily.

Horizontally Adjustable Press Unit

Another major advantage of the Holzmann WP100ECO is its horizontally adjustable press unit.

The position of the press piston can therefore be adjusted according to the position of the workpiece.

This provides greater flexibility when working with large or irregularly shaped components and makes it possible to adapt the pressing point to the specific job.

The workpiece does not always need to be positioned directly beneath a fixed central pressing point.

Height-Adjustable Support Table

To accommodate different workpiece sizes and applications, the WP100ECO features a height-adjustable support table.

The table position can be adapted to the dimensions of the component being pressed, helping to optimise the available working space and reduce unnecessary piston travel.

This versatility is particularly useful in professional workshops where components of very different sizes may need to be handled with the same press.

Ideal for Heavy-Duty Mechanical Work

Thanks to its 100 ton pressing capacity, the Holzmann WP100ECO is suitable for numerous mechanical workshop applications, including:

• pressing and assembly operations;

• bearing installation and removal;

• fitting and removing bushings;

• working with shafts and pins;

• straightening metal components;

• bending operations;

• mechanical assembly work;

• machine maintenance and repair.

This versatility makes the WP100ECO suitable for professional mechanical workshops, garages, industrial maintenance departments and agricultural machinery repair workshops.

Robust Workpiece Support

The press is supplied with a workpiece support measuring 300 x 150 x 140 mm.

Its substantial dimensions provide a robust support for different pressing applications.

As with any high-capacity hydraulic press, the workpiece must always be positioned correctly and securely before pressure is applied.

Technical Specifications of the Holzmann WP100ECO

Heavy-Duty Hydraulic Press for Professional Workshops

With a net weight of 460 kg, the Holzmann WP100ECO is a substantial workshop press designed for demanding mechanical applications.

Its heavy construction is particularly suited to the high forces generated during pressing operations.

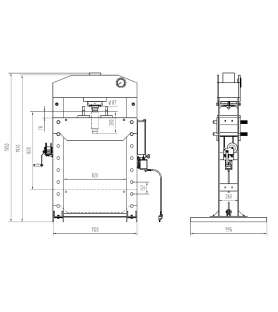

With overall dimensions of 1550 x 995 x 1950 mm, sufficient space should be provided around the machine to allow large workpieces to be positioned and handled correctly.

A Versatile Press for Assembly and Repair Work

A hydraulic shop press is an essential piece of equipment for many mechanical operations.

The Holzmann WP100ECO can be used when components need to be pressed together or separated, when bearings or bushings need to be installed or removed, or when metal parts require straightening or bending.

Its combination of high pressing force and adjustable working area allows the same machine to handle a wide variety of workshop tasks.

The horizontally movable press unit is particularly useful when the pressing point needs to be adapted to the workpiece rather than simply positioned in the centre of the press.

Why Choose the Holzmann WP100ECO Shop Press?

The Holzmann WP100ECO 100 ton hydraulic workshop press combines very high pressing capacity with practical adjustment features for professional workshop use.

Its 100 ton pressing force, manual or pneumatic pressure generation, integrated pressure gauge, 280 mm piston stroke, automatic piston return, horizontally adjustable press unit and height-adjustable support table provide the versatility required for demanding mechanical operations.

Whether used for pressing, straightening, bending, assembly or repair work, the Holzmann WP100ECO shop press provides a powerful solution for workshops requiring a high-capacity hydraulic press.
