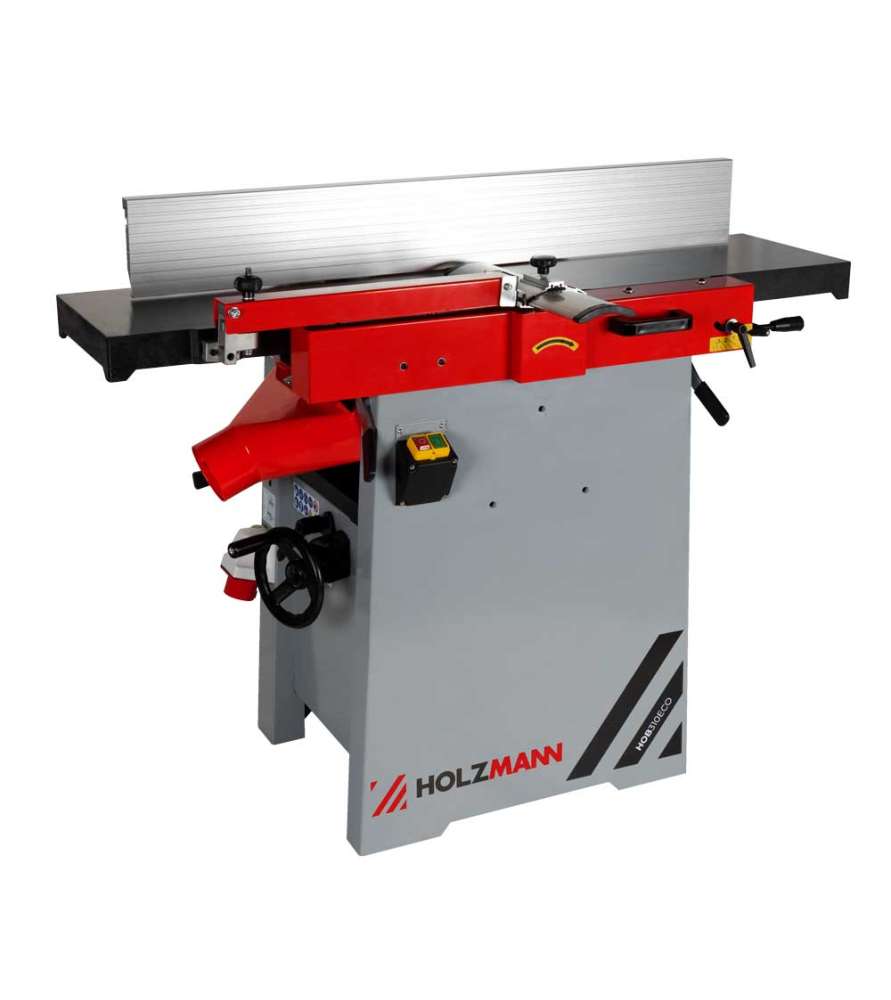

The Holzmann HOB310ECO is the economical model in the range of 310 mm wide planer-thicknessers.

With a working width of 310 mm and a system for opening the planing tables simultaneously which remain straight once raised, it makes it possible to reconcile significant capacity and space saving in the workshop!

Quicker to raise than a butterfly system, it is also more practical for those who need to plan and plan on the chain, switching quickly and easily from one function to another, with better output.

It is dedicated to do-it-yourselfers and amateurs who are looking for a machine of this width.

Important Probois recommendation for many woodworking machines:

• Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, grease the tables, etc... because the various transports cause vibrations.
• Always use a 2.5² wire size extension cord
• The extension cord must not exceed 10 meters and must not be rolled up
• The use of drums, triplets or multi-plugs is PROHIBITED
• Provide an electric meter with special machine start fuses of at least 16A
• Have a standard electricity meter with neutral and earth
• Always work with a chip extractor for your health and for the guarantee of the machine
• Always grease cast iron tables with wood glider
• Always work with guards in place
• Do not work with blunt or dull blades this can damage the mechanism, the feed of the planer, break the belt
• The machine does not start? Undoubtedly the shavings ejection casing is badly set up on the planer jointer side, it is a security!

General description of the Holzmann HOB310ECO planer jointer:

• Arbor with 3 blades, diameter 70 mm.
• Woodworking machine with centralized adjustment of the thicknessing table height by mechanical indicator.
• Planer tables raise together to switch to planing mode.
• Large width passage capacities: 310 mm in planing mode; 308 mm in planing mode.
• Large cast iron planing tables with a length of 1285mm, to allow you to pass wooden cleats easily.
• Massive and powerful machine of 180 Kg.
• Extra-long jointer fence runs nearly the full length of tables.

The Holzmann HOB310ECO planer jointer comes with:

• Perpendicular guide 1100 x 150 mm
• 3 x irons pre-mounted on the shaft

Technical characteristics of the planer jointer Holzmann HOB310ECO:

• Motor power S1: 2200 W
• Voltage: 400V
• Planer table size: 1285 mm x 310 mm
• Dimensions of the perpendicular guide: 1100 mm x 150 mm
• Inclination of the perpendicular guide: -45° to 90°
• Maximum planing thickness: 3 mm
• Height of the planing table: 852 mm
• Planer table size: 545mm x 308mm
• Planing depth: 4 mm
• Shaft diameter: 70mm
• Shaft speed: 5500 rpm
• Number of irons: 3
• Maximum planing height: 225 mm
• Minimum thickness of the part to pass: 6 mm
• Suction nozzle diameter: 100 mm
• Machine dimensions (L x W x H): 1285 x 750 x 1000 mm
• Speed of the wood feed rollers: 7 meters / minute
• Sound pressure level LpA: 89.5 dB(A)
• Sound power level LWA: 103 dB(A)
• Net / Gross Weight: 179.50 Kg / 206 Kg
• Packaging dimensions (L x W x H): 1320 x 565 x 960 mm
