Main function

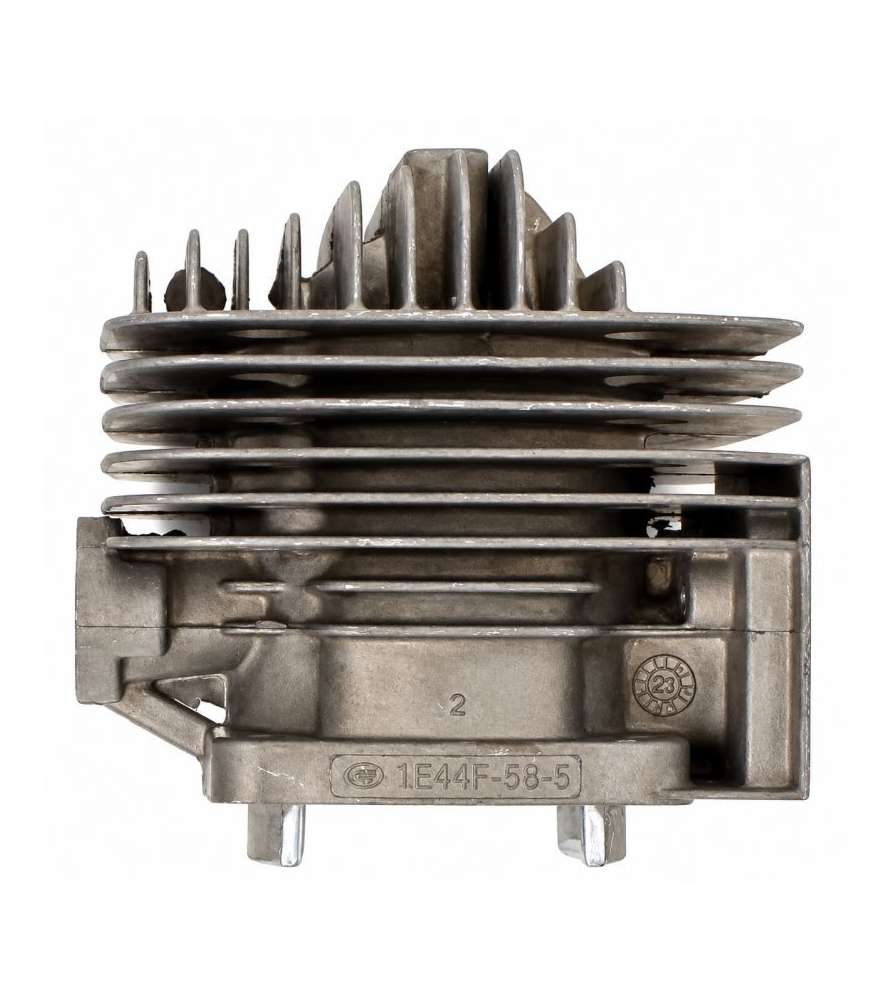

The cylinder for Scheppach earth augers and brush cutters – Ref. 5904704014 is an essential component of the petrol engine in which the piston moves.

Together with the piston and piston rings, it forms the chamber required for compression and combustion of the air-fuel mixture, thereby producing the energy needed to operate the engine.

The inner surface of the cylinder also guides the piston during its high-speed movement and helps maintain proper compression.

A cylinder in good condition is therefore essential to ensure reliable starting, good compression, optimum engine power and smooth operation of the machine.

When should the cylinder be replaced?

The cylinder for Scheppach earth augers and brush cutters – Ref. 5904704014 may need to be replaced in the following cases:

• Cylinder is scratched, scored or shows signs of seizure
• Inner surface is severely worn or damaged
• Significant loss of engine compression
• Excessive clearance between the piston and cylinder
• Very difficult starting despite correct ignition and carburetion
• Significant loss of power during operation
• Overheating or engine seizure has damaged the cylinder
• Damage found when removing the piston

When replacing the cylinder, it is recommended to also check the condition of the piston, piston rings, piston pin and connecting rod.

A deeply scored or deformed cylinder must be replaced, as the piston rings can no longer provide the sealing and compression required for proper engine operation.

This cylinder for Scheppach earth augers and brush cutters is suitable for the following models:

• Scheppach EB2000 — up to 6/2025
• Scheppach EB2000 — from 9/2025
• Scheppach EB2000 SE — up to 6/2025
• Scheppach EAT2000 — up to 6/2025
• Scheppach EAT2000 — from 9/2025
• Scheppach BAG2000-BE — up to 6/2025
• Scheppach PBC520
