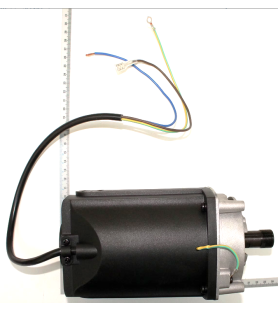

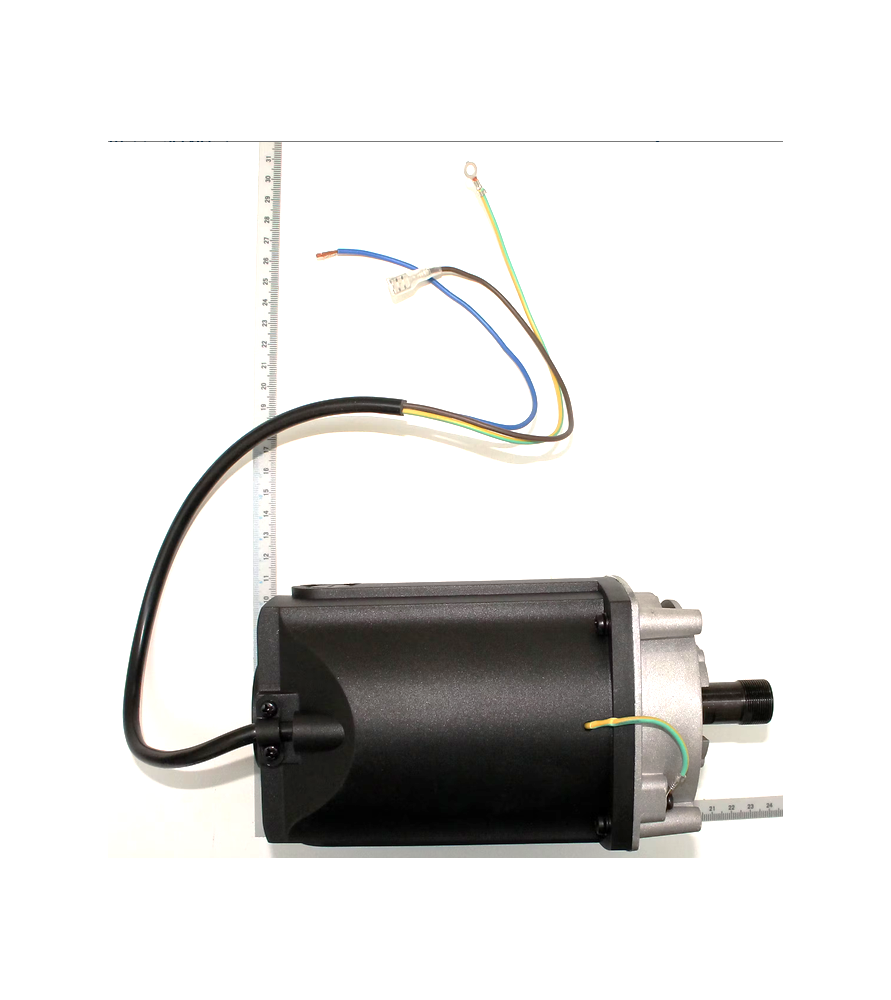

1500 W electric motor for Scheppach HF50, HF60 and Practixx PX-TFM40 router tables – Ref. 5902106001

This genuine Scheppach replacement electric motor, reference 5902106001, is designed for several Scheppach and Practixx router table models.

With a power input of 1500 W (P1) and a single-phase 230–240 V / 50 Hz power supply, it allows you to replace a faulty original motor and restore your machine to working condition.

This motor features an M20 x 1 threaded output shaft with SW 17/18 wrench flats.

Replacing a defective motor helps extend the service life of your router table without having to replace the entire machine, provided that the other components are in good condition.

Technical specifications of the Scheppach 5902106001 motor

Main function of the Scheppach 1500 W electric motor

The electric motor is the main drive component of the router table. It converts electrical energy into mechanical energy to drive the rotation of the router cutting tool.

It enables various woodworking operations, including grooving, profiling, rebating and edge machining, within the machine's operating capabilities.

A motor in good working condition helps ensure:

• Reliable router motor starting.
• Smooth and consistent rotation of the cutting tool.
• Proper transmission of mechanical power.
• Stable operation during machining.
• Consistent machine performance when the other components are in good condition.

When should you replace your Scheppach router motor?

The Scheppach 5902106001 electric motor may need replacing in the following situations:

• The motor no longer starts despite a correct electrical power supply.
• The machine experiences an unusual loss of power.
• The motor overheats excessively during operation.
• A burning smell occurs while the machine is running.
• The electrical motor windings are damaged.
• The motor produces unusual mechanical noises.
• The motor shaft shows significant mechanical damage.

These symptoms may also be caused by other components. Before ordering a replacement motor, we recommend checking the electrical power supply, switches, connections and other components that could be responsible for the malfunction.

List of machines compatible with the Scheppach 5902106001 motor

This replacement motor is designed for the following machines, according to the manufacturer's machine references:

• Scheppach HF60 – Ref. 5902106901
• Practixx PX-TFM40 – Ref. 3902106901
• Scheppach HF50 – Ref. 5902107901
• Scheppach HF60 – Ref. 5902106910

IMPORTANT: BEFORE PURCHASING

Always check that this spare part is compatible with your machine. The list of compatible machines may vary depending on the month and year of manufacture and the serial number.

The HF50 or HF60 model designation alone is not sufficient to guarantee compatibility. It is essential to check the exact reference shown on your machine's identification plate.

If you are unsure, please send us a photo of your machine's identification plate so that we can check compatibility before you place your order.

Important: Motor sold separately. Other router table components are not included. Replacement must be carried out with the machine disconnected from the power supply by a person with the necessary electrical and mechanical skills.
