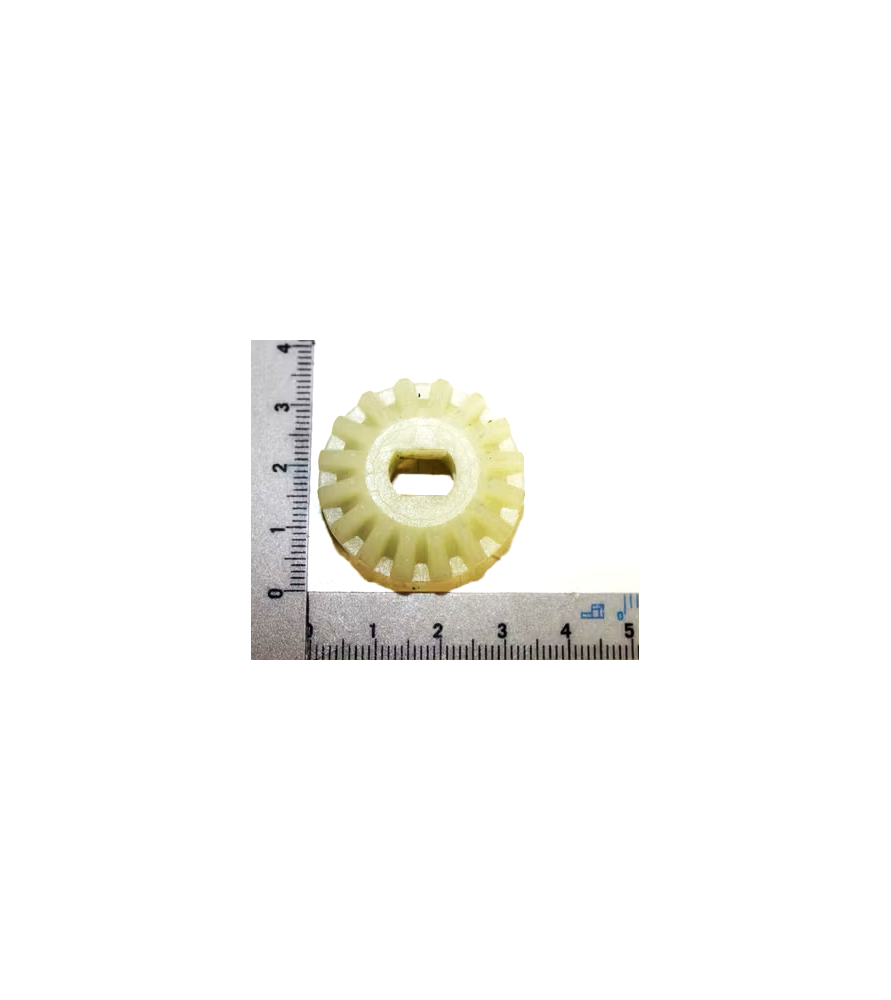

Bevel gear hub 10x7 from June 2020 for Scheppach PLM1800 planer – Part No. 5902208053

This bevel transmission gear is designed for the Scheppach PLM1800 planer.

This part corresponds to reference 114 from the manufacturer exploded diagram and is part of the machine height adjustment system.

Compatible version from June 2020

This version carries the manufacturer part number 5902208053 and is only compatible with machines manufactured from June 2020 onward.

Please note: this part differs from the version fitted on machines manufactured up to May 2020.

For older machines, the compatible part number is:

• 5902208054

It is therefore essential to check the manufacturing date of your machine before ordering.

Function of the gear

This bevel gear ensures mechanical motion transmission within the planer lifting and lowering system.

It allows:

• precise working height adjustment;
• motion transmission between shafts;
• proper operation of the height adjustment mechanism;
• and synchronization of the lifting system.

Compatible machine

• Scheppach PLM1800 – from June 2020 onward

Exploded diagram reference

• Reference 114
• Manufacturer part number: 5902208053

When should this part be replaced?

Replacement may be necessary in case of:

• worn gear teeth;
• excessive play in the mechanism;
• height adjustment blockage;
• broken teeth;
• or malfunction of the lifting/lowering system.

Replacement part for planer repair

This replacement part allows restoration of the height adjustment system of your Scheppach PLM1800 planer in order to recover precise, smooth and reliable operation.
