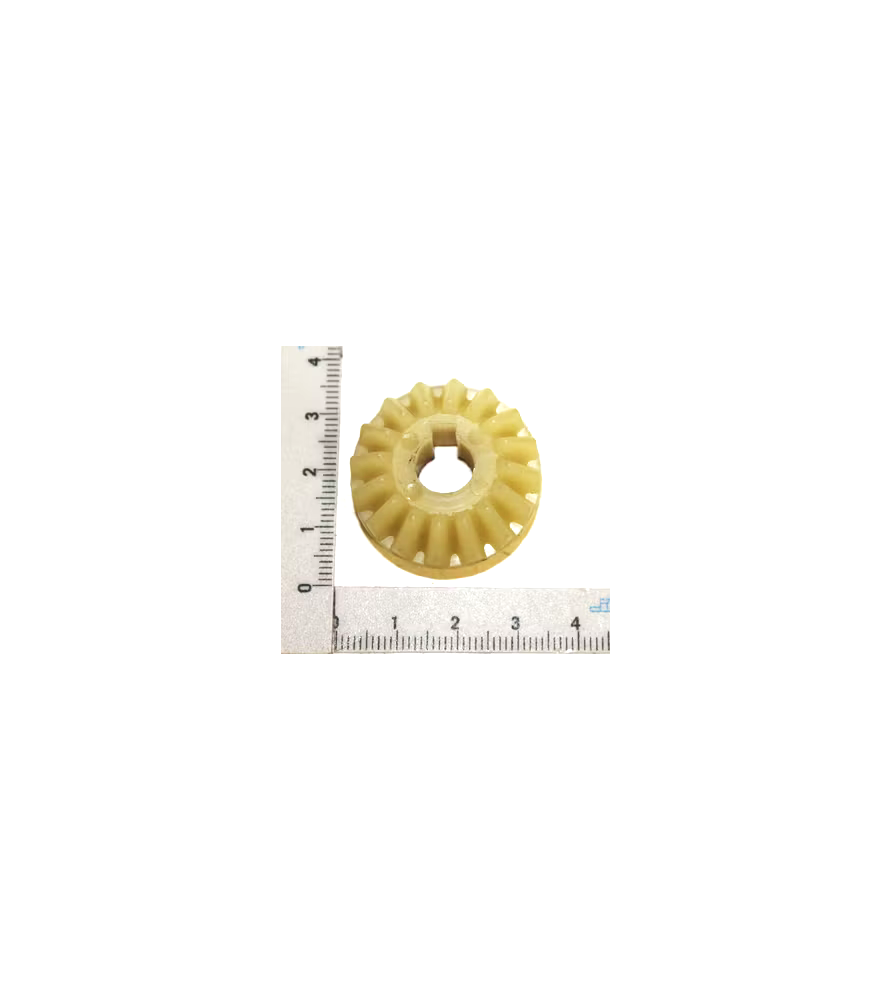

Bevel transmission gear for Scheppach PLM1800 planer up to May 2020 – Part No. 5902208054

This bevel transmission gear is designed for the Scheppach PLM1800 planer and is part of the machine height adjustment system.

This part corresponds to reference 114 from the manufacturer exploded diagram.

Compatible version up to May 2020

This version carries the manufacturer part number 5902208054 and is only compatible with machines manufactured up to and including May 2020.

Please note: this part differs from the version fitted on machines manufactured from June 2020 onward.

For newer machines, the compatible part number is:

• 5902208053

It is essential to check the manufacturing date of your machine before ordering in order to avoid compatibility issues.

Function of the bevel gear

This gear ensures mechanical motion transmission within the planer lifting and lowering mechanism.

It allows:

• precise working height adjustment;
• motion transmission between shafts;
• proper operation of the height adjustment system;
• and synchronization of the lifting mechanism.

Compatible machine

• Scheppach PLM1800 – up to May 2020

Exploded diagram reference

• Reference 114
• Manufacturer part number: 5902208054

When should this part be replaced?

Replacement may be necessary in case of:

• worn gear teeth;
• excessive play in the system;
• height adjustment blockage;
• broken teeth;
• or malfunction of the lifting/lowering mechanism.

Replacement part for planer repair

This replacement part allows restoration of the height adjustment system of your Scheppach PLM1800 planer in order to recover precise, smooth and reliable machine operation.
