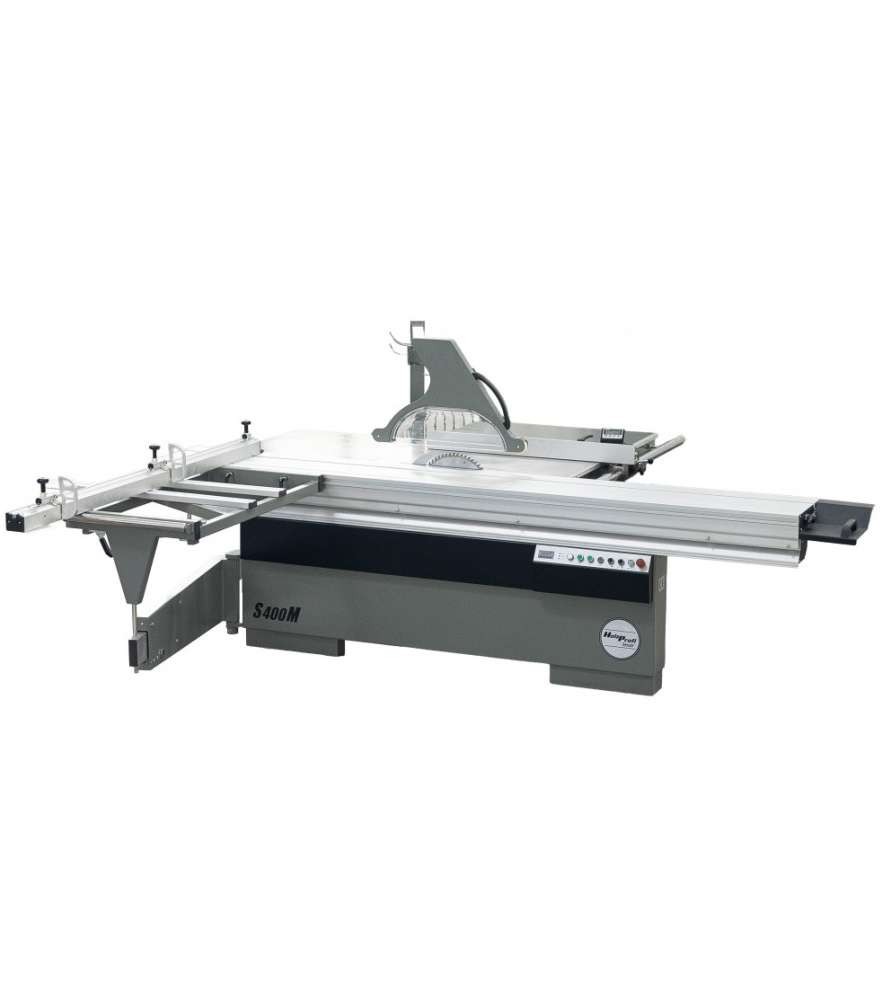

Holzprofi Master S400M Sliding Table Saw – 3200 mm Sliding Table, Ø400 mm Blade and Scoring Unit

The Holzprofi Master S400M sliding table saw is a premium professional machine designed for woodworking shops, cabinet makers and furniture manufacturers seeking maximum cutting capacity, outstanding accuracy and exceptional operating comfort. Equipped with a 3200 mm aluminium sliding table, a 400 mm saw blade and a motorized scoring unit, it meets the demands of professionals working with solid wood, melamine panels, laminates and veneered boards.

Exceptional Cutting Capacity for Large Panels

The S400M allows precise cutting of panels up to 3200 x 1250 mm. Its large 418 mm aluminium sliding table provides smooth and accurate movement, even when handling heavy or oversized panels. The sliding table frame includes a support roller to facilitate material handling while ensuring excellent stability throughout the cutting process.

Thanks to its Ø400 mm main saw blade, this machine delivers an impressive cutting height of 125 mm at 90° and 85 mm at 45°, making it ideal for processing thick solid timber as well as engineered wood products.

Motorized Scoring Unit for Perfect Finishes

The integrated motorized scoring blade effectively prevents chipping when cutting melamine-coated, laminated or veneered panels. This feature is essential for cabinet makers, kitchen manufacturers, interior fitters and furniture producers requiring flawless cutting quality directly from the machine.

Electric Adjustments for Maximum Comfort

The blade height adjustment, blade lowering and blade tilt functions are fully electric. This motorized system enables quick, precise and repeatable adjustments while significantly improving operator comfort. Height and angle settings can be adjusted effortlessly with excellent positioning accuracy.

The blade tilts up to 45°, allowing highly accurate bevel cuts for cabinetry, furniture manufacturing and traditional woodworking applications.

DADO Blade Compatible

The Holzprofi Master S400M is compatible with DADO blade sets, enabling the production of wide grooves, rebates and special machining operations directly on the saw. This feature, rarely available on many sliding table saws, significantly increases the machine’s versatility.

Professional Construction and Maximum Stability

The machine is built around a heavy-duty frame combined with a large cast iron table. Side and rear table extensions increase support surface area and provide excellent support for large panels. This robust construction minimizes vibration and contributes to outstanding cutting accuracy.

Comprehensive Standard Equipment

The S400M comes equipped with a overhead blade guard with dust extraction, eccentric hold-down clamps, an angle fence and a telescopic crosscut fence. It is therefore ready for demanding professional applications straight from installation.

Main Technical Specifications

• Aluminium sliding table: 3200 x 418 mm
• Maximum cutting capacity: 3200 x 1250 mm
• Main blade: Ø400 x 30 mm
• Maximum cutting height at 90°: 125 mm
• Maximum cutting height at 45°: 85 mm
• Blade tilt: 0° to 45°
• Blade speeds: 3000 / 4000 / 5000 rpm
• Electric blade height adjustment
• Electric blade lowering system
• Electric blade tilt adjustment
• Motorized scoring unit
• DADO blade compatible
• Cast iron table: 1020 x 690 mm
• Side extension table: 1020 x 680 mm
• Rear extension table: 750 x 680 mm
• Working height: 860 mm

Why Choose the Holzprofi Master S400M?

The Holzprofi Master S400M is designed for professional woodworkers, cabinet makers and furniture manufacturers requiring a true industrial-grade sliding table saw capable of intensive production while delivering exceptional cutting quality. Its Ø400 mm blade, motorized scoring unit, electric adjustments and DADO compatibility make it a high-performance, durable and versatile solution for demanding workshops.
