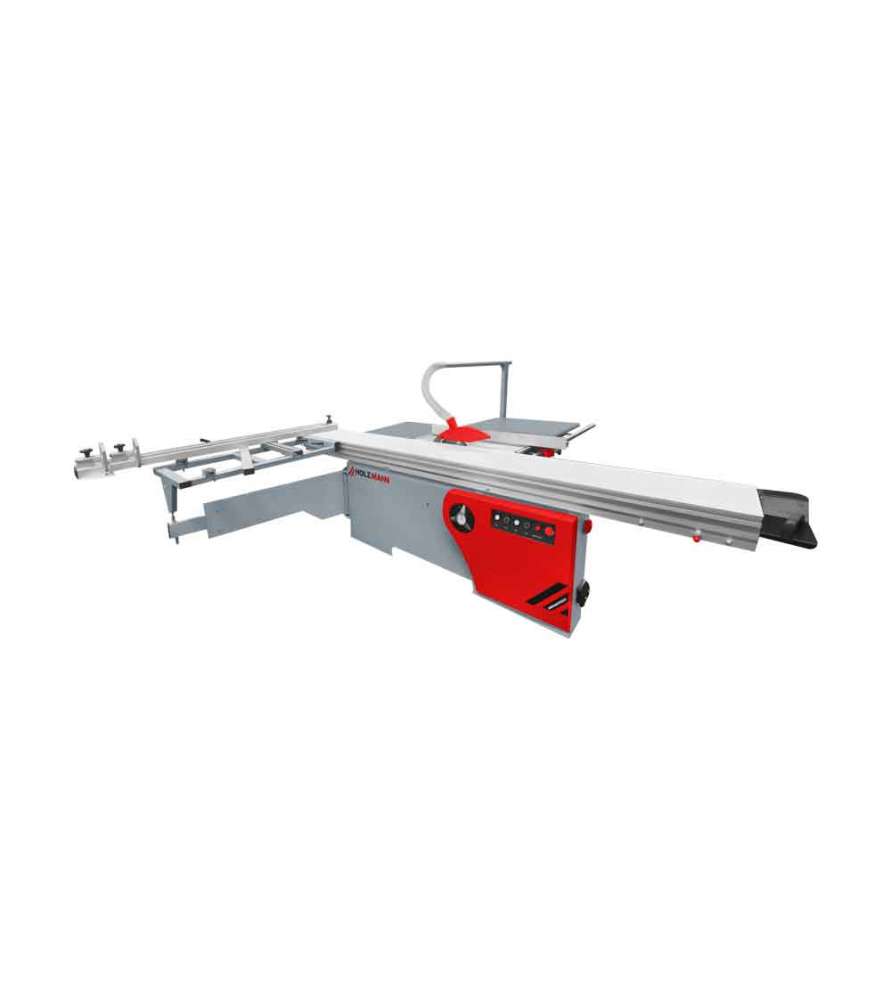

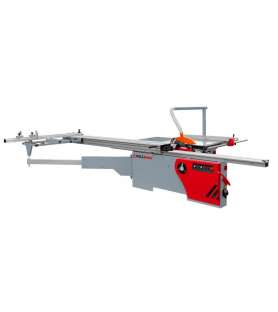

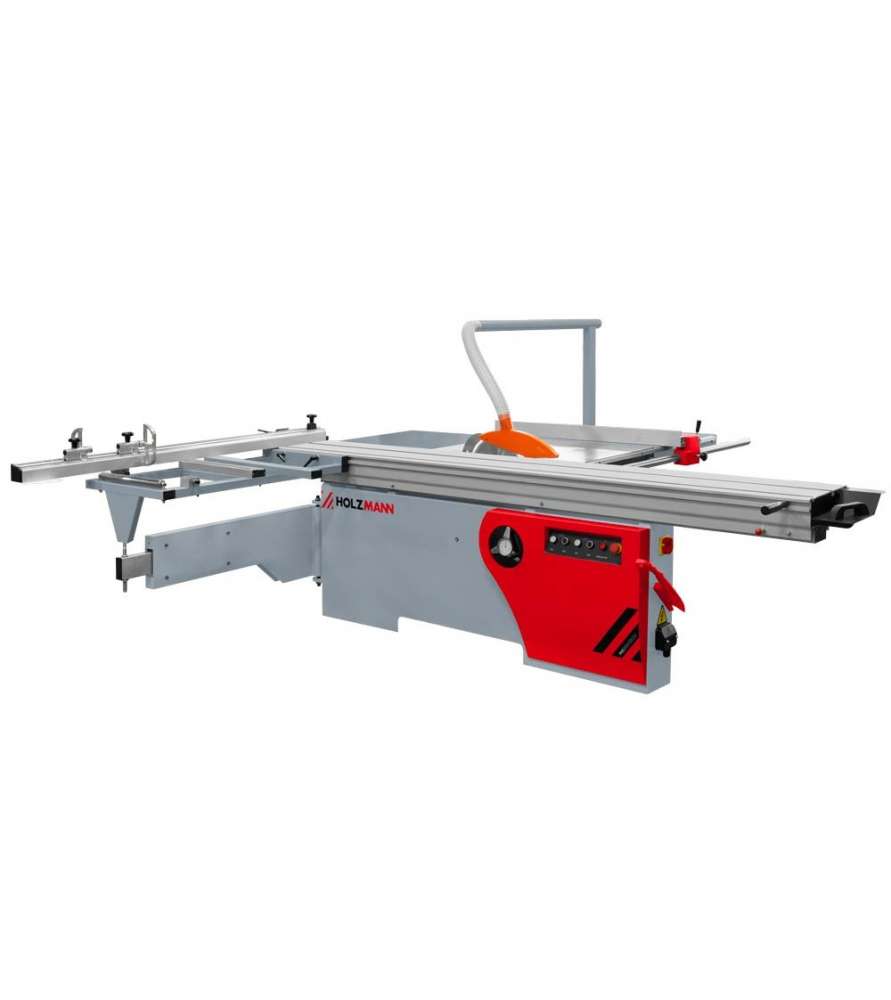

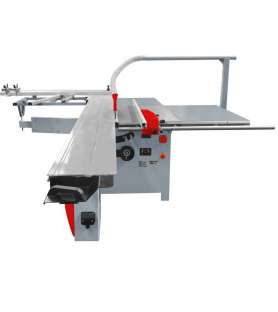

For panel cutting, the Holzmann FKS305V32ECO sliding table saw is equipped with a 3.2 m long aluminum carriage!

It also features a height- and tilt-adjustable scoring blade for clean, high-quality cuts. This saw offers all the essential features at an attractive price. A robust and reliable saw, without the frills. Quality at an affordable price with the HOLZMANN FKS305V32ECO_400V.

Advantages of the Holzmann FKS305V32ECO sliding table saw with 3200 mm carriage - 400V :

• with large aluminium sliding table and extension arm ideal for processing large workpieces and cutting large, heavy panels
• cast iron work table (910 x 650 mm) incl. table extension (900 x 650 mm). Table extension (900 x 690 mm) and table extension (630 x 690 mm) as steel construction

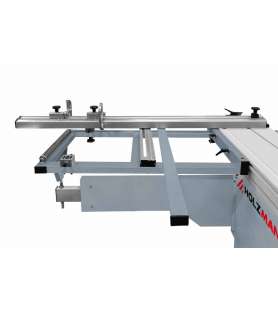

• outrigger table (1100 x 590 mm) and cross-cut fence (1700 - 3150 mm)
• including scoring unit with its own motor and manual height and side adjustment
• manually swivelling saw blade 0°-45° (via angle display)
• height adjustment of the main saw blade via handwheel

The Holzmann FKS305V32ECO sliding table saw with 3200 mm carriage - 400V comes with :

• HW main saw blade and scoring saw blade (Ø120 x 20 x 3.1/22)

Technical specifications of the Holzmann FKS305V32ECO sliding table saw with 3200 mm carriage - 400V :

• motor power s1 : 5500 (/750) W
• voltage : 400 V / 50 Hz
• table height : 870 mm
• sliding table : 3200 x 375 mm
• outrigger table : 1100 x 590 mm
• dust collector port : Ø95 / Ø 55 mm
• total dimensions : 4500 x 4540 x 1460 mm
• max. cutting width at parallel fence : 1250 mm
• sawblade : Ø 250-315 (30) mm
• sawblade speed : (I): 4000 (II): 6000 min-1
• scoring sawblade : Ø120 x 20 x 3,1/2,2 mm
• scoring unit motor power : 750 W
• scoring unit speed : 8000 min-1
• sawblade swivel : 0 - 45°
• sound power level : 90 dB(A)
• sound pressure level : 88,2 dB(A)
• gross weight : 690 kg
• net weight : 600 kg

Important recommendation from Probois for many woodworking machines:

Before starting up, always check the inside of your machine, check that the belts are correctly positioned, tighten the bolts, etc., as various transport operations cause vibrations.

Always use a 2.5² wire gauge extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of reels, triplet plugs, or power strips is PROHIBITED.

Have a compliant electrical meter with neutral and ground connections.

Always work with a chip vacuum cleaner for your health and to protect the machine's warranty.

Always work with protective equipment in place.

Do not work with dull or blunt tools; this can damage the internal mechanism.
