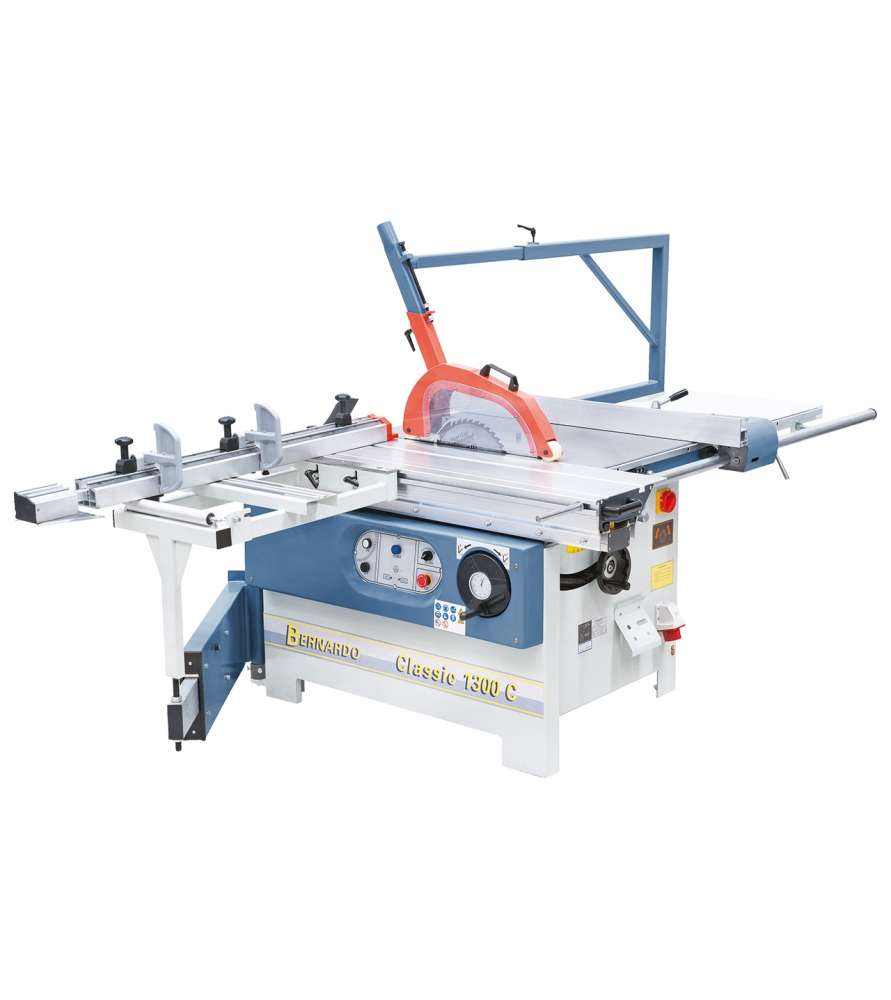

Advantages of the Bernardo Classic 1300 C sliding table saw with 1300 mm sliding table - 400V :

• Smoothly running, precise sliding table features hardened prism-shaped guide
• Square table with roll ensures user-friendly operation of large workpieces
• Powerful motor with high torque, designed for optimal cutting capacity

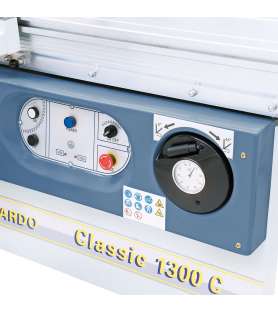

• Handwheel features scale for sawblade tilt up to 45º

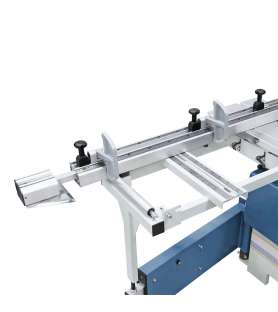

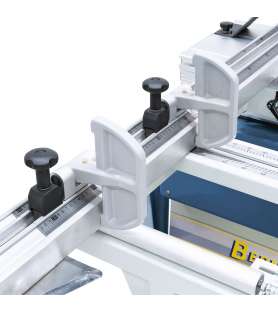

• Telescopic fence complete with 2 end stops
• Solid saw unit, featuring grey cast-iron tilting elements, supported on both sides

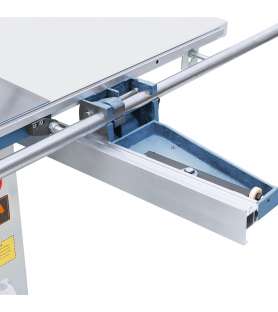

• Table extension for cutting width up to 1295 mm part of equipment
• Parallel fence can be folded down and includes micrometric fine adjustment (advantage for large panel)
• Large, grey cast-iron table, designed and polished with high accuracy
• Complete with independently driven scoring unit (0.75 kW motor)

The Bernardo Classic 1300 C sliding table saw with 1300 mm sliding table - 400V comes with :

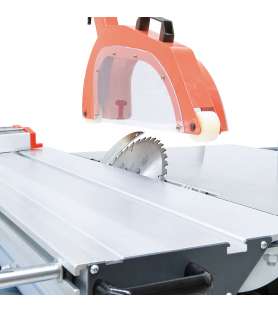

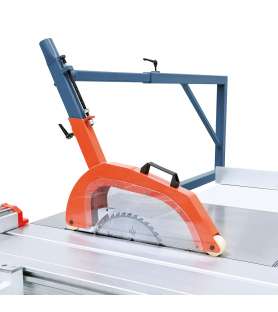

• Protective cover with infeed roller

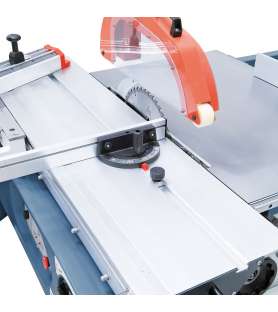

• Mitre fence
• End stop
• Table extension
• Extractable telescopic fence
• Longitudinal stop
• Square table with roll
• Push stick
• Scoring unit with independent motor
• Tools

Technical specifications of the Bernardo Classic 1300 C sliding table saw with 1300 mm sliding table - 400V :

• Table size : 935 x 620 mm
• Sliding table : 1300 x 360 mm
• Cutting length : 1300 mm
• Max. sawblade diameter : 315 x 30 mm
• Max. cutting height 90° / 45° : 90 / 60 mm
• Cutting width on rip fence : 1295 mm
• Table height : 850 mm
• Table extension : 750 x 600 mm
• Square table with roll : 725 x 550 mm
• Speed main sawblade : 4000 / 6000 rpm
• Speed scoring sawblade : 8000 rpm
• Scoring sawblade : 120 x 20 mm
• Dust extraction outlet : 100 mm
• Motor power output S1 100% : 4,0 kW (5,5 HP)
• Motor power input S6 40% : 5,5 kW (7,5 HP)
• Motor scoring unit : 0,75 kW
• Voltage : 400 V
• Machine dimension (W x D x H) : 1550 x 2920 x 1560 mm
• Weight approx. : 530 kg

IMPORTANT FOR DELIVERY AND START-UP OF XL MACHINES!

XL machines are shipped exclusively by 38-tonne truck. The delivery location must be suitable for this type of truck to easily approach and maneuver. If access is only possible by a 19-tonne truck (minimum), please inform us beforehand so we can find a solution. Any additional delivery charges must be paid before shipment. Start-up: Prices do not include assembly or electrical installation, which must be carried out by a professional to avoid any damage to the machine's motors and electrical circuits that would void the warranty.
