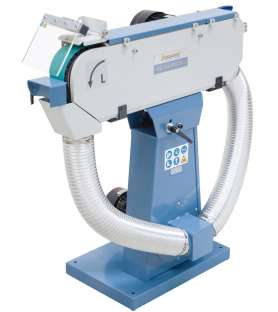

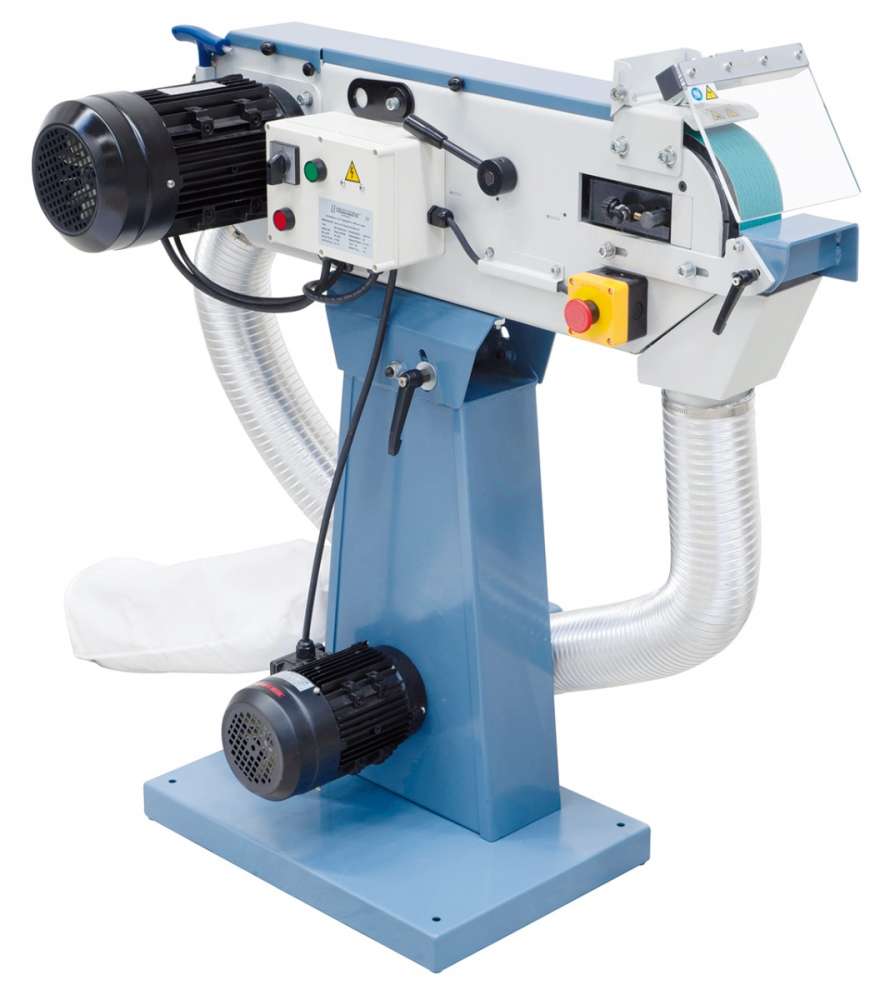

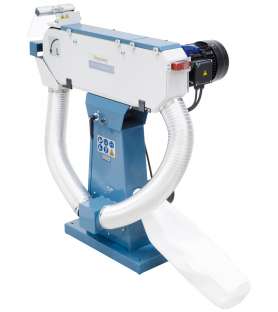

Belt sanding machine with aspiration Bernardo MS75x2000 DC-2 - 400V

1,785.00 € Tax included

Including €2.80 for ecotax

Reference: BMS75x2000DC2-400V

Quantity

Bernardo MS75x2000 DC-2 Product Properties

  • Serially with integrated extraction for optimal working conditions and clean air at work
  • Comes complete with 2 speed settings, optimal for grinding of stainless steel
  • Universal use for grinding of edges, surfaces and round grinding
  • Graphite coating on grinding surface increases sliding capacity of sanding belt

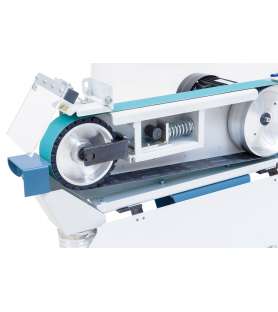

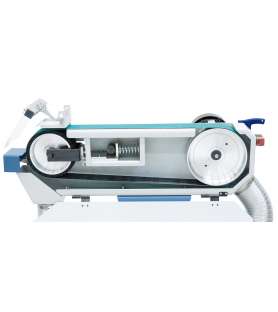

  • Spring loaded device ensures consistent belt tension
  • User-friendly belt change, fast and straightforward
  • High belt speed guarantees brilliant sanding performance
  • Universal use for trade and industry

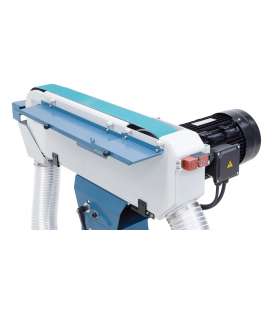

  • Large face grinding surface with protective cover

Bernardo MS75x2000 DC-2 - Delivery Contents

  • Sanding belt grit 80

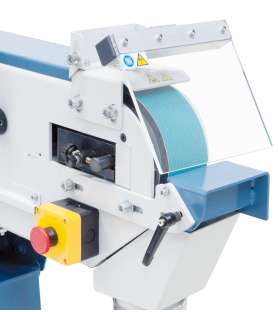

  • Folding protective glass

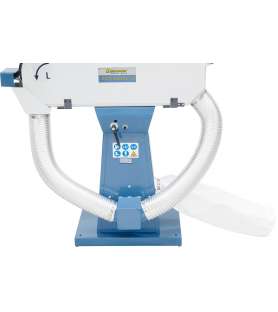

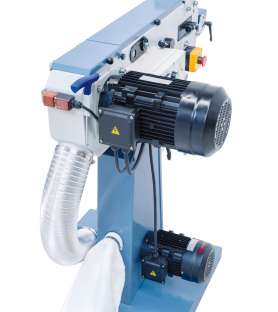

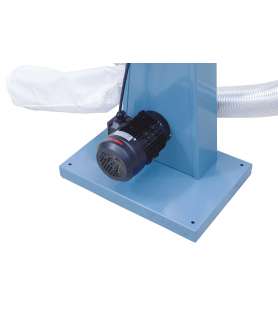

  • Integrated extraction

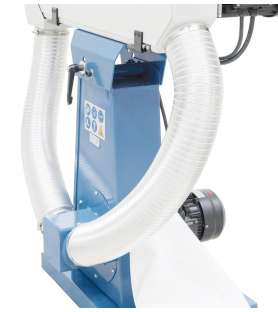

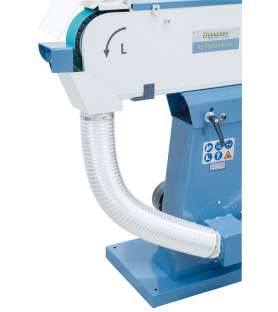

  • 2x Alu-tube diam. 100 mm
  • Filter bag

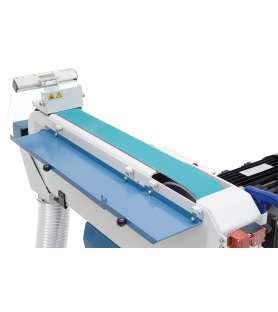

  • Sanding and supporting table

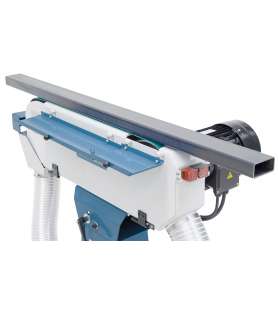

  • Workpiece fence

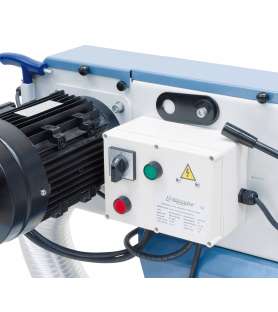

  • Motor protective switch
  • Rubber coated grinding roller
  • Graphite coating

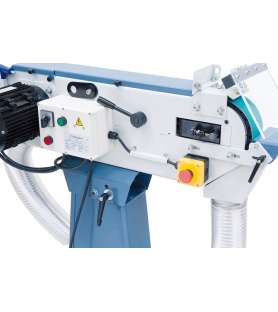

  • Separate emergency stop switch
  • Stand

Bernardo MS75x2000 DC-2 - Product Specifications :

Belt dimensions

75 x 2000 mm

Belt speed

18 / 36 m/sec.

Contact disc Ø x W

200 / 75 mm

Belt sanding table

500 x 75 mm

Dust extraction outlet

2x 100 mm

Suction power

520 m3/h

Speed suction

2780 rpm

Motor power suction

0,37 kW

Motor power output S1 100%

2,5 / 3,3 kW

Motor power input S6 40 %

3,3 / 4,3 kW

Voltage

400 V

Length

1130 mm

Width

520 mm

Height

1130 mm

Weight approx.

104 kg

BMS75x2000DC2-400V
