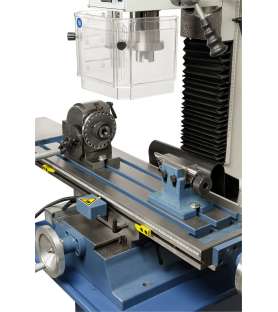

General description of the Bernardo BF30N Super metal milling machine with AL350D feed :

• Multiple possible uses: mortising, surfacing, boring, etc.
• Standard with digital speed and drilling depth indicator
• 2-stage gearbox for optimum torque transmission
• As standard with reversal of the direction of rotation, ideal for tapping
• DC motor for torque optimization at low speeds
• Dovetail guidance in x, y and z, adjustable by adjusting wedge
• Milling head can be swiveled on both sides for angle drilling, chamfer milling, etc.
• High concentricity (≤0.015 mm) of the spindle by precision bearings
• Generously dimensioned cross table with precision surface and T-slots
• Spindle lowering and raising by lever, precision adjustment by crank

The Bernardo BF30N Super metal milling machine with AL350D feed comes with :

• Feed on axis x AL 350 D
• Keyless chuck 1 - 16 mm / B 16
• CM 3 / B 16 chuck mounting shaft
• Tie rod M 12
• Digital speed indicator
• Digital depth indicator
• CE standard EMC filter
• Height adjustable protector
• Service tools

Technical characteristics of the Bernardo BF30N Super metal milling machine with AL350D feed :

• Steel drilling capacity: 30 mm
• Maximum surfacing capacity: 75 mm
• Maximum milling capacity: 25 mm
• Gooseneck: 180 mm
• Spindle / table distance: 115 - 465 mm
• Spindle stroke: 70 mm
• Spindle speed, variable: 50 - 1100 / 150 - 3000 rpm
• Spindle taper: CM 3
• Table dimensions: 840 x 210 mm
• Stroke (x/y): 455 / 195 mm
• Swivel milling head: -90° to +90°
• Milling head height adjustment: 350 mm
• Dimensions T-slots: 14 mm
• Continuous power S1 100%: 1.1 kW / 230 V
• Power S6 40%: 1.6 kW / 230 V
• Machine dimensions (W x D x H)*: 1350 x 710 x 1200 mm
• Weight (approx.): 222 kg
• * without base
