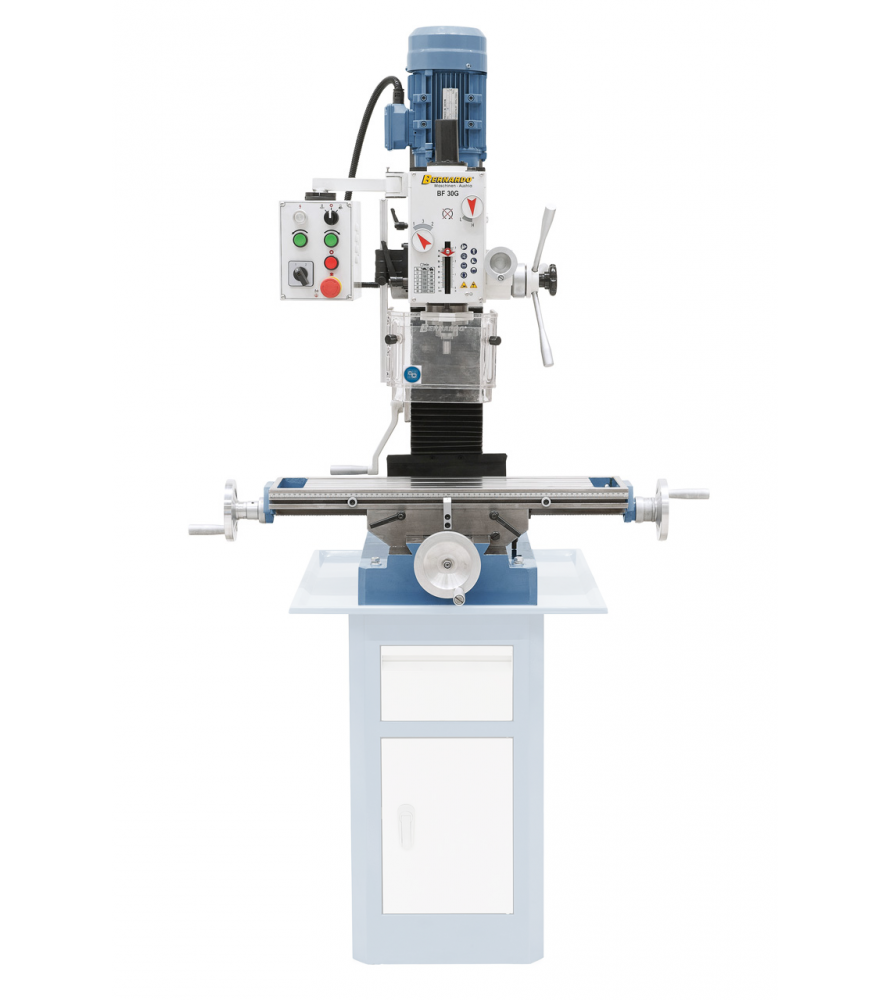

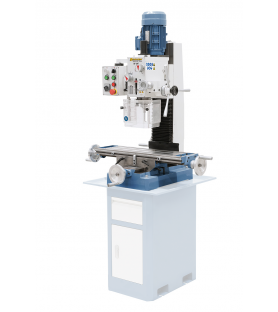

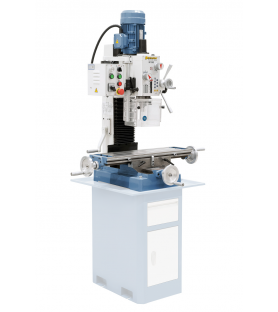

Advantages of the Drilling and milling machine Bernardo BF30G :

• Powerful 2-step drive motor allows for 12 different speed setting
• High-quality ball bearings allow for high concentricity
• Wide range of applications, such as drilling, milling, thread cutting etc.
• Polished gear wheels, in oil bath, ensure smooth running
• Right and left turning device for tapping
• Dovetail guiding in x-, y- and z-axis, adjustable by gibs
• Milling head tilts to both sides to allow angular boring, milling of bevels etc.
• Attractive price-to-performance ratio for price conscious users
• High-quality aluminium motor, designed for longer use

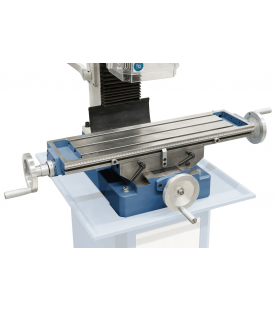

• Grey, cast iron table features T-slots and coolant groove

The drilling and milling machine Bernardo BF30G comes with :

• Drill chuck arbor MT 3 / B 16
• Drill chuck 3 - 16 mm / B 16
• Drawbar M 12
• Thread cutting device

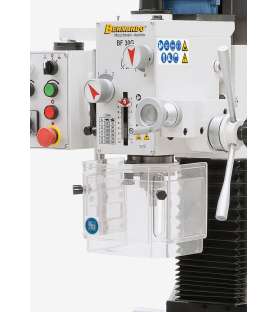

• Height adjustable protective cover
• Longitudinal scale
• Tools

Technical specifications of the drilling and milling machine Bernardo BF30G :

• Drilling capacity in steel : 30 mm
• Face mill capacity max. : 63 mm
• End mill capacity max. : 25 mm
• Distance spindle to column : 170 mm
• Distance spindle to table : 105 - 465 mm
• Spindle stroke : 70 mm
• Spindle speed : (12) 95 - 2840 rpm
• Spindle taper : MT 3
• Table size : 700 x 190 mm
• Travel (x / y) : 375 / 230 mm
• Mill head tiltable : -45° to +45°
• Height adjustment of mill head : 360 mm
• T-slot size : 12 mm
• Motor power output S1 100% : 0,75 / 1,1 kW (400 V)
• Motor power input S6 40% : 1,1 / 1,6 kW (400 V)
• Machine dimension (W x D x H)* : 1000 x 720 x 1300 mm
• Weight approx. : 190 kg
• * without stand
