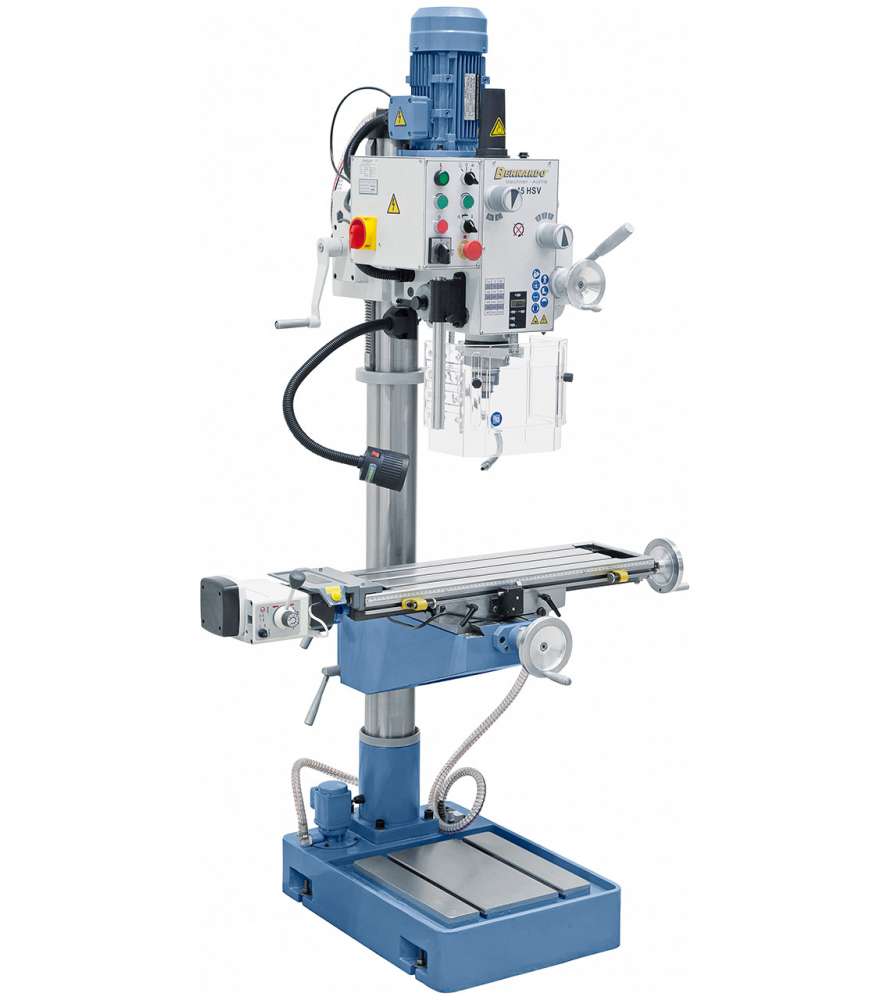

General description of the Bernardo BF45HSV metal drilling and milling machine with digital display:

• Powerful 2-step motor, speed range 75 - 3200 rpm
• Solid, polished steel column suitable for heavy workload
• Digital display for spindle stroke and LED-lamp comes standard
• Serially equipped with automatic spindle feed and thread cutting device
• Lever allows quick and easy speed change
• Gear head is height adjustable, tilts 180˚ and rotates 360˚
• Polished gear wheels, in oil bath, guarantees smooth running
• Clutch allows change from manual to fine feed
• High-quality ball bearings allow for high concentricity
• Height adjustable protective cover with micro switch for increased safety

The Bernardo BF45HSV metal drilling and milling machine with digital display is supplied with:

• Keyless drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4 / 3
• Taper shell end mill holder MT 4 / 27 mm
• Automatic spindle feed
• Height adjustable protective cover
• Digital spindle stroke indication
• Thread cutting device
• Coolant device
• LED machine light
• Longitudinal scale
• Tools

Technical specifications of the Bernardo BF45HSV metal drilling and milling machine with digital display:

• Drilling capacity steel: 32 mm
• Drilling capacity cast iron: 40 mm
• Max. surface milling cutter : 80 mm
• Crow's neck: 280 mm
• Spindle speed: (12) 75 – 3200 rpm
• Spindle taper: MT 4
• Spindle stroke: 120 mm
• Spindle descent: (3) 0.10 / 0.18 / 0.26 mm/rev
• Table dimensions: 730 x 210 mm
• T-slots: 14 mm
• Max. spindle/table distance : 640 mm
• Max. distance spindle / base: 1190 mm
• Stroke (x/y): 495 / 200 mm
• Milling head swivel: -90° to +90°
• Milling head height adjustment: 260 mm
• Column diameter: 115 mm
• Base: 365 x 375 mm
• Continuous power S1 100%: 1.1 / 1.5 kW (400 V)
• Power S6 40%: 1.5 / 2.2 kW (400 V)
• Machine dimensions (W x D x H): 1070 x 800 x 2060 mm
• Weight (approx.): 362 kg
