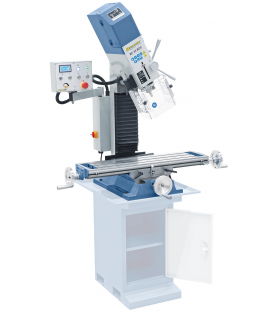

General description of the Bernardo BF35BDC drilling and milling machine:

• Milling head swivels on both sides for corner drilling, chamfer milling, etc.
• Largely dimensioned cross table with precision surface and T-slots
• Available with automatic feed and 3-axis digital display (Ref. 02-1117)
• Rotation speed variator to adapt to the room
• Multiple possible uses: mortising, surfacing, reaming, etc.
• Standard with digital indicator of drilling speed and depth
• Standard with reversal of direction of rotation, optimal for tapping
• DC motor for torque optimization at low speeds
• Dovetail guidance in x, y and z, adjustable by adjusting wedge
• High concentricity (≤0.015 mm) of the spindle by precision bearings

The Bernardo BF35BDC drilling and milling machine is delivered with:

• Keyed chuck 3 - 16 mm / B 16
• Chuck mounting shaft CM 3 / B 16
• Tie rod M 12
• Digital speed indicator
• Digital depth indicator
• CE standard EMC filter
• Height adjustable protector
• Tapping device
• Service tools

Technical characteristics of the Bernardo BF35BDC drilling and milling machine:

• Steel drilling capacity: 35 mm
• Maximum surfacing capacity: 75 mm
• Maximum milling capacity: 25 mm
• Maximum tapping: M 20
• Swan neck: 190 mm
• Mini/max spindle/table distance: 90 – 440 mm
• Spindle travel: 90 mm
• Spindle speed, variable: 100 – 1500 / 200 – 3000 rpm
• Spindle taper: CM 3
• Table dimensions: 840 x 210 mm
• Stroke (x/y): 535 / 225 mm
• Adjustable milling head: -90° to +90°
• Milling head height adjustment: 350 mm
• T-slot dimensions: 14 mm
• Continuous power S1 100%: 1.5 kW / 230 V
• S6 power 40%: 2.2 kW / 230 V
• Machine dimensions (L x D x H)*: 1180 x 710 x 1220 mm
• Weight (approx.): 210 kg
• * without base
