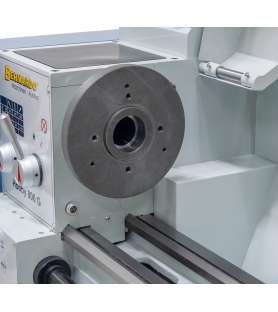

General description of the Bernardo Hobby 800 G - 230V metal lathe:

• Quick and easy shifting with the manual transmission
• High spindle nose concentricity (≤ 0.009 mm) thanks to precision tapered roller bearings
• Powerful drive motor for high torque, speed range from 70 to 1800 rpm
• Versatile applications: precision mechanics, training and learning workshops, ...
• Power adjustment is simple, smooth and switchable with precision
• Solid machine bed with induction hardened and ground bed guide
• Ideal for processing steel, non-ferrous materials and plastics
• With feed spindle for automatic longitudinal and transverse feed as standard
• Carriage with fine scale handwheels

The Bernardo Hobby 800 G - 230V metal lathe comes with:

• 3-jaw chuck 160 mm
• Cross slide with top support
• Solid center point
• Gear switch
• Quadruple steel support
• LED machine lamp
• Liner protection
• Chip rear wall
• lead screw cover
• Chip tray
• Base
• operating tool

Technical characteristics of the Bernardo Hobby 800 G - 230V metal lathe:

• Between centers: 750 mm
• Maximum height: 165mm
• Swing over the bed: 330 mm
• Bed width: 160 mm
• Spindle bore: 38 mm
• Mounted in spindle bore: MK 5
• Speed Range: (12) 70 - 1800 rpm
• Longitudinal feed range: (45) 0.0087 - 1.395 mm/rev
• Cross feed range: (48) 0.018 - 0.296 mm/rev
• Metric Threads: (17) 0.5 - 4mm
• Inch thread: (26) 8 - 40 Gg/1"
• Barrel stroke: 75 mm
• Penholder: MK 3
• Motor output power S1 100%: 1.1kW / 230V
• Motor input power S6 40%: 1.5kW / 230V
• Dimensions of the machine (W x D x H)*: 1370x680x1320 mm
• Weight approx. : 268kg

* without base
