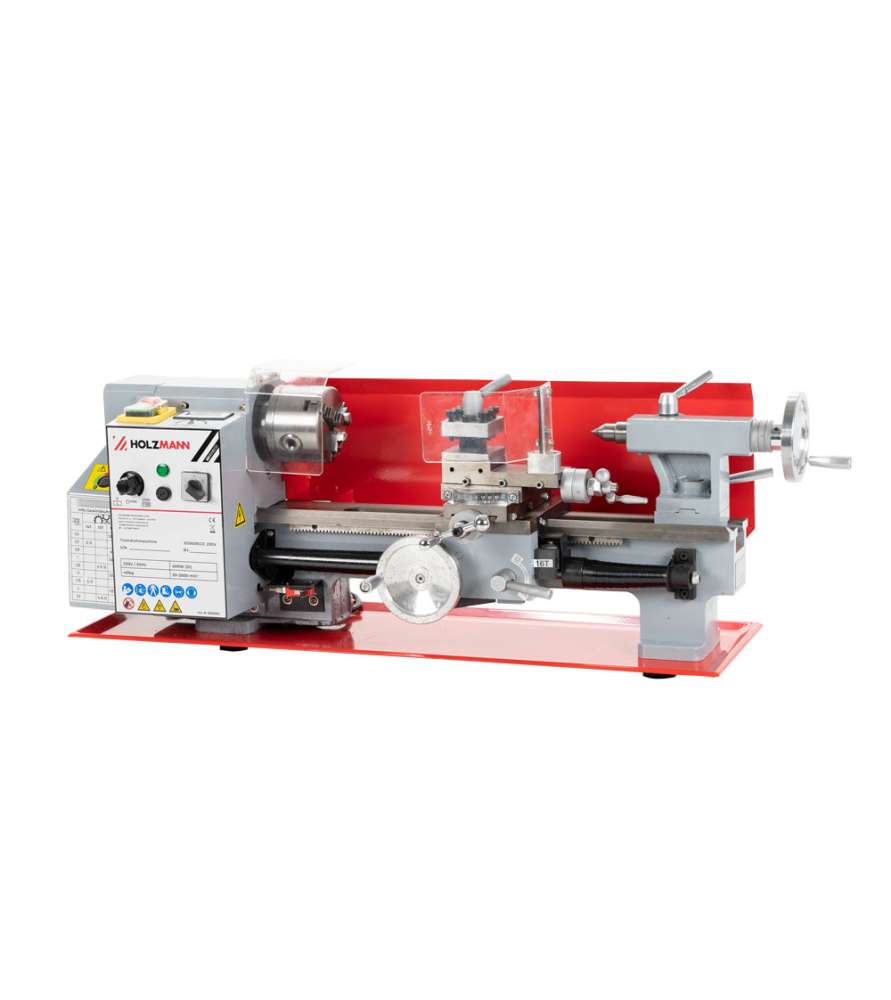

Metal lathe Holzmann ED300ECO

662.50 € Tax included

Including €2.50 for ecotax

Reference: HED300ECO

Holzmann ED300FD metal lathe ideal for small workshops, equipped with a gray iron prismatic bench and a powerful motor!

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Holzmann ED300ECO metal lathe is a machine equipped with a gray cast iron prismatic bench!

This bench is induction hardened and precision ground!

Advantages of the Holzmann ED300ECO metal lathe:

  • Prismatic bench in gray cast iron, inductively hardened and precision ground
  • Heat treatment of the shaft with adjustable conical bearings
  • Conveniently adjustable guides thus ensuring accuracy for many years
  • Powerful motor without maintenance
  • Longitudinal automatic feed
  • Adjustable top trolley for conical turning

This lathe comes with: Ø80 mm 3-jaw chuck, 4-position turret, CM3 spindle taper, CM2 mobile headstock, chuck guard, chip tray, speed variator and service keys

Technical specifications Holzmann ED300ECO metal lathe:

  • Power S1 / S6: 400w - 560w
  • Voltage: 230 V - 50 Hz
  • Speeds: 50 - 2500 rpm
  • Between points: 300 mm
  • Ø max. above the carriage: 105 mm
  • Ø max. under the broken bench: 180 mm
  • Bench width: 100 mm
  • Bore of the spindle: 20 mm
  • Spindle cone: MK3 / MT3
  • Morse taper of mobile doll: MK2 / MT2
  • Threads metric pitch: 0.5 - 2.5 mm
  • Nets per inch: 12 - 52 TPI
  • Turret stroke: 50 mm
  • Z-axis travel: 275 mm
  • X-axis stroke: 70 mm
  • Y-axis stroke: 70 mm
  • Net weight / gross: 38/45 kg
  • Machine dimensions: 760 x 230 x 254 mm
  • Package dimensions: 780 x 480 x 420 mm
