General description:

• Equipped as standard with automatic longitudinal feed
• Indication of the DRO speed
• Variable speed
• Prismatic gray cast iron bench, induction hardened and rectified with precision
• Axis hardened with adjustable tapered bearings
• Nose pin with accuracy less than 0.009 mm, ensures maximum accuracy of shooting
• Continuously adjustable rotation speed, the speed can be easily read on digital screen

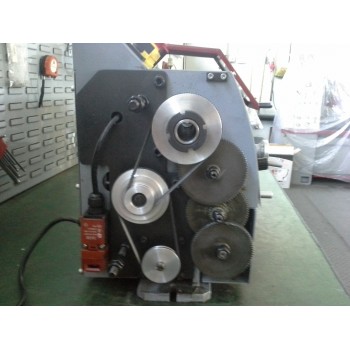

• Comes with the change of speed that allows a wide range of work
• The guides are adjustable for the convenience of "V" block, ensuring accuracy for many years
• Powerful engine maintenance free with trigger
• Continuous power transmission
• The tailstock can be adjusted for conical turning
• Shooting a left / right (CW / CCW)

Technical characteristics:

• Power: 600 W - 230 V
• Speed: 50 - 2500 RPM
• Between tips: 400 mm
• Maximum diameter over the trolley: 210 mm
• Broken bench maximum diameter: 110 mm
• Bench width: 100 mm
• Spindle boron: 21 mm
• Spindle type: CM3
• Morse of tailstock type: CM2
• Tailstock travel: 55 mm
• Not metric threads: 0.5-3 mm
• Nets not thumb: 8-44 TPI
• The transversal carriage stroke: 80 mm
• Cart race: 290 mm
• Net weight / gross: 65/70 kg
• Machine dimensions: 950 x 390 x 350 mm

Comes with:

• 3-jaw chuck Ø 100 mm Chuck

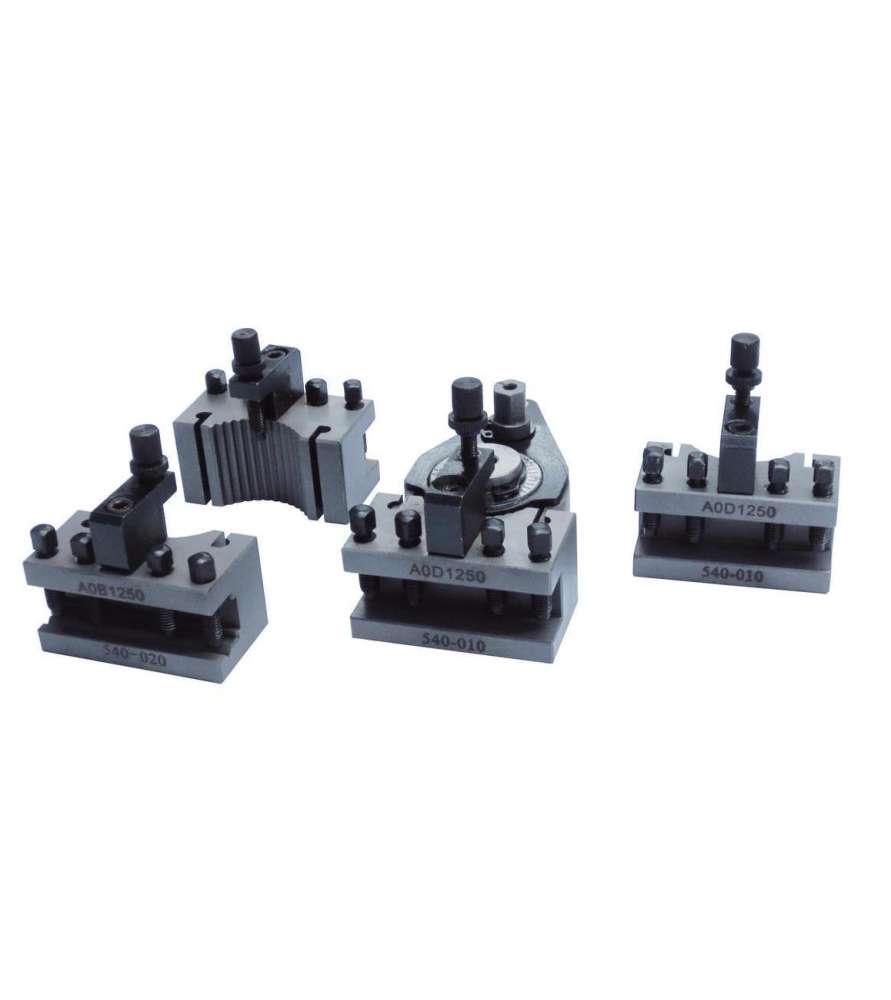

• Turret 4 positions
• Tailstock CM3
• Tailstock CM2
• The Chuck guard
• Chip tray
• Speed ​​change
• Service keys
