Metal lathe Bernardo Profi 400 V - 230V

1,245.83 € Tax included

Including €2.50 for ecotax

Reference: BPROFI400V

Thanks to theoptimal quality-price ratio, This model is perfect for the modelers and the DIY.

Quantity
In stock, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

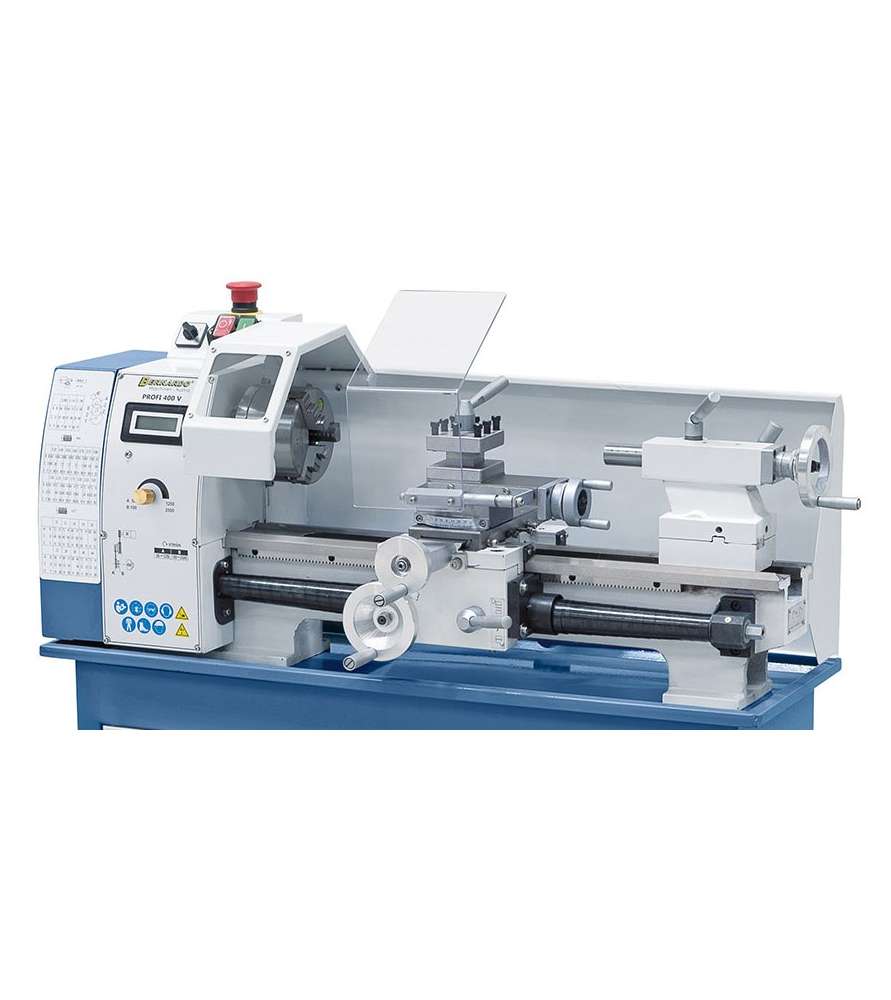

This Bernardo Profi 400V metal lathe is a machine designed for machining steel, non-ferrous materials and plastics

This lathe is ideal for multiple uses: facing, turning, turning, tapping, etc.

The advantages of the Profi 400 V metal lathe :

  • Standard with lead screw for tapping and automatic longitudinal feed
  • Standard with interchangeable gears for metric pitch threads
  • High concentricity accuracy of the spindle nose (less than 0.009 mm) thanks to quality bearings
  • Ergonomic arrangement of control elements
  • Compact machine, optimal price-performance ratio
  • Speed ​​regulation by electronic variator for optimal adaptation of the cutting speed to the workpiece

The metal lathe comes with:

3-jaw DK 11-100 mm chuck, 4-position turret, centering drills, chuck protection, interchangeable gears, digital speed indicator, rear guard, chip tray and service tools.

The characteristics of the Bernardo Profi 400V metal lathe:

  • Distance between points: 400 mm
  • Point height: 100 mm
  • Diameter on the bench: 200 mm
  • Spindle bore: 20mm
  • Spindle taper: MK 3
  • Speed ​​range, continuous: 50-1250 / 100-2500 U / min
  • Longitudinal feed: (3) from 0.089 to 0.198 mm/rev
  • metric threads: (14) 0.3 - 3 mm
  • Spindle travel: 50 mm
  • Tailstock taper: MK 2
  • Motor power output S1 100%: 0.60 kW / 230 V
  • S6 40% motor power input: 0.80 kW / 230 V
  • Machine dimensions (L x D x H): 930 x 400 x 380 mm
  • Weight: 65 kg
  • Delivered without base
