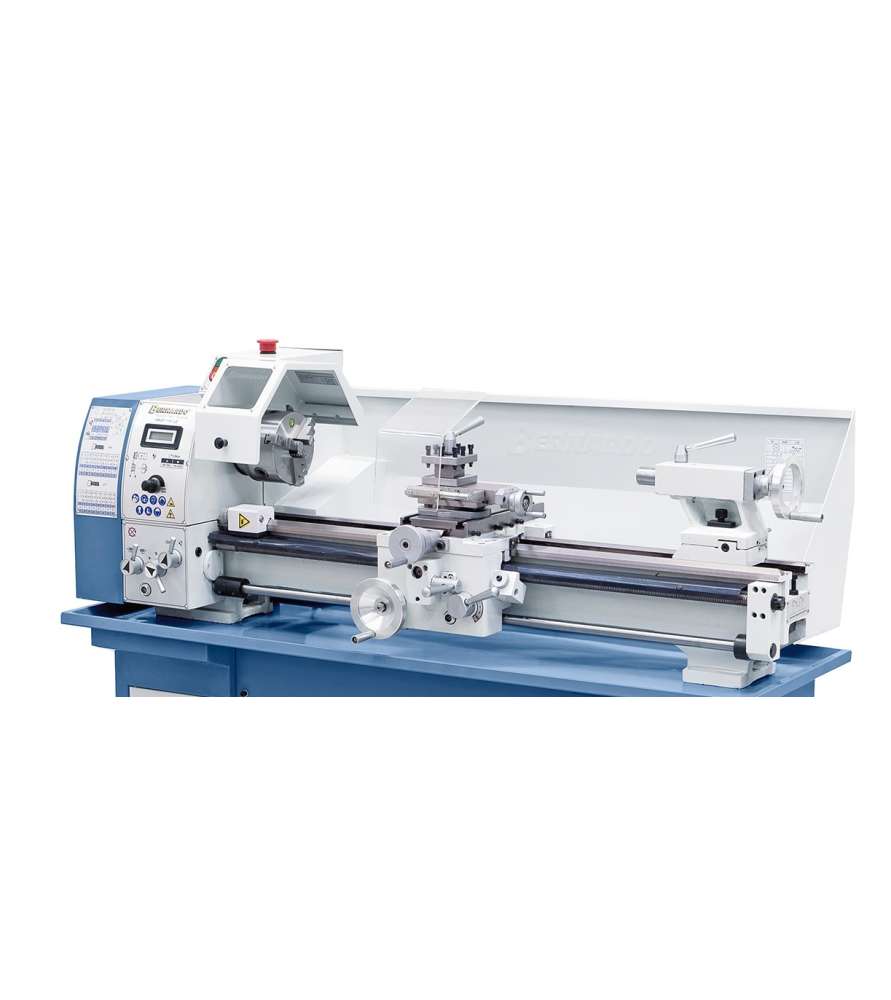

The Bernardo Profi 750LZ metal lathe is equipped with a powerful asynchronous motor!

Its speed is variable by electronic dimmer.

Advantages of the Bernardo Profi 750LZ electronic metal lathe:

• Digital display of speed
• Invertor for left-hand thread
• Double prism bench hardened and ground

Technical characteristics of Bernardo Profi 750LZ:

• Entrepointes: 750 mm
• Ø max. on the bench: 250 mm
• Width of the bench: 135 mm
• Spindle bore: 26 mm
• Spindle cone: CM4
• Variable speeds: 50 - 1000 and 100 - 2000 rpm
• Longitudinal feed: 0.08 - 0.48 mm / l
• Cross feed: 0.03 - 0.156 mm / l
• Metric thread: 0.2 - 3.5 mm
• Inch thread: 8 - 56 TPI
• Sliding head sheath stroke: 75 mm
• Cone Doll Mobile: CM2
• Motor: 0.75 KW / 230 V
• Dimensions: 1350 x 600 x 460 mm
• Weight: 145 kg

The Bernardo Profi 750LZ metal lathe with:

• 3-jaw chuck DK11-125 mm
• Chuck mounting flange 125 mm
• Fixed counter-points
• Interchangeable sprockets
• 4-position turret
• Torque limiter
• Micrometric longitudinal guide
• Tool turret on longitudinal slide
• Digital speed indicator
• Apparatus to fall in the pitch for threading
• Chuck protection
• Rear cover
• Screw protector
• Service tools
