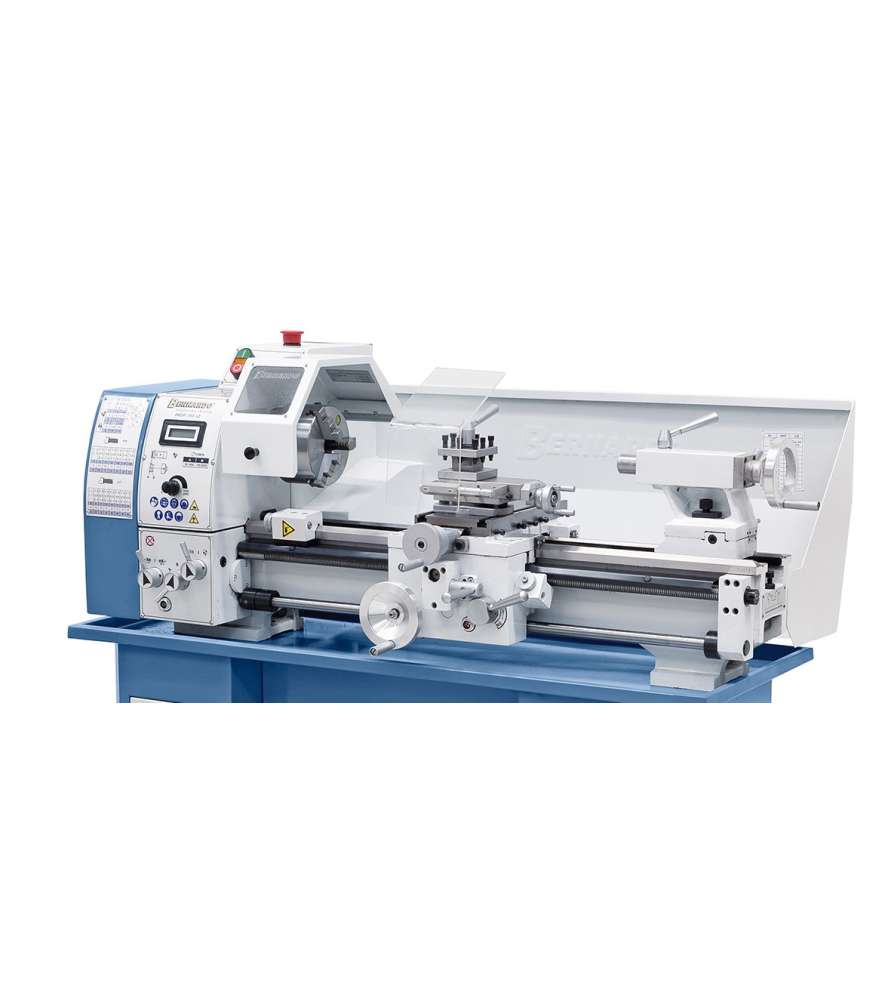

Electronic metal lathe Bernardo Profi 550LZ
  • Electronic metal lathe Bernardo Profi 550LZ
  • Electronic metal lathe Bernardo Profi 550LZ
  • Electronic metal lathe Bernardo Profi 550LZ

Electronic metal lathe Bernardo Profi 550LZ

2,785.00 €

Including €2.50 for ecotax

Reference: BPROFI550LZ

This electronic metal lathe Bernardo Profi 550 LZ has an excellent quality-price ratio !

Quantity
delivery within 15 to 20 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

This Bernardo Profi 550LZ electronic metal lathe has many options!

This model is indeed also provided with a series torque limiter, and a micrometric longitudinal guide. It is also possible to add a FA 16 milling head later.

Advantages of the Bernardo Profi 550 LZ metal lathe:

  • Asynchronous motor
  • Variable speed by electronic dimmer
  • Digital display of speed
  • Invertor for left-hand thread
  • Double prism bench hardened and ground

The lathe comes with: a 3-jaw chuck Ø 125 mm, a carriage, a pinion set, a counter-tip, a protective plate and a tool turret

Bernardo Profi 550LZ electronic lathe features:

  • Warehouses: 550 mm
  • Ø max. on the bench: 250 mm
  • Width of the bench: 135 mm
  • Spindle bore: 26 mm
  • Spindle cone: CM4
  • Variable speed: 50 to 2000 rpm
  • Longitudinal feed: 0.08 - 0.48 mm / l
  • Cross feed: 0.03 - 0.156 mm / l
  • Metric thread: 0.2 - 3.5 mm
  • Inch thread: 8 - 56 TPI
  • Sliding head sheath stroke: 75 mm
  • Cone Doll Mobile: CM2
  • Motor: 0.75 KW / 230 V
  • Dimensions: 1150 x 610 x 450 mm
  • Weight: 130 kg
