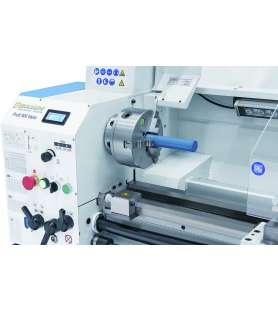

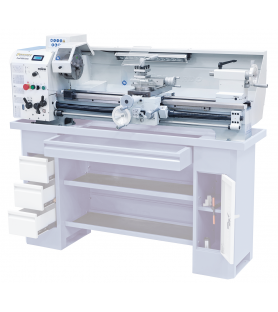

Advantages of the Bernardo Profi 900 Vario Metal Lathe - 400V :

• Three -phase motor with frequency inverter for higher performance and high torque
• Complete with 38 mm spindle bore to allow processing of large shaft diameters
• Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
• Wide range of applications: precision mechanics, training and education, etc.
• Feed settings are logically arranged, easy to control with top accuracy
• Suitable for processing of steel, non-ferrous metals and plastics
• Prism bed with large support surface, inductively hardened and polished
• Precise spindle bearing with two adjustable precision taper roller bearings
• High concentricity of spindle nose – better than 0.015 mm
• Practical, solid machine with leadscrew and feed rod

The Bernardo Profi 900 Vario Metal Lathe - 400V comes with :

• 3-jaw chuck DK11-160 mm / D4
• Dead centers
• Change gears
• 4-way tool post holder
• Safety clutch
• Micrometer longitudinal fence
• Cross slide with top support
• Frequency inverter
• Digital speed indication
• Thread dial
• LED machine light
• Chuck guard
• Splash guard
• Leadscrew cover
• Tools

Technical specifications of the Bernardo Profi 900 Vario Metal Lathe - 400V :

• Distance between centers : 900 mm
• Center height : 160 mm
• Swing over bed : 320 mm
• Spindle bore : 38 mm
• Spindle nose fixture : DIN 55029, D1-4
• Speed range, stepless : 75 – 500 / 300 – 2000 rpm
• Longitudinal feed : (15) 0,07 – 1,0 mm/rev.
• Cross feed : (15) 0,017 – 0,25 mm/rev.
• Metric thread : (18) 0,2 – 3,5 mm
• Inch thread : (21) 8 – 56 threads/1“
• Travel of tailstock sleeve : 100 mm
• Taper of tailstock sleeve : MT 3
• Motor power output S1 100% : 1,5 KW / 400 V
• Motor power input S6 40% : 2,2 kW / 400 V
• Machine dimension (W x D x H)* : 1650 x 650 x 600 mm
• Weight approx. : 240 kg
• * without stand
