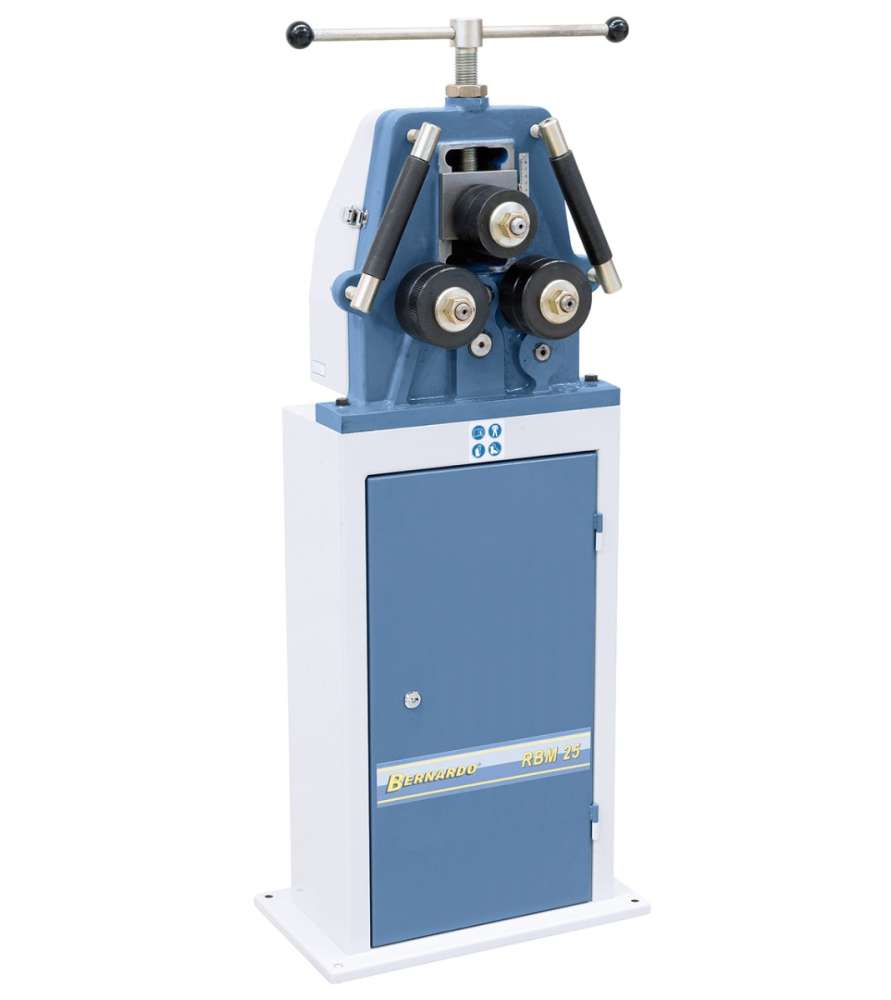

Advantages of the Bernardo RBM25 manual roller bender:

• Usable for bending pipes and profile materials of steel, aluminum, brass, ...
• Manually driven, an auxiliary transmission helps during the bending operation
• Standard rolls for round bending of square materials included
• The adjustment of the upper roller is done by means of a graduation in mm offering an easy reading
• Hardened and ground bending rolls

Technical characteristics of the Bernardo RBM25 manual roller bender:

• Minimum bending diameter: 500 m/m
• Shaft diameter: 30mm
• Upper roller diameter: 98 mm
• Lower roller diameter: 118 mm
• Solid tube capacity: Ø16 mm max
• Capacity hollow tubes: Ø16 mm x 1 mm
• Solid profile capacity: 20 x 20 mm x 1 mm
• Weight: 165kg

Solid profile capacity:

• 20x20mm (Ø bending 500mm)
• 30x10mm (Ø bending 500mm)
• 50x10mm (Ø bending 400mm)
